2014 Usage by Energy Source

This series of graphs represents one of several household thermodynamic tracking projects that are being conducted at The Ravina Project. These data are collected every day from the utility meters. For the purposes of these graphs the power used from all sources is converted to kilowatt hours (kWh). This allows for a direct comparison of the household usage among energy sources.

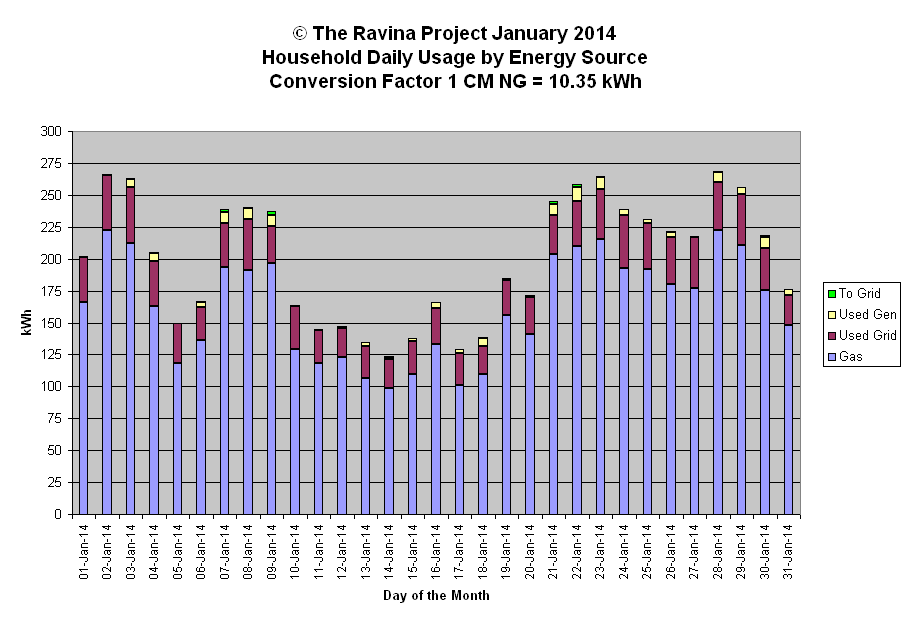

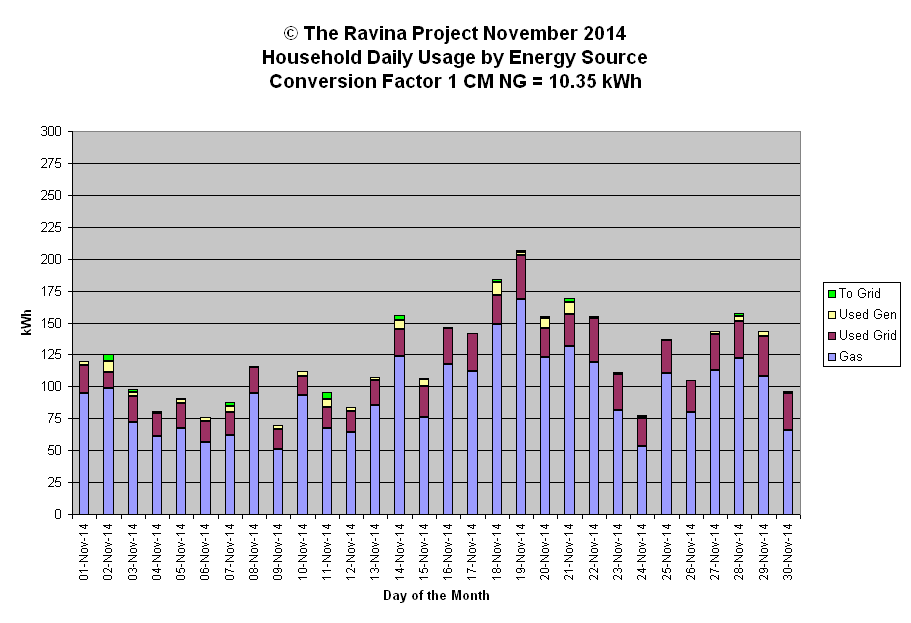

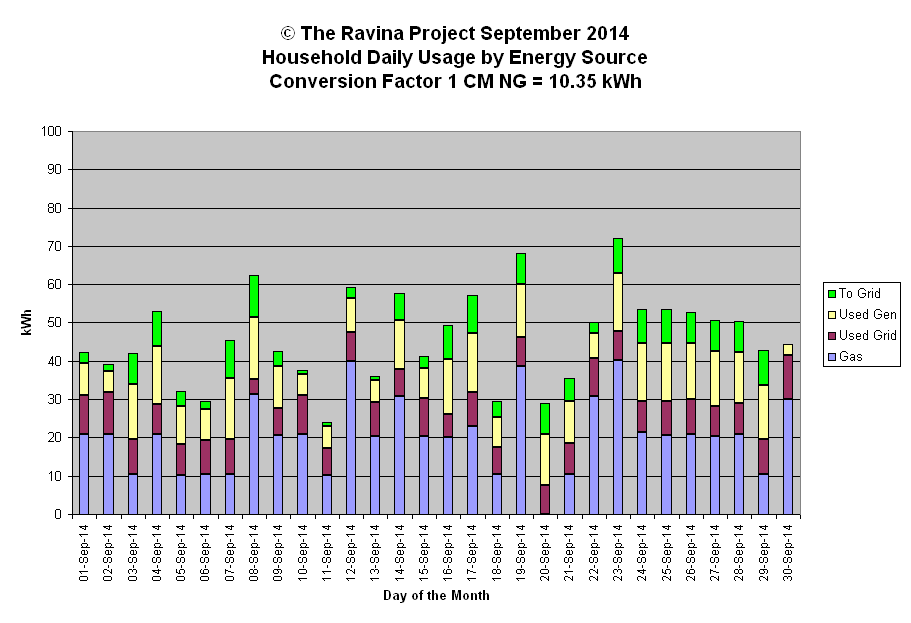

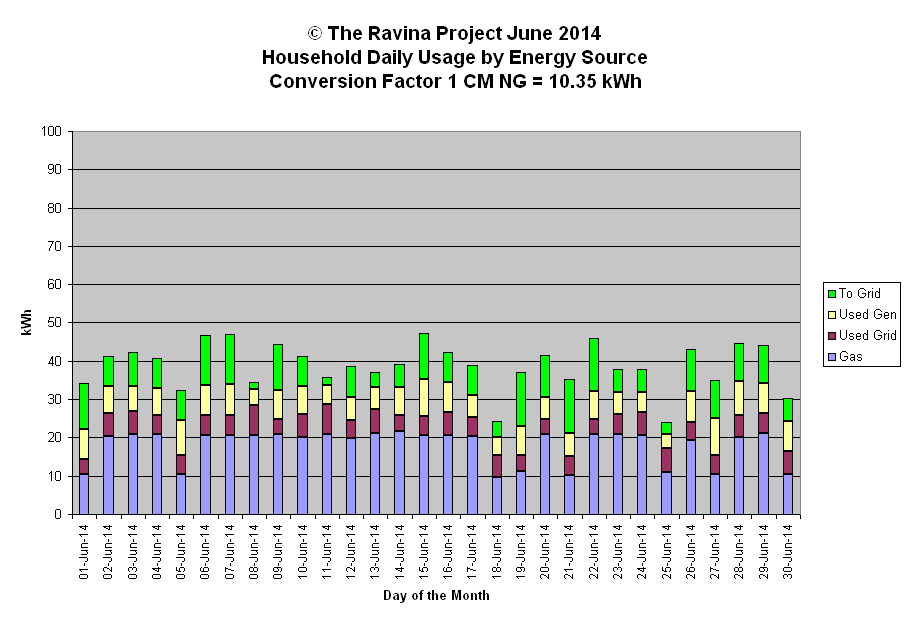

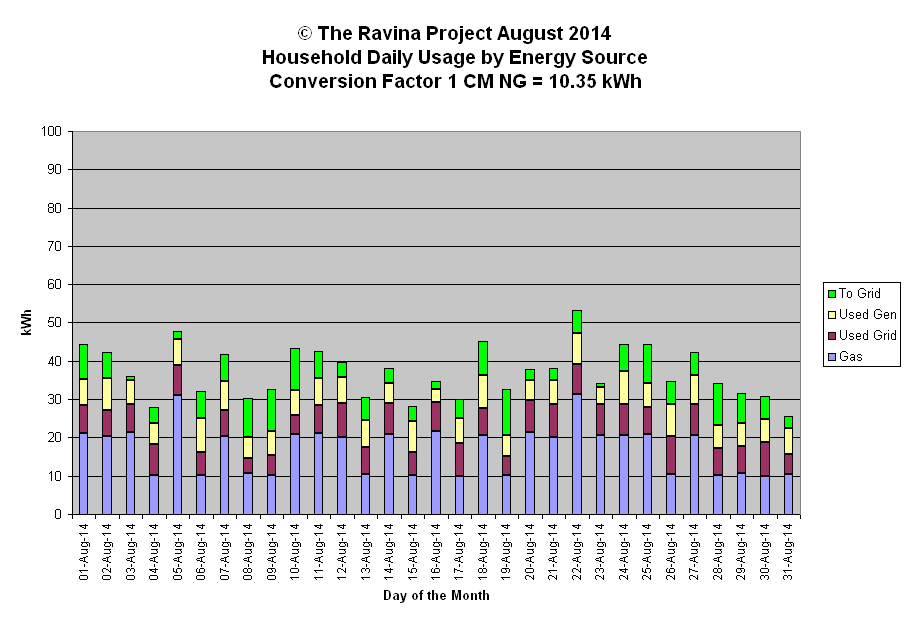

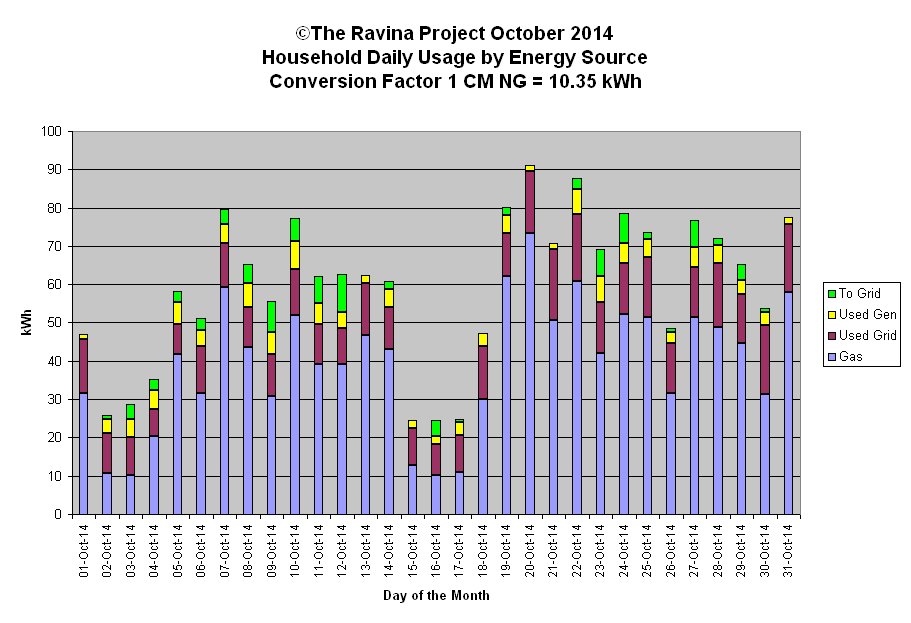

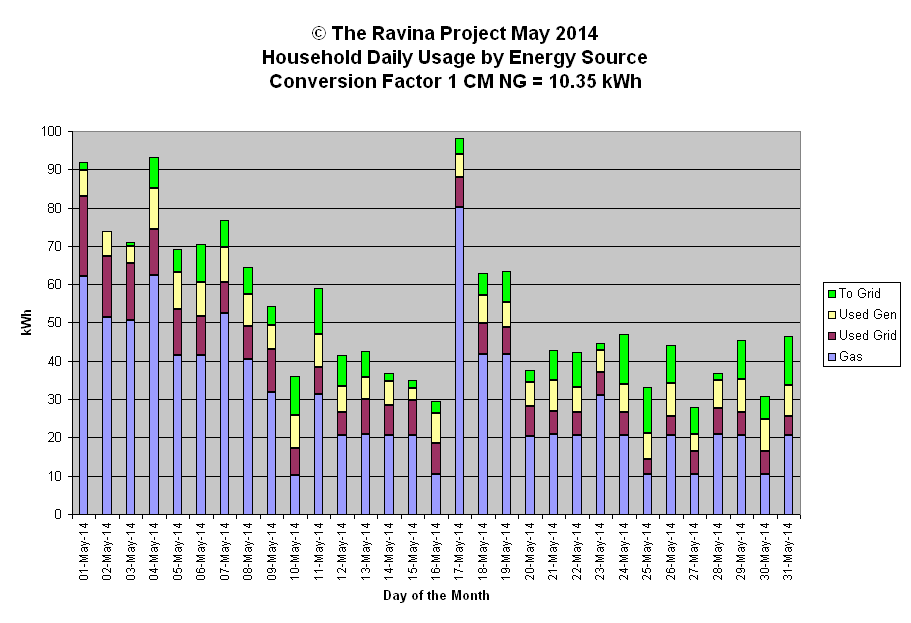

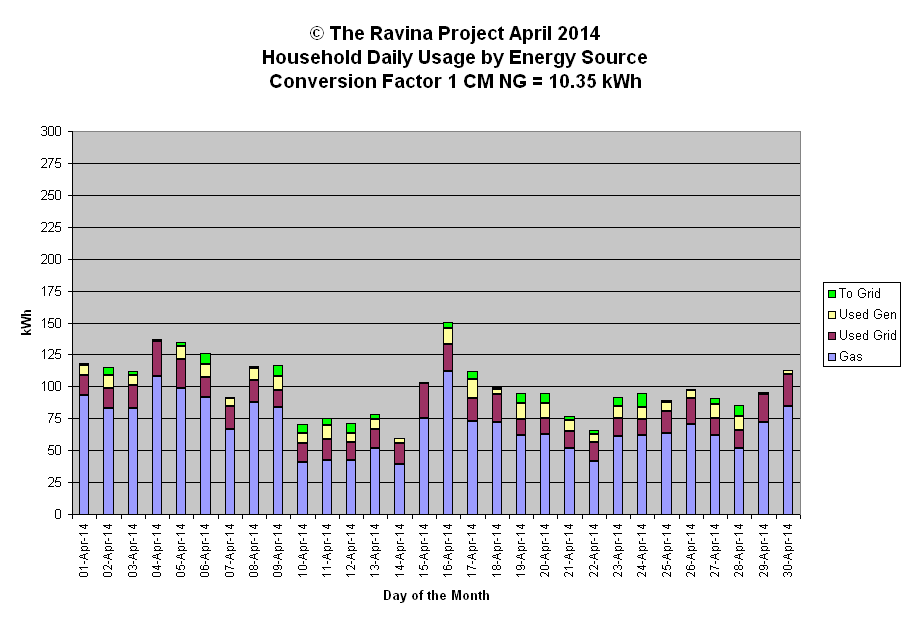

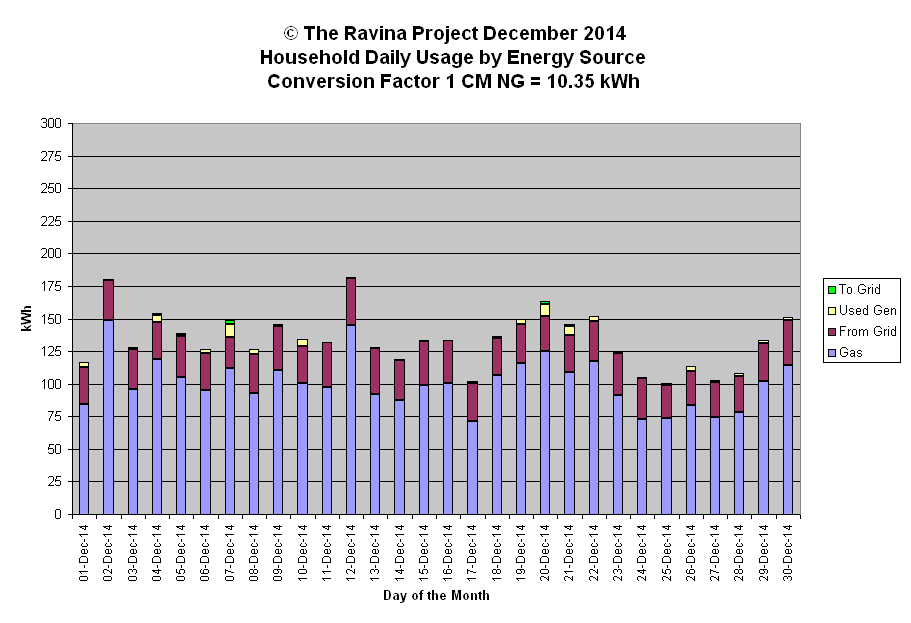

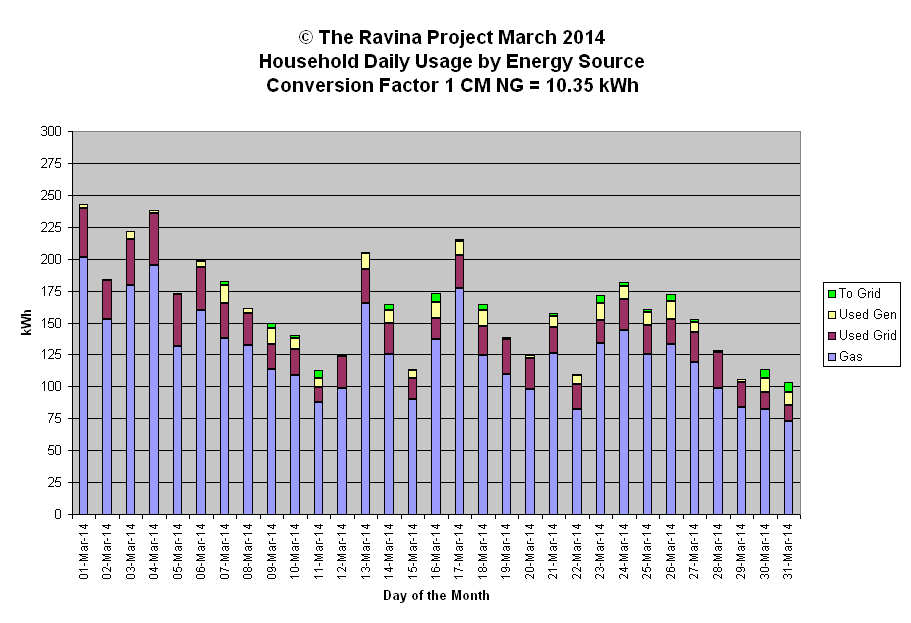

The following graphs track household power usage by energy source. Inputs are broken out by three sources: gas, grid and generated. The total length of the bar above zero represents the total amount of power used by the household on that day expressed in kWh. Note the generated value is a net value. The amount pushed back to the grid is represented in Green. We now have a bi-directional utility meter which we read every day. It allows us to account for the power we generate but can't use.

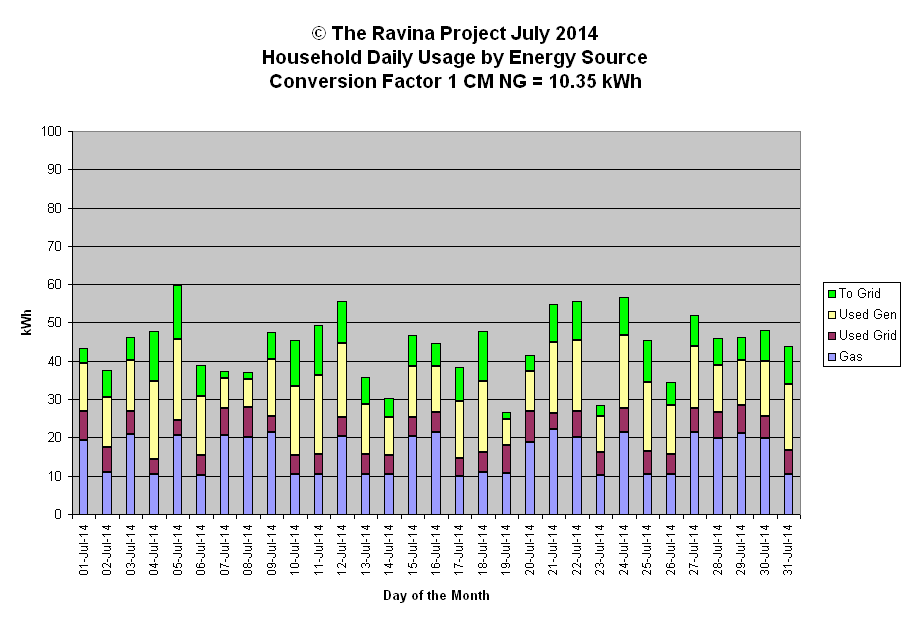

Note: the high energy use months have the vertical axis to 300. In lower energy months the axis is changed to 100 allowing for a better view of the breakout by energy source.
