Solar Data June 2008

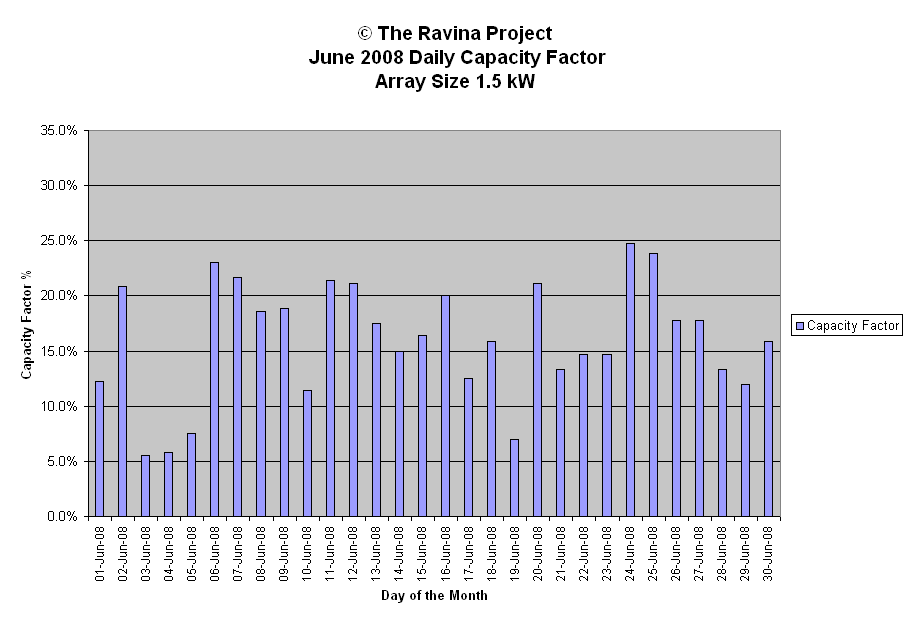

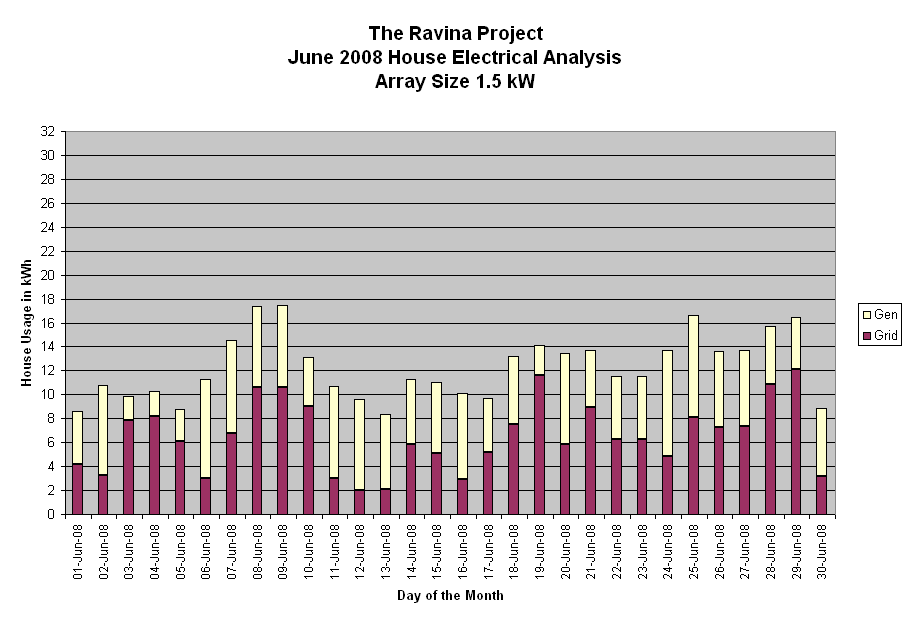

This page contains daily data and graphs of electrical energy use, the daily amount generated and Capacity Factor. Gen refers to the amount generated from the solar array and Grid is the amount we used from the grid.
| June 2008 Energy Generation Analysis | ||||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Jun-08 | 4.4 | pt sun oc am pm sun late | 1534 | 914 | 3.2 | 12.2% | Generation Analysis kWh | |||
| 2-Jun-08 | 7.5 | pt sun pt cld | 1385 | 915 | 5.5 | 20.8% | ||||
| 3-Jun-08 | 2.0 | oc rain sun intervals | 1203 | 917 | 1.5 | 5.6% | Total | 173.3 | ||
| 4-Jun-08 | 2.1 | oc | 752 | 918 | 1.5 | 5.8% | Average | 5.8 | ||
| 5-Jun-08 | 2.7 | oc rain sun intervals | 1094 | 918 | 2.0 | 7.5% | Median | 5.8 | ||
| 6-Jun-08 | 8.3 | sun hot cirrus | 1015 | 920 | 6.0 | 23.1% | Stdev | 1.9 | ||
| 7-Jun-08 | 7.8 | sun hz warm | 1074 | 921 | 5.6 | 21.7% | ||||
| 8-Jun-08 | 6.7 | sun hz am rain pm | 1378 | 921 | 4.8 | 18.6% | WX short forms used | |||
| 9-Jun-08 | 6.8 | sun hz am cld rain pm | 964 | 922 | 4.9 | 18.9% | ||||
| 10-Jun-08 | 4.1 | pt sun rain | 1457 | 924 | 3.0 | 11.4% | oc - overcast | |||
| 11-Jun-08 | 7.7 | sun pt cld | 1460 | 924 | 5.6 | 21.4% | diff - diffuse light | |||
| 12-Jun-08 | 7.6 | oc am sun pm | 1438 | 925 | 5.5 | 21.1% | brks - breaks | |||
| 13-Jun-08 | 6.3 | sun am oc pm | 1021 | 925 | 4.5 | 17.5% | br - bright | |||
| 14-Jun-08 | 5.4 | diff pt sun am sun pm | 1279 | 926 | 3.9 | 15.0% | cld - cloud | |||
| 15-Jun-08 | 5.9 | sun am oc rain pm | 1298 | 926 | 4.2 | 16.4% | hi - high altitude | |||
| 16-Jun-08 | 7.2 | sun am rain pm | 1388 | 926 | 5.2 | 20.0% | hz - haze pollution or cirrus | |||
| 17-Jun-08 | 4.5 | pt sun am oc rain pm | 1622 | 927 | 3.2 | 12.5% | pds - periods | |||
| 18-Jun-08 | 5.7 | sun am pt sun pm | 1548 | 927 | 4.1 | 15.8% | pt - part | |||
| 19-Jun-08 | 2.5 | oc rain | 675 | 926 | 1.8 | 6.9% | wx - weather | |||
| 20-Jun-08 | 7.6 | sun pt cld | 1455 | 927 | 5.5 | 21.1% | sml - small | |||
| 21-Jun-08 | 4.8 | sun am oc rain pm | 1117 | 927 | 3.5 | 13.3% | mod - moderate | |||
| 22-Jun-08 | 5.3 | sun am rain pm | 1293 | 927 | 3.8 | 14.7% | ||||
| 23-Jun-08 | 5.3 | sun am rain pm | 1429 | 926 | 3.8 | 14.7% | Peak Watt Analysis W | |||
| 24-Jun-08 | 8.9 | sun pt cld | 1298 | 926 | 6.4 | 24.7% | ||||
| 25-Jun-08 | 8.6 | sun | 1103 | 926 | 6.2 | 23.9% | Maximum | 1622 | ||
| 26-Jun-08 | 6.4 | am oc sun pm | 1136 | 925 | 4.6 | 17.8% | Minimum | 675 | ||
| 27-Jun-08 | 6.4 | oc am sun hz pm | 1139 | 925 | 4.6 | 17.8% | Average | 1262 | ||
| 28-Jun-08 | 4.8 | rain am sun hz pm | 1377 | 925 | 3.5 | 13.3% | Median | 1298 | ||
| 29-Jun-08 | 4.3 | oc rain am pt sun pm | 1530 | 924 | 3.1 | 11.9% | Std deviation | 232 | ||
| 30-Jun-08 | 5.7 | oc am pt sun pm | 1384 | 924 | 4.1 | 15.8% | ||||
| Efficiency Analysis Wh/min/kW | ||||||||||
| Monthly: | 173.3 | 27704 | Capacity Factor Analysis | |||||||
| YTD: | 866.9 | 136634 | Maximum | 6.4 | ||||||
| Maximum | 24.7% | Minimum | 1.5 | |||||||
| Minimum | 5.6% | Average | 4.2 | |||||||
| Average | 16.0% | Median | 4.2 | |||||||
| Median | 16.1% | Std Deviation | 1.4 | |||||||
| Std Deviation | 5.3% | |||||||||
