Solar Data April 2008

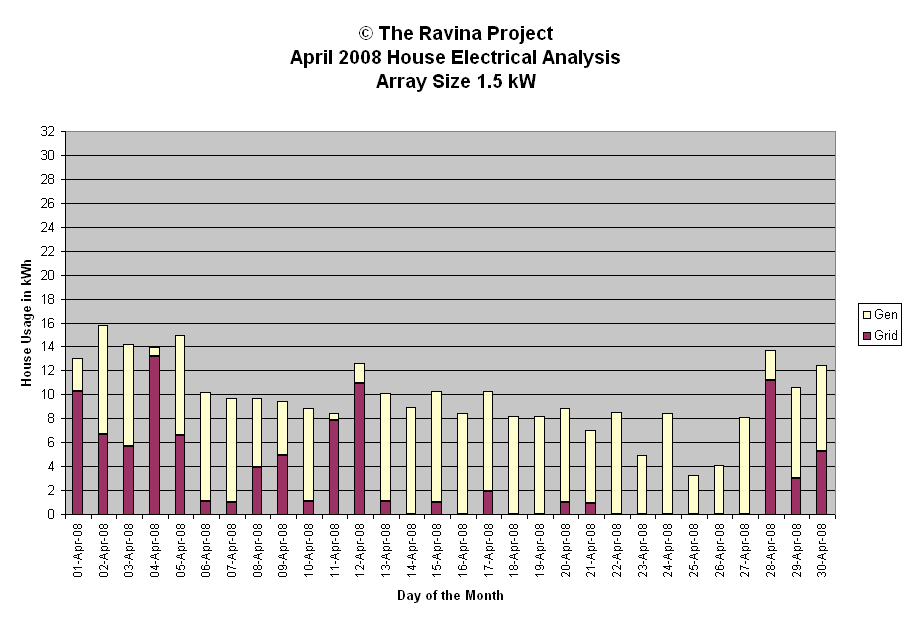

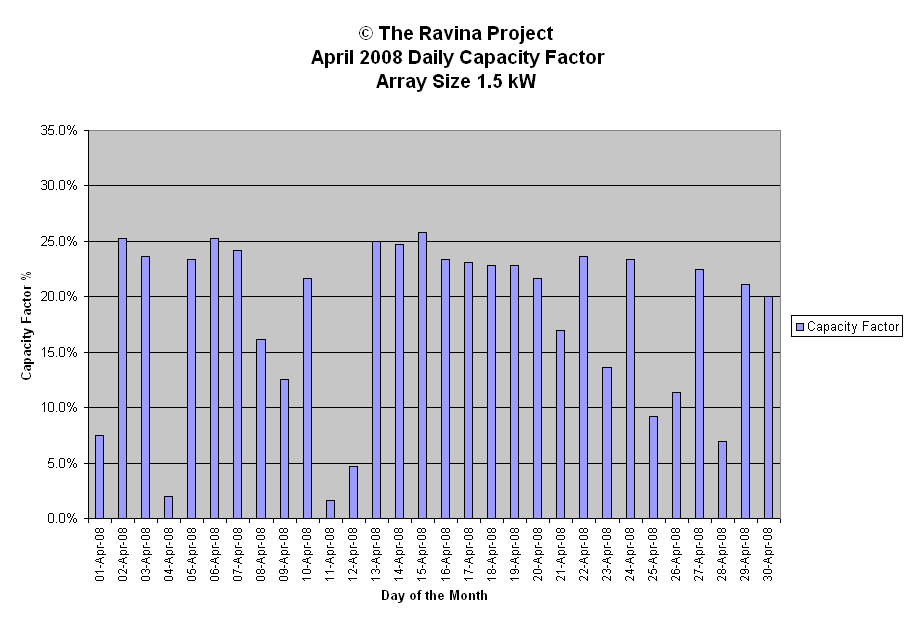

This page contains daily data and graphs of electrical energy use, the daily amount generated and Capacity Factor. Gen refers to the amount generated from the solar array and Grid is the amount we used from the grid.
| April 2008 Energy Generation Analysis | ||||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Apr-08 | 2.7 | wind pt sun am oc pm | 1490 | 767 | 2.3 | 7.5% | Generation Analysis kWh | |||
| 2-Apr-08 | 9.1 | sun | 1277 | 770 | 7.9 | 25.3% | ||||
| 3-Apr-08 | 8.5 | sun mod cirrus hz | 1217 | 773 | 7.3 | 23.6% | Total | 196.4 | ||
| 4-Apr-08 | 0.7 | oc rain | 259 | 776 | 0.6 | 1.9% | Average | 6.5 | ||
| 5-Apr-08 | 8.4 | sun mod hz am pt cld pm | 1242 | 778 | 7.2 | 23.3% | Median | 8.0 | ||
| 6-Apr-08 | 9.1 | sun hz pm | 1246 | 782 | 7.8 | 25.3% | Stdev | 2.7 | ||
| 7-Apr-08 | 8.7 | oc diff am sun hz pm | 1238 | 785 | 7.4 | 24.2% | ||||
| 8-Apr-08 | 5.8 | oc rain am sun hz pm | 1341 | 788 | 4.9 | 16.1% | WX short forms used | |||
| 9-Apr-08 | 4.5 | oc rain am sun pt cld pm | 1239 | 790 | 3.8 | 12.5% | ||||
| 10-Apr-08 | 7.8 | sun mod hz am pt cld pm | 1185 | 793 | 6.6 | 21.7% | oc - overcast | |||
| 11-Apr-08 | 0.6 | oc rain wind | 188 | 797 | 0.5 | 1.7% | diff - diffuse light | |||
| 12-Apr-08 | 1.7 | oc rain br diff pds | 877 | 800 | 1.4 | 4.7% | brks - breaks | |||
| 13-Apr-08 | 9.0 | sun am pt cld pm | 1617 | 802 | 7.5 | 25.0% | br - bright | |||
| 14-Apr-08 | 8.9 | sun pt cld | 1324 | 805 | 7.4 | 24.7% | cld - cloud | |||
| 15-Apr-08 | 9.3 | sun | 1205 | 808 | 7.7 | 25.8% | hi - high altitude | |||
| 16-Apr-08 | 8.4 | sun mod hz | 1190 | 810 | 6.9 | 23.3% | hz - haze pollution or cirrus | |||
| 17-Apr-08 | 8.3 | sun cirrus hz pt cld pm | 1440 | 814 | 6.8 | 23.1% | pds - periods | |||
| 18-Apr-08 | 8.2 | sun hz temp 23 C | 1078 | 817 | 6.7 | 22.8% | pt - part | |||
| 19-Apr-08 | 8.2 | sun mod hz pm | 1133 | 819 | 6.7 | 22.8% | wx - weather | |||
| 20-Apr-08 | 7.8 | sun mod hz am pt cld pm | 1446 | 822 | 6.3 | 21.7% | sml - small | |||
| 21-Apr-08 | 6.1 | sun hz (off grid = OG) | 1101 | 824 | 4.9 | 16.9% | mod - moderate | |||
| 22-Apr-08 | 8.5 | sun pristine OG | 1105 | 828 | 6.8 | 23.6% | ||||
| 23-Apr-08 | 4.9 | oc am sun pm OG | 1096 | 830 | 3.9 | 13.6% | Peak Watt Analysis W | |||
| 24-Apr-08 | 8.4 | sun mod hz OG | 1247 | 833 | 6.7 | 23.3% | ||||
| 25-Apr-08 | 3.3 | cld rain am sun pm OG | 1155 | 836 | 2.6 | 9.2% | Maximum | 1617 | ||
| 26-Apr-08 | 4.1 | cld am sun late pm OG | 1242 | 838 | 3.3 | 11.4% | Minimum | 188 | ||
| 27-Apr-08 | 8.1 | sun hz am mod hz pm OG | 1110 | 842 | 6.4 | 22.5% | Average | 1165 | ||
| 28-Apr-08 | 2.5 | oc rain | 613 | 844 | 2.0 | 6.9% | Median | 1228 | ||
| 29-Apr-08 | 7.6 | sun am pt cld pm cool | 1581 | 846 | 6.0 | 21.1% | Std deviation | 323 | ||
| 30-Apr-08 | 7.2 | sun am pt cld pm cool | 1476 | 849 | 5.7 | 20.0% | ||||
| Efficiency Analysis Wh/min/kW | ||||||||||
| Monthly: | 193.7 | 23499 | Capacity Factor Analysis | |||||||
| YTD: | 506.6 | 81494 | Maximum | 7.9 | ||||||
| Maximum | 25.8% | Minimum | 0.5 | |||||||
| Minimum | 1.7% | Average | 5.4 | |||||||
| Average | 18.6% | Median | 6.5 | |||||||
| Median | 22.5% | Std Deviation | 2.3 | |||||||
| Std Deviation | 7.5% | |||||||||
