Solar Data August 2008

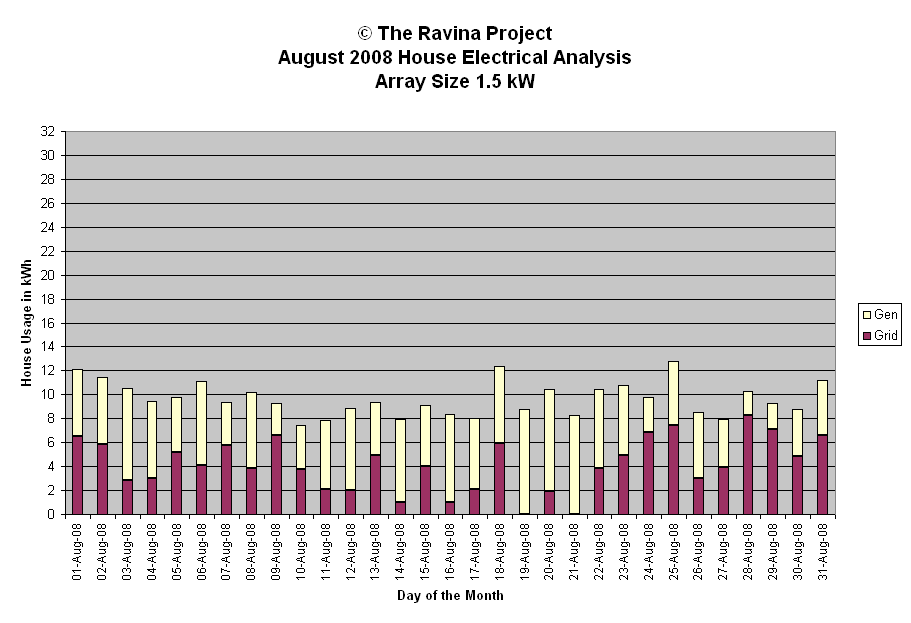

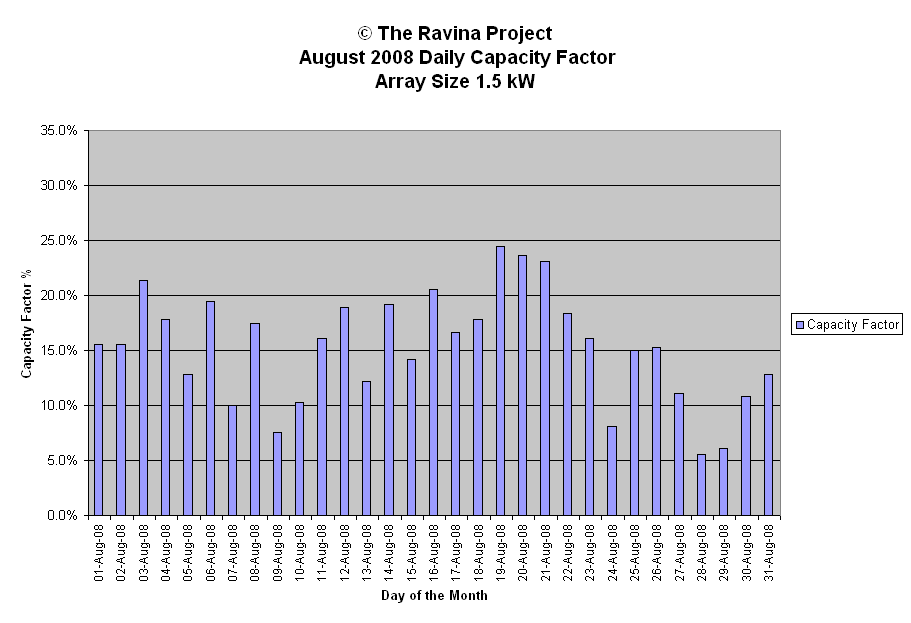

This page contains daily data and graphs of electrical energy use, the daily amount generated and Capacity Factor. Gen refers to the amount generated from the solar array and Grid is the amount we used from the grid.
| August 2008 Energy Generation Analysis | ||||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Aug-08 | 5.6 | sun pt cld | 1342 | 873 | 4.3 | 15.6% | Generation Analysis kWh | |||
| 2-Aug-08 | 5.6 | sun pt cld rain | 1404 | 871 | 4.3 | 15.6% | ||||
| 3-Aug-08 | 7.7 | sun pt cld | 1309 | 869 | 5.9 | 21.4% | Total | 170.5 | ||
| 4-Aug-08 | 6.4 | sun hz pt cld | 1004 | 867 | 4.9 | 17.8% | Average | 5.5 | ||
| 5-Aug-08 | 4.6 | mod hz sun oc pm | 1087 | 863 | 3.6 | 12.8% | Median | 5.6 | ||
| 6-Aug-08 | 7.0 | sun pt cld | 1136 | 861 | 5.4 | 19.4% | Stdev | 1.8 | ||
| 7-Aug-08 | 3.6 | oc rain pt sun | 1096 | 859 | 2.8 | 10.0% | ||||
| 8-Aug-08 | 6.3 | oc rain am pt cld pm | 1303 | 856 | 4.9 | 17.5% | WX short forms used | |||
| 9-Aug-08 | 2.7 | sun hz am oc rain pm | 1121 | 854 | 2.1 | 7.5% | ||||
| 10-Aug-08 | 3.7 | sun am oc rain pm | 1088 | 851 | 2.9 | 10.3% | oc - overcast | |||
| 11-Aug-08 | 5.8 | pt cld | 1220 | 849 | 4.6 | 16.1% | diff - diffuse light | |||
| 12-Aug-08 | 6.8 | sun cld pds | 1457 | 846 | 5.4 | 18.9% | brks - breaks | |||
| 13-Aug-08 | 4.4 | oc rain br diff am sun pm | 1221 | 844 | 3.5 | 12.2% | br - bright | |||
| 14-Aug-08 | 6.9 | sun pt cld | 1228 | 840 | 5.5 | 19.2% | cld - cloud | |||
| 15-Aug-08 | 5.1 | sun am rain pm | 1271 | 838 | 4.1 | 14.2% | hi - high altitude | |||
| 16-Aug-08 | 7.4 | sun pt cld | 1144 | 835 | 5.9 | 20.6% | hz - haze pollution or cirrus | |||
| 17-Aug-08 | 6.0 | sun cld hz | 1182 | 833 | 4.8 | 16.7% | pds - periods | |||
| 18-Aug-08 | 6.4 | sun am pt sun pm | 1112 | 830 | 5.1 | 17.8% | pt - part | |||
| 19-Aug-08 | 8.8 | pristine sun | 1128 | 828 | 7.1 | 24.4% | wx - weather | |||
| 20-Aug-08 | 8.5 | pristine sun | 1090 | 825 | 6.9 | 23.6% | sml - small | |||
| 21-Aug-08 | 8.3 | sun hi hz pm | 1100 | 822 | 6.7 | 23.1% | mod - moderate | |||
| 22-Aug-08 | 6.6 | sun am oc late pm | 1031 | 819 | 5.4 | 18.3% | ||||
| 23-Aug-08 | 5.8 | sun hi hz | 1061 | 816 | 4.7 | 16.1% | Peak Watt Analysis W | |||
| 24-Aug-08 | 2.9 | cld am rain sun pm * | 1071 | 813 | 2.4 | 8.1% | ||||
| 25-Aug-08 | 5.4 | sun pt cld * | 1333 | 811 | 4.4 | 15.0% | Maximum | 1457 | ||
| 26-Aug-08 | 5.5 | sun hz * | 1122 | 808 | 4.5 | 15.3% | Minimum | 1004 | ||
| 27-Aug-08 | 4.0 | sun hz cld * | 1222 | 805 | 3.3 | 11.1% | Average | 1180 | ||
| 28-Aug-08 | 2.0 | cld sun brks oc rain pm * | 1316 | 803 | 1.7 | 5.6% | Median | 1132 | ||
| 29-Aug-08 | 2.2 | cld rain oc * | 1118 | 800 | 1.8 | 6.1% | Std deviation | 116 | ||
| 30-Aug-08 | 3.9 | pristine sun * | 796 | 3.3 | 10.8% | |||||
| 31-Aug-08 | 4.6 | pristine sun * | 1072 | 793 | 3.9 | 12.8% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 170.5 | 25878 | Capacity Factor Analysis | Maximum | 7.1 | |||||
| YTD: | 1235.3 | 190498 | Minimum | 1.7 | ||||||
| Maximum | 24.4% | Average | 4.4 | |||||||
| Minimum | 5.6% | Median | 4.5 | |||||||
| Average | 15.3% | Std Deviation | 1.4 | |||||||
| Median | 15.6% | |||||||||
| Std Deviation | 5.0% | |||||||||
