Solar Data August 2009

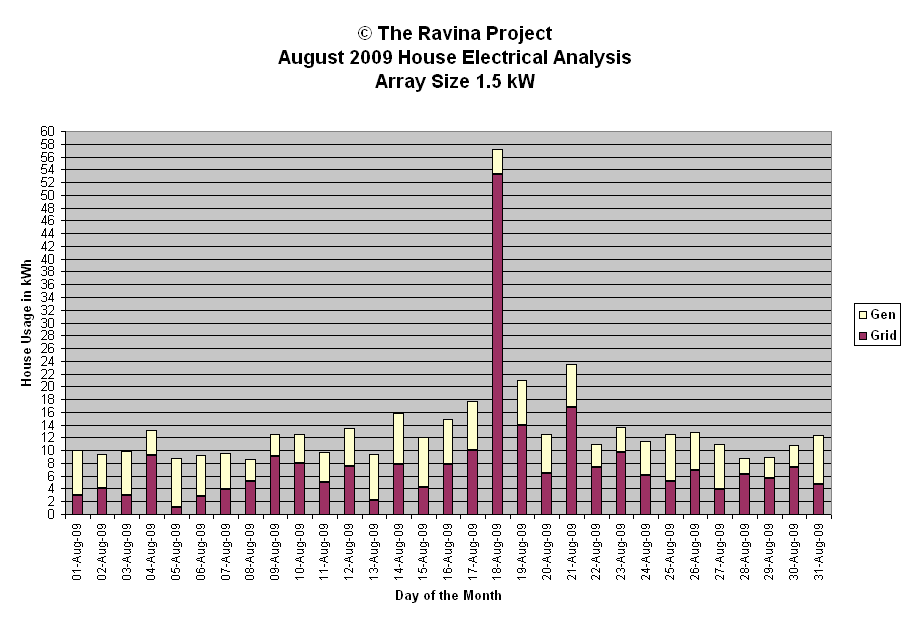

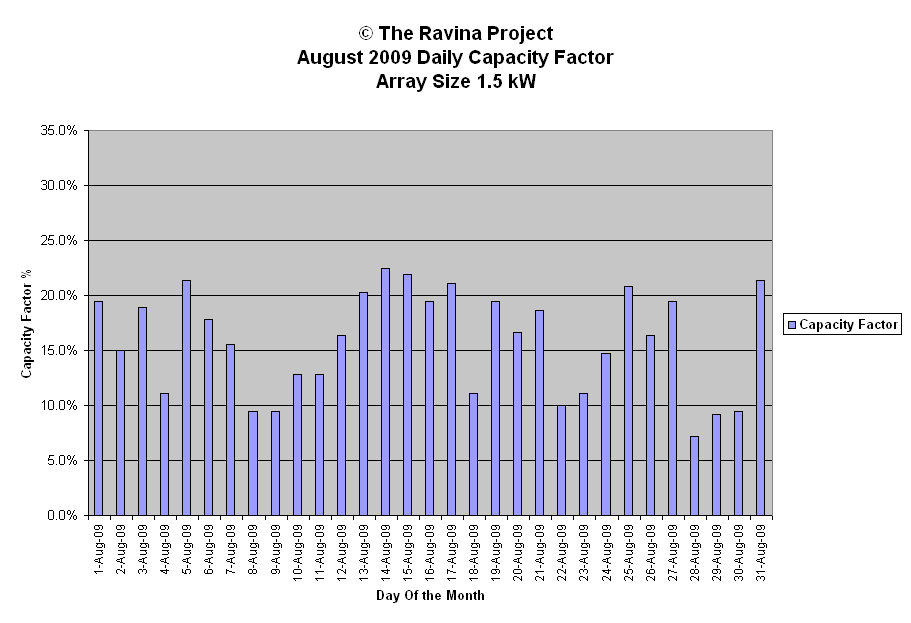

This page contains both generation data and a graph for the month.
| August 2009 Energy Generation Analysis | © Copyright The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Aug-09 | 7.0 | pt cld am sun pm | 1191 | 874 | 5.3 | 19.4% | Generation Analysis kWh | |||
| 2-Aug-09 | 5.4 | oc am pt cld pm | 1141 | 871 | 4.1 | 15.0% | ||||
| 3-Aug-09 | 6.8 | sun hz and diff | 1198 | 869 | 5.2 | 18.9% | Total | 176.7 | ||
| 4-Aug-09 | 4.0 | sun diff am rain oc pm | 1000 | 867 | 3.1 | 11.1% | Average | 5.7 | ||
| 5-Aug-09 | 7.7 | sun am pt cld pm | 1080 | 864 | 5.9 | 21.4% | Median | 5.9 | ||
| 6-Aug-09 | 6.4 | sun diff am pt cld pm | 1239 | 862 | 4.9 | 17.8% | Stdev | 1.7 | ||
| 7-Aug-09 | 5.6 | sun am pt cld pm | 1301 | 860 | 4.3 | 15.6% | ||||
| 8-Aug-09 | 3.4 | oc rain br diff am sun pm | 810 | 857 | 2.6 | 9.4% | WX short forms used | |||
| 9-Aug-09 | 3.4 | oc rain am sun pt cld pm | 1034 | 855 | 2.7 | 9.4% | ||||
| 10-Aug-09 | 4.6 | mixed sun/cld/diff | 1128 | 852 | 3.6 | 12.8% | oc - overcast | |||
| 11-Aug-09 | 4.6 | mixed sun/cld/diff | 1246 | 849 | 3.6 | 12.8% | diff - diffuse light | |||
| 12-Aug-09 | 5.9 | mixed sun cld | 1128 | 847 | 4.6 | 16.4% | brks - breaks | |||
| 13-Aug-09 | 7.3 | sun | 1022 | 844 | 5.8 | 20.3% | br - bright | |||
| 14-Aug-09 | 8.1 | sun | 1033 | 842 | 6.4 | 22.5% | cld - cloud | |||
| 15-Aug-09 | 7.9 | sun | 1044 | 839 | 6.3 | 21.9% | hi - high altitude | |||
| 16-Aug-09 | 7.0 | sun milky hz | 1647 | 836 | 5.6 | 19.4% | hz - haze pollution or cirrus | |||
| 17-Aug-09 | 7.6 | sun smog hz | 1020 | 834 | 6.1 | 21.1% | pds - periods | |||
| 18-Aug-09 | 4.0 | sun smog hz cld | 1406 | 831 | 3.2 | 11.1% | pt - part | |||
| 19-Aug-09 | 7.0 | oc cld am sun pm | 1250 | 828 | 5.6 | 19.4% | wx - weather | |||
| 20-Aug-09 | 6.0 | mixed sun cld late rain | 1244 | 825 | 4.8 | 16.7% | sml - small | |||
| 21-Aug-09 | 6.7 | cld oc am sun pt cld pm | 1325 | 823 | 5.4 | 18.6% | mod - moderate | |||
| 22-Aug-09 | 3.6 | sun am pt sun diff pm | 1417 | 820 | 2.9 | 10.0% | ||||
| 23-Aug-09 | 4.0 | sun diff cirrus oc | 1247 | 817 | 3.3 | 11.1% | Peak Watt Analysis W | |||
| 24-Aug-09 | 5.3 | sun cld oc | 1492 | 815 | 4.3 | 14.7% | ||||
| 25-Aug-09 | 7.5 | sun | 1072 | 812 | 6.2 | 20.8% | Maximum | 1647 | ||
| 26-Aug-09 | 5.9 | oc rain am pristine sun pm | 1425 | 809 | 4.9 | 16.4% | Minimum | 810 | ||
| 27-Aug-09 | 7.0 | sun cirrus | 1303 | 806 | 5.8 | 19.4% | Average | 1215 | ||
| 28-Aug-09 | 2.6 | sun diff oc | 901 | 803 | 2.2 | 7.2% | Median | 1238 | ||
| 29-Aug-09 | 3.3 | oc rain am pt sun pm | 1460 | 800 | 2.8 | 9.2% | Std deviation | 199 | ||
| 30-Aug-09 | 3.4 | oc am sun brks pm | 1622 | 797 | 2.8 | 9.4% | ||||
| 31-Aug-09 | 7.7 | sun | 1238 | 795 | 6.5 | 21.4% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 176.7 | 25903 | Capacity Factor Analysis | Maximum | 6.5 | |||||
| YTD: | 1300.6 | 190671 | Minimum | 2.2 | ||||||
| Maximum | 22.5% | Average | 4.5 | |||||||
| Minimum | 7.2% | Median | 4.8 | |||||||
| Average | 15.8% | Std Deviation | 1.3 | |||||||
| Median | 16.4% | |||||||||
| Std Deviation | 4.7% | |||||||||
