2012 Solar Data
Solar Data Home



Solar Data August 2012

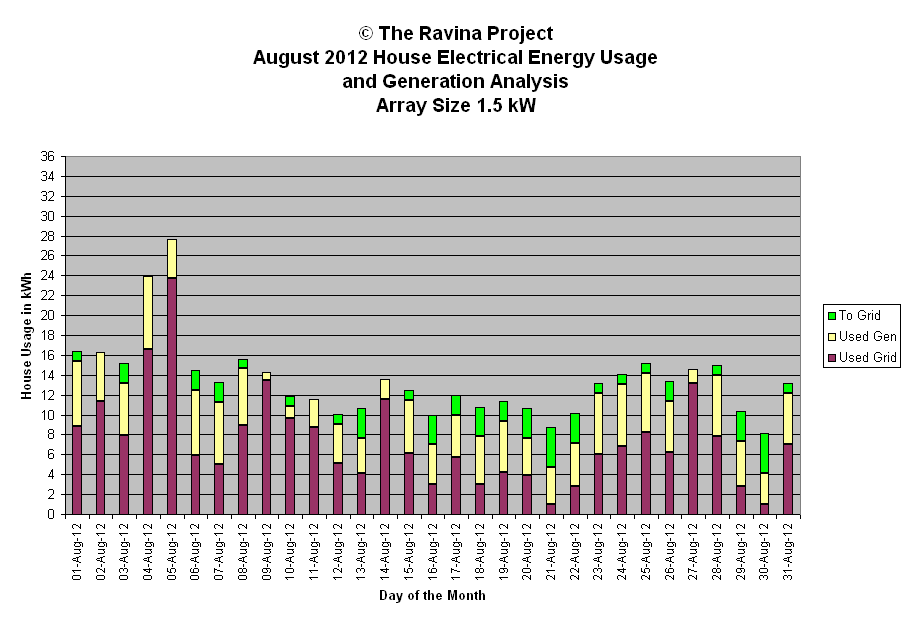

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


August 2012 Power Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
1-Aug-12 7.6 sun cld brks am 1275 873 5.8   Generation Analysis kWh
2-Aug-12 4.9 sun thn cld am oc pm 988 871 3.8
3-Aug-12 7.3 thn cld haze am 1233 869 5.6   Total 187.9
4-Aug-12 7.4 sun hz thn cld 957 866 5.7   Average 6.1
5-Aug-12 3.9 oc rain thn cld 1074 864 3.0   Median 7.0
6-Aug-12 8.5 pristine sun 1171 862 6.6   Stdev 2.1
7-Aug-12 8.2 pristine sun 1020 859 6.4
8-Aug-12 6.7 sun cld 1212 857 5.2   WX short forms used
9-Aug-12 0.9 oc dull sun brk 1044 853 0.7
10-Aug-12 2.2 oc dull l8 sun 921 851 1.7   oc - overcast
11-Aug-12 2.8 oc dull sun brk 1439 849 2.2   diff - diffuse light
12-Aug-12 4.9 sun / cld 1350 846 3.9   brks - breaks
13-Aug-12 6.5 sun / cld 1201 844 5.1   br - bright
14-Aug-12 2.0 oc sun / cld 816 841 1.6   cld - cloud
15-Aug-12 6.3 sun thn cld 1184 839 5.0   hi - high altitude
16-Aug-12 7.0 sun haze thn cld 1101 836 5.6   hz - haze pollution or cirrus
17-Aug-12 6.2 sun / cld 1372 832 5.0   pds - periods
18-Aug-12 7.8 pristine sun / cld mix 1222 830 6.3   pt - part
19-Aug-12 7.2 sun haze thn cld 1090 827 5.8   wx - weather
20-Aug-12 6.7 pristine sun / cld mix 1262 825 5.4   sml - small
21-Aug-12 7.7 sun 1058 822 6.2   mod - moderate
22-Aug-12 7.3 sun haze 1022 819 5.9
23-Aug-12 7.2 sun haze 999 817 5.9   Peak Watt Analysis W
24-Aug-12 7.2 sun haze 1017 814 5.9
25-Aug-12 7.0 sun haze 968 810 5.8   Maximum 1439
26-Aug-12 7.1 sun haze 1031 808 5.9   Minimum 601
27-Aug-12 1.4 oc rain 601 805 1.2   Average 1094
28-Aug-12 7.2 sun cld brk 1173 802 6.0   Median 1074
29-Aug-12 7.5 pristine sun 1185 800 6.3   Std deviation 171
30-Aug-12 7.1 sun haze 1026 797 5.9
31-Aug-12 6.2 sun thn cld hot 914 794 5.2   Efficiency Analysis Wh/min/kW

Monthly: 187.9     25882     Maximum 6.6
YTD: 1262.6           Minimum 0.7
            Average 4.9
            Median 5.6
            Std Deviation 1.7
