Solar Data August 2014

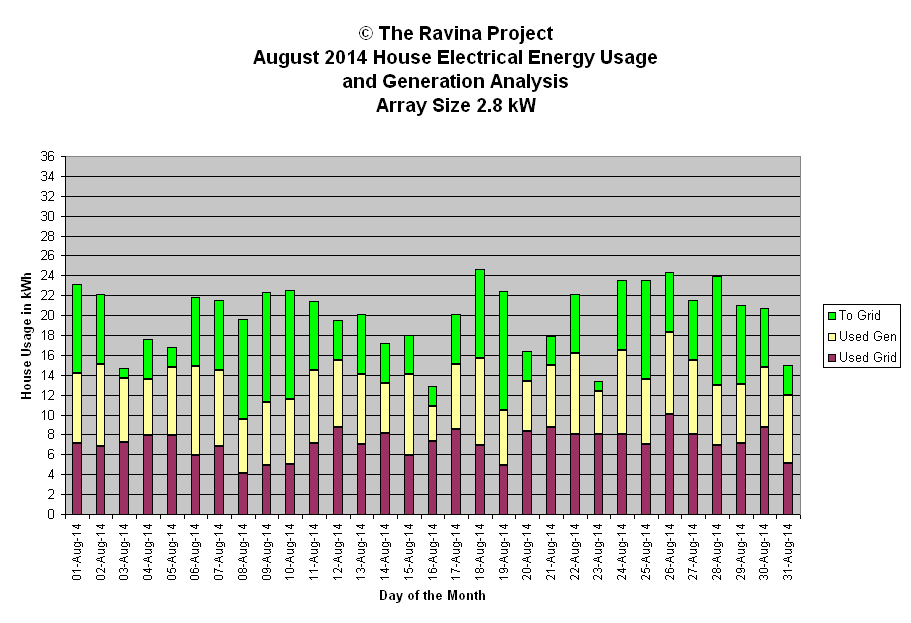

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


August 2014 Energy Generation Analysis The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity    Array Size 2.8  kW
  Gen   Watts   Wh/min/kW Factor
1-Aug-14 16.0 sun thn cld 2227 873 6.5 25.7%   Generation Analysis kWh
2-Aug-14 15.2 sun thn cld 2353 871 6.2 24.4%
3-Aug-14 7.5 thn cld diffuse sun 1503 869 3.1 12.1%   Total 398.8
4-Aug-14 9.7 sun oc cld rain mix 2489 866 4.0 15.6%   Average 12.9
5-Aug-14 8.8 oc rain sun mix 2334 864 3.6 14.1%   Median 13.9
6-Aug-14 15.9 sun thn cld hz mix 2716 862 6.6 25.6%   Stdev 3.6
7-Aug-14 14.6 sun hz thn cld mix 2166 859 6.1 23.5%
8-Aug-14 15.5 sun hz smoke 2197 857 6.5 24.9%   WX short forms used
9-Aug-14 17.3 sun haze smoke 2344 853 7.2 27.8%
10-Aug-14 17.5 thn cld hz am 2389 851 7.3 28.1%   oc - overcast
11-Aug-14 14.3 thn cld sun 2394 849 6.0 23.0%   diff - diffuse light
12-Aug-14 10.7 sun cld hz mix 2833 846 4.5 17.2%   brks - breaks
13-Aug-14 13.0 sun cld mix cool 3330 844 5.5 20.9%   br - bright
14-Aug-14 9.1 sun am cld pm 3270 841 3.9 14.6%   cld - cloud
15-Aug-14 12.1 sun cld mix 3311 839 5.2 19.5%   hi - high altitude
16-Aug-14 5.5 oc rain dull 2661 836 2.3 8.8%   hz - haze pollution or cirrus
17-Aug-14 11.5 sun cld mix 3155 832 4.9 18.5%   pds - periods
18-Aug-14 17.7 sun pt cld 2784 830 7.6 28.5%   pt - part
19-Aug-14 17.5 sun 2486 827 7.6 28.1%   wx - weather
20-Aug-14 8.1 cld oc sun brks 2637 825 3.5 13.0%   sml - small
21-Aug-14 9.2 sun cld mix rain pm 3096 822 4.0 14.8%   mod - moderate
22-Aug-14 14.1 sun thn cld mix 2931 819 6.1 22.7%
23-Aug-14 5.4 cld thn cld mix 1693 817 2.4 8.7%   Peak Watt Analysis W
24-Aug-14 15.5 sun thn cld mix 3156 814 6.8 24.9%
25-Aug-14 16.5 sun 2415 810 7.3 26.5%   Maximum 3330
26-Aug-14 14.3 sun cld hz mix 2451 808 6.3 23.0%   Minimum 1503
27-Aug-14 13.5 sun cld mix 3017 805 6.0 21.7%   Average 2640
28-Aug-14 17.0 pristine sun 2855 802 7.6 27.3%   Median 2637
29-Aug-14 13.9 oc am sun cld pm 3324 800 6.2 22.3%   Std deviation 454
30-Aug-14 12.0 thn cld oc sun mix 2584 797 5.4 19.3%
31-Aug-14 9.9 cld am sun pm 2724 794 4.5 15.9%   Efficiency Analysis Wh/min/kW

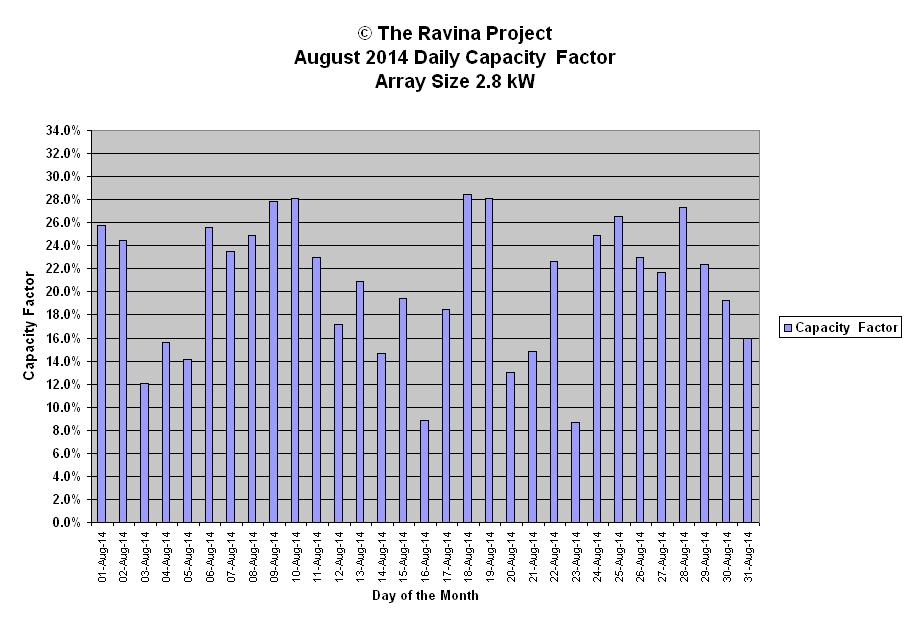

Monthly: 398.8     25882 Capacity Factor Analysis   Maximum 7.6
YTD: 2813.8             Minimum 2.3
        High 28.5%   Average 5.5
        Low 8.7%   Median 6.0
        Average 20.7%   Std Deviation 1.6
        Median 22.3%
        Std Dev 5.8%
