2009 Solar Data
Solar Data Home



Solar Data December 2009

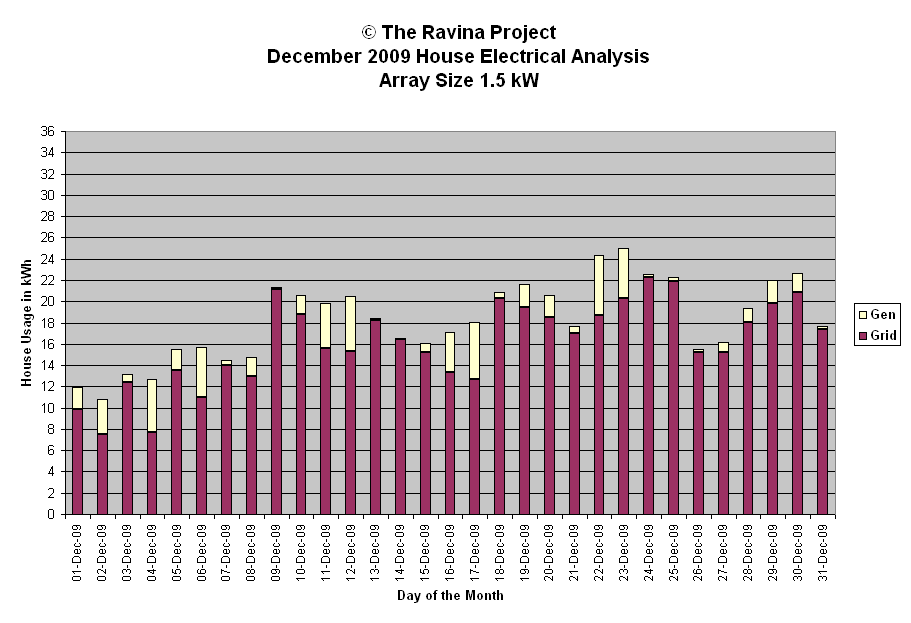

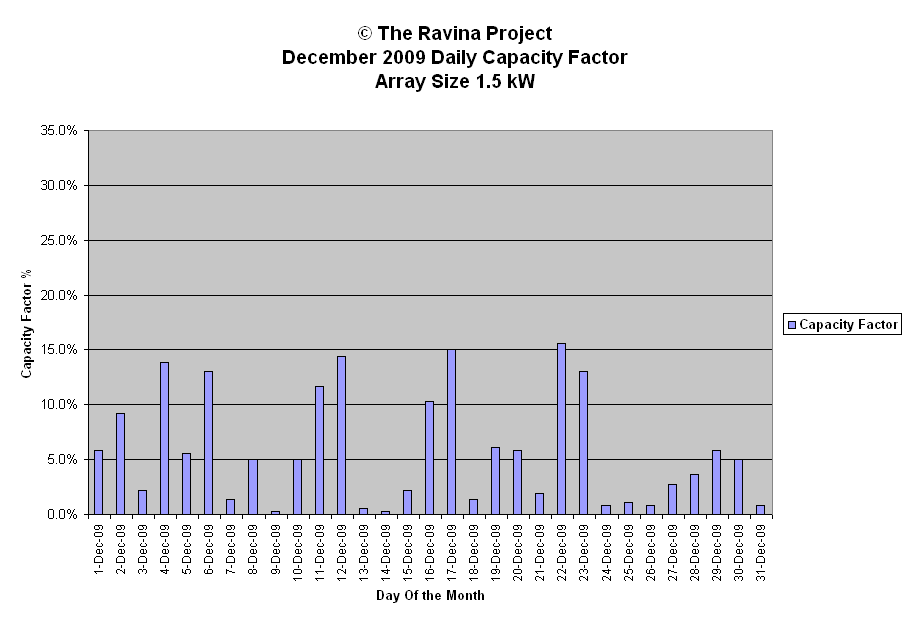

This page contains both generation data and a graph for the month.

December 2009 Energy Generation Analysis Copyright The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW Factor
1-Dec-09 2.1 cld am pt sun pm 1367 549 2.6 5.8%   Generation Analysis kWh
2-Dec-09 3.3 sun am cld pm 1015 548 4.0 9.2%
3-Dec-09 0.8 cld sun brks pm 1183 547 1.0 2.2%   Total 65.0
4-Dec-09 5.0 sun am cld pm 1134 546 6.1 13.9%   Average 2.1
5-Dec-09 2.0 oc am diff pm 772 545 2.4 5.6%   Median 1.8
6-Dec-09 4.7 sun am cld pm 1247 543 5.8 13.1%   Stdev 1.8
7-Dec-09 0.5 oc am diff pm 365 542 0.6 1.4%
8-Dec-09 1.8 sun am oc pm 969 541 2.2 5.0%   WX short forms used
9-Dec-09 0.1 oc rain 120 540 0.1 0.3%
10-Dec-09 1.8 sun am oc pm 1293 539 2.2 5.0%   oc - overcast
11-Dec-09 4.2 sun 1267 539 5.2 11.7%   diff - diffuse light
12-Dec-09 5.2 sun cld 1129 538 6.4 14.4%   brks - breaks
13-Dec-09 0.2 oc 77 538 0.2 0.6%   br - bright
14-Dec-09 0.1 oc rain 88 537 0.1 0.3%   cld - cloud
15-Dec-09 0.8 oc sun am 1113 536 1.0 2.2%   hi - high altitude
16-Dec-09 3.7 sun oc pm 1175 536 4.6 10.3%   hz - haze pollution or cirrus
17-Dec-09 5.4 sun 1186 536 6.7 15.0%   pds - periods
18-Dec-09 0.5 oc 566 535 0.6 1.4%   pt - part
19-Dec-09 2.2 oc 771 535 2.7 6.1%   wx - weather
20-Dec-09 2.1 oc am sun pm 1253 535 2.6 5.8%   sml - small
21-Dec-09 0.7 oc 204 535 0.9 1.9%   mod - moderate
22-Dec-09 5.6 sun 1213 535 7.0 15.6%
23-Dec-09 4.7 cld am sun pm 1413 535 5.9 13.1%   Peak Watt Analysis W
24-Dec-09 0.3 oc  94 535 0.4 0.8%
25-Dec-09 0.4 oc rain 160 536 0.5 1.1%   Maximum 1426
26-Dec-09 0.3 oc 154 536 0.4 0.8%   Minimum 77
27-Dec-09 1.0 oc 447 536 1.2 2.8%   Average 822
28-Dec-09 1.3 oc sun brks am 1200 537 1.6 3.6%   Median 1015
29-Dec-09 2.1 pt sun 1426 537 2.6 5.8%   Std deviation 488
30-Dec-09 1.8 cld 967 538 2.2 5.0%
31-Dec-09 0.3 oc 115 539 0.4 0.8%   Efficiency Analysis Wh/min/kW

Monthly: 65.0     16704 Capacity Factor Analysis   Maximum 7.0
YTD: 1694.7     267680       Minimum 0.1
Yearly:       267680 Maximum 15.6%   Average 2.6
        Minimum 0.3%   Median 2.2
        Average 5.8%   Std Deviation 2.3
        Median 5.0%
        Std Deviation 5.1%
