Solar Data February 2009

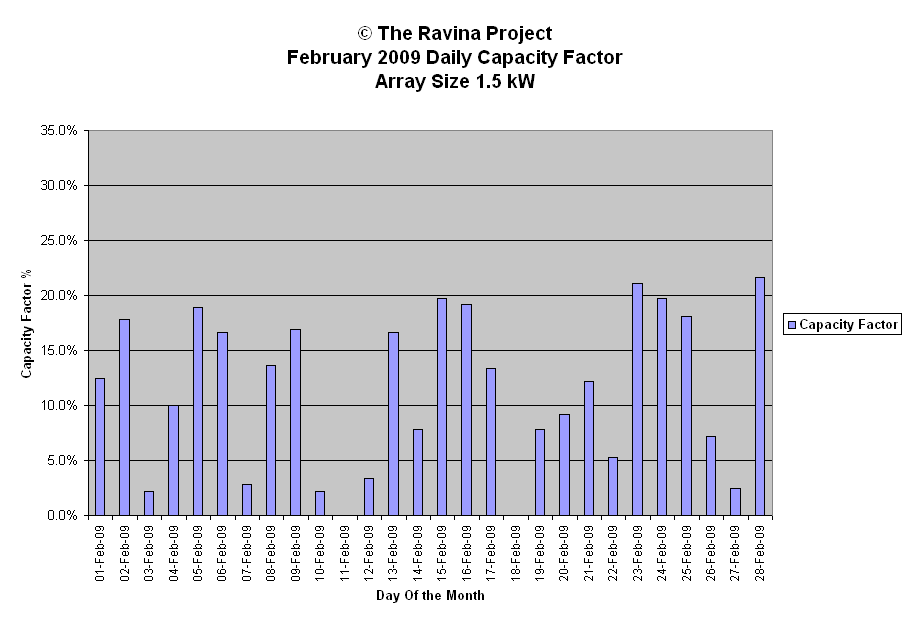

This page contains both generation data and a graph for the month.
| February 2009 Energy Generation Analysis | © Copyright The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 01-Feb-09 | 4.5 | oc am sun pm | 1278 | 595 | 5.0 | 12.5% | Generation Analysis kWh | |||
| 02-Feb-09 | 6.4 | sun | 1204 | 597 | 7.1 | 17.8% | ||||
| 03-Feb-09 | 0.8 | oc snow | 326 | 599 | 0.9 | 2.2% | Total | 114.6 | ||
| 04-Feb-09 | 3.6 | oc am sun hz pm | 1289 | 603 | 4.0 | 10.0% | Average | 4.1 | ||
| 05-Feb-09 | 6.8 | sun | 1293 | 605 | 7.5 | 18.9% | Median | 4.5 | ||
| 06-Feb-09 | 6.0 | sun hz | 1161 | 608 | 6.6 | 16.7% | Stdev | 2.6 | ||
| 07-Feb-09 | 1.0 | oc diff | 991 | 610 | 1.1 | 2.8% | ||||
| 08-Feb-09 | 4.9 | pt cld | 1542 | 613 | 5.3 | 13.6% | WX short forms used | |||
| 09-Feb-09 | 6.1 | sun cld late pm | 1180 | 616 | 6.6 | 16.9% | ||||
| 10-Feb-09 | 0.8 | oc | 910 | 618 | 0.9 | 2.2% | oc - overcast | |||
| 11-Feb-09 | 0.0 | oc rain | 77 | 621 | 0.0 | 0.0% | diff - diffuse light | |||
| 12-Feb-09 | 1.2 | oc diff | 612 | 624 | 1.3 | 3.3% | brks - breaks | |||
| 13-Feb-09 | 6.0 | sun pt cld | 1517 | 626 | 6.4 | 16.7% | br - bright | |||
| 14-Feb-09 | 2.8 | br diff am oc pm | 1229 | 630 | 3.0 | 7.8% | cld - cloud | |||
| 15-Feb-09 | 7.1 | pristine sun | 1234 | 632 | 7.5 | 19.7% | hi - high altitude | |||
| 16-Feb-09 | 6.9 | sun hz am sun pm | 1266 | 635 | 7.2 | 19.2% | hz - haze, pollution or cirrus | |||
| 17-Feb-09 | 4.8 | sun hz am oc pm | 1239 | 638 | 5.0 | 13.3% | pds - periods | |||
| 18-Feb-09 | 0.0 | oc snow | 77 | 641 | 0.0 | 0.0% | pt - part | |||
| 19-Feb-09 | 2.8 | oc snow | 1396 | 643 | 2.9 | 7.8% | wx - weather | |||
| 20-Feb-09 | 3.3 | oc br diff | 1271 | 647 | 3.4 | 9.2% | sml - small | |||
| 21-Feb-09 | 4.4 | sun hz am oc anow pm | 1180 | 649 | 4.5 | 12.2% | mod - moderate | |||
| 22-Feb-09 | 1.9 | sun hz am oc pm snow | 1266 | 652 | 1.9 | 5.3% | ||||
| 23-Feb-09 | 7.6 | sun cold | 1407 | 655 | 7.7 | 21.1% | Peak Watt Analysis W | |||
| 24-Feb-09 | 7.1 | sun hz am cld pm | 1301 | 658 | 7.2 | 19.7% | ||||
| 25-Feb-09 | 6.5 | sun am sun hz oc pm | 1200 | 661 | 6.6 | 18.1% | Maximum | 1542 | ||
| 26-Feb-09 | 2.6 | sun hz am sun hi hz pm | 1171 | 664 | 2.6 | 7.2% | Minimum | 77 | ||
| 27-Feb-09 | 0.9 | oc sun brks rain | 1373 | 667 | 0.9 | 2.5% | Average | 1118 | ||
| 28-Feb-09 | 7.8 | pristine sun cold | 1307 | 670 | 7.8 | 21.7% | Median | 1237 | ||
| Std deviation | 383 | |||||||||
| Monthly: | 114.6 | 17677 | Capacity Factor Analysis | |||||||
| YTD: | 204.0 | 35106 | Efficiency Analysis Wh/min/kW | |||||||
| Maximum | 21.7% | |||||||||
| Minimum | 0.0% | Maximum | 7.8 | |||||||
| Average | 11.4% | Minimum | 0.0 | |||||||
| Median | 12.4% | Average | 4.3 | |||||||
| Std Deviation | 7.1% | Median | 4.8 | |||||||
| Std Deviation | 2.7 | |||||||||
