Solar Data February 2013

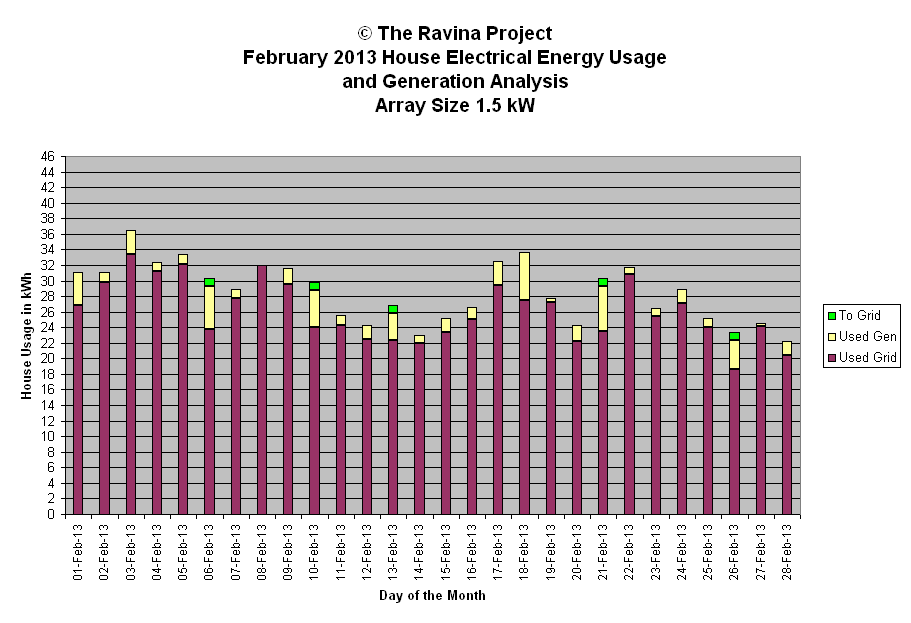

This page contains both generation data and a graph for the month.
Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| February 2013 Energy Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 01-Feb-13 | 4.3 | Sun thn cld | 1396 | 593 | 4.8 | Generation Analysis kWh | |||
| 02-Feb-13 | 1.2 | oc | 358 | 595 | 1.3 | ||||
| 03-Feb-13 | 3.1 | sun thn cld AM oc PM | 1272 | 597 | 3.5 | Total | 73.5 | ||
| 04-Feb-13 | 1.2 | thn cld oc | 610 | 601 | 1.3 | Average | 2.6 | ||
| 05-Feb-13 | 1.4 | sun thn cld am oc pm | 1135 | 603 | 1.5 | Median | 1.8 | ||
| 06-Feb-13 | 6.5 | sun | 1202 | 606 | 7.2 | Stdev | 2.1 | ||
| 07-Feb-13 | 1.1 | oc thn cld | 763 | 608 | 1.2 | ||||
| 08-Feb-13 | 0.0 | Blizzard | 11 | 611 | 0.0 | WX short forms used | |||
| 09-Feb-13 | 6.7 | pristine sun | 881 | 614 | 7.3 | SOA - Snow on array | |||
| 10-Feb-13 | 5.8 | sun thn cld | 1279 | 616 | 6.3 | oc - overcast | |||
| 11-Feb-13 | 1.3 | oc thn cld sun brks | 1260 | 619 | 1.4 | diff - diffuse light | |||
| 12-Feb-13 | 1.8 | sun cld oc | 1299 | 622 | 1.9 | brks - breaks | |||
| 13-Feb-13 | 4.5 | sun / cld | 1340 | 624 | 4.8 | br - bright | |||
| 14-Feb-13 | 1.0 | oc snow sun brk | 947 | 628 | 1.1 | cld - cloud | |||
| 15-Feb-13 | 1.8 | oc cld sun brks | 1393 | 630 | 1.9 | hi - high altitude | |||
| 16-Feb-13 | 1.5 | sun am snow pm | 1343 | 633 | 1.6 | hz - haze, pollution or cirrus | |||
| 17-Feb-13 | 3.0 | pristine sun SOA | 868 | 636 | 3.1 | pds - periods | |||
| 18-Feb-13 | 6.1 | sun cold | 1294 | 639 | 6.4 | pt - part | |||
| 19-Feb-13 | 0.5 | dull oc | 336 | 641 | 0.5 | wx - weather | |||
| 20-Feb-13 | 2.1 | cld | 995 | 645 | 2.2 | sml - small | |||
| 21-Feb-13 | 6.8 | sun cold | 1330 | 647 | 7.0 | mod - moderate | |||
| 22-Feb-13 | 0.9 | oc dull snow pm | 451 | 650 | 0.9 | ||||
| 23-Feb-13 | 1.0 | oc dull am sun brks pm | 567 | 653 | 1.0 | Peak Watt Analysis W | |||
| 24-Feb-13 | 1.8 | oc dull thn cld | 917 | 656 | 1.8 | ||||
| 25-Feb-13 | 1.1 | oc dull | 293 | 659 | 1.1 | Maximum | 1396 | ||
| 26-Feb-13 | 4.7 | sun thn cld | 1226 | 662 | 4.7 | Minimum | 11 | ||
| 27-Feb-13 | 0.5 | dull oc | 149 | 665 | 0.5 | Average | 938 | ||
| 28-Feb-13 | 1.8 | cld with sun brks | 1338 | 667 | 1.8 | Median | 1065 | ||
| Std Deviation | 428.5 | ||||||||
| Monthly: | 73.5 | 17620 | |||||||
| YTD: | 133.3 | Efficiency Analysis Wh/min/kW | |||||||
| Maximum | 7.3 | ||||||||
| Minimum | 0.0 | ||||||||
| Average | 2.8 | ||||||||
| Median | 1.8 | ||||||||
| Std Deviation | 2.3 | ||||||||
