Solar Data February 2014

This page contains both generation data and a graph for the month.

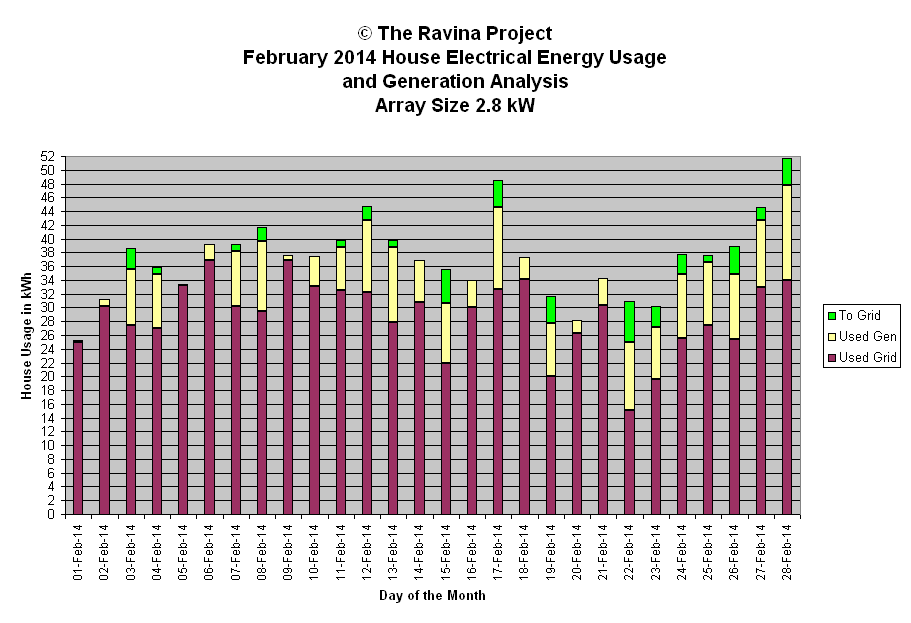

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


February 2014 Energy Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity    Array Size 2.8  kW
  Gen   Watts   Wh/min/kW Factor
01-Feb-14 0.3 oc snow 122 593 0.2 0.4%   Generation Analysis kWh
02-Feb-14 1.0 oc AM pt sun PM soa 602 595 0.6 1.5%
03-Feb-14 11.2 sun 2996 597 6.7 16.7%   Total 239.5
04-Feb-14 8.9 sun mikly sky thn cld 2512 601 5.3 13.2%   Average 8.6
05-Feb-14 0.1 oc soa 61 603 0.1 0.1%   Median 9.5
06-Feb-14 2.3 oc thn cld soa 975 606 1.4 3.4%   Stdev 5.1
07-Feb-14 8.9 sun / thn cld mix soa AM 3196 608 5.2 13.2%
08-Feb-14 12.2 sun thn cld cold 2986 611 7.1 18.2%   WX short forms used
09-Feb-14 6.7 oc snow 259 614 3.9 10.0%   SOA - Snow on array
10-Feb-14 4.3 sun soa 1393 616 2.5 6.4%   oc - overcast
11-Feb-14 7.3 sun thn cld soa AM 2347 619 4.2 10.9%   diff - diffuse light
12-Feb-14 12.4 cld AM sun PM cold 3091 622 7.1 18.5%   brks - breaks
13-Feb-14 12.0 sun thn cld 2663 624 6.9 17.9%   br - bright
14-Feb-14 6.0 oc AM sun thn cld PM 3416 628 3.4 8.9%   cld - cloud
15-Feb-14 13.6 sun cld mix 3019 630 7.7 20.2%   psun - pristine sun
16-Feb-14 4.0 cld / thn cld soa 1270 633 2.3 6.0%   hz - haze, pollution or cirrus
17-Feb-14 15.9 pristine sun cld l8r 2889 636 8.9 23.7%   pds - periods
18-Feb-14 3.2 soa AM sun / cld PM 2805 639 1.8 4.8%   pt - part
19-Feb-14 11.7 sun AM cld PM 2827 641 6.5 17.4%   wx - weather
20-Feb-14 1.8 oc 517 645 1.0 2.7%   sml - small
21-Feb-14 3.9 oc AM pt sun PM 3258 647 2.2 5.8%   mod - moderate
22-Feb-14 15.9 psun 2840 650 8.7 23.7%
23-Feb-14 10.5 thn cld AM sun PM 3220 653 5.7 15.6%   Peak Watt Analysis W
24-Feb-14 12.3 sun thn cld cold 2478 656 6.7 18.3%
25-Feb-14 10.1 sun/ thn cld/ oc mix cold 3416 659 5.5 15.0%   Maximum 3525
26-Feb-14 13.5 sun cld mix cold 3525 662 7.3 20.1%   Minimum 61
27-Feb-14 11.7 sun cld mix cold windy 2818 665 6.3 17.4%   Average 2301
28-Feb-14 17.8 psun cold 2935 667 9.5 26.5%   Median 2823
              Std Deviation 1128

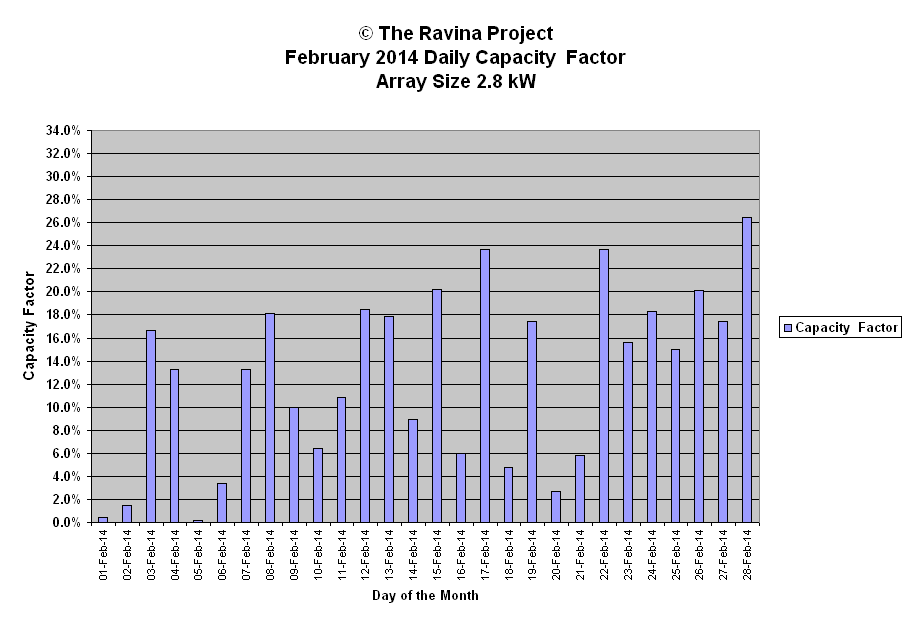

Monthly: 239.5     17620 Capacity Factor Analysis
YTD: 394.3             Efficiency Analysis Wh/min/kW
        High 26.5%
        Low 0.1%   Maximum 9.5
        Average 12.7%   Minimum 0.1
        Median 14.1%   Average 4.8
        Std Dev 7.6%   Median 5.4
              Std Deviation 2.8
