Solar Data Jan 2008

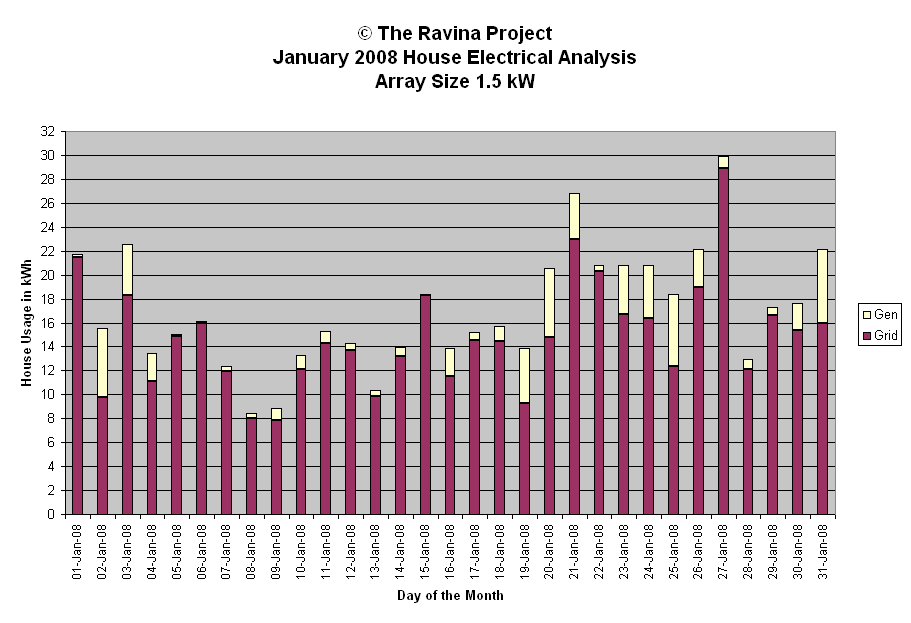

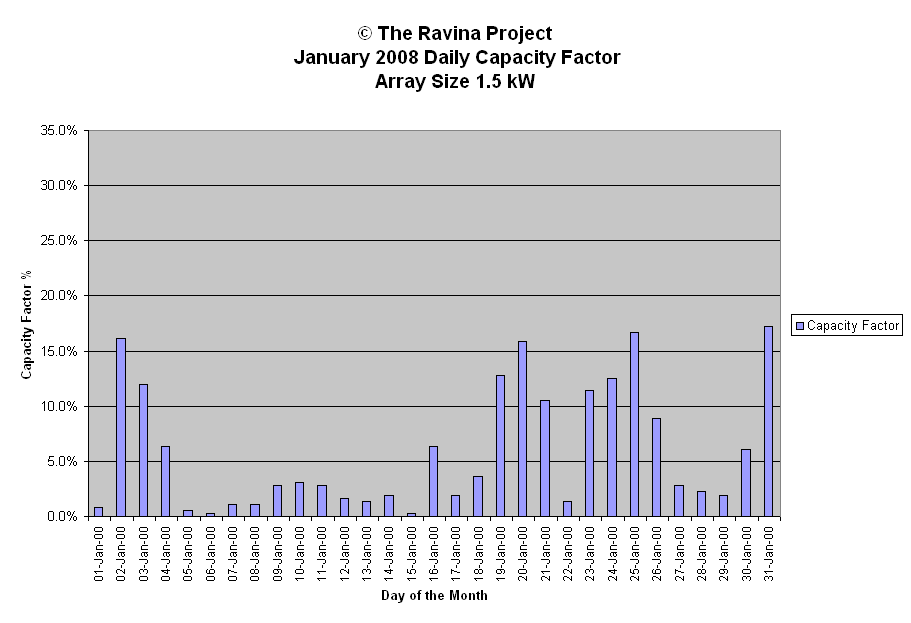

This page contains daily data and graphs of electrical energy use, the daily amount generated and Capacity Factor. Gen refers to the amount generated from the solar array and Grid is the amount we used from the grid.
| January 2008 Energy Generation Analysis | ||||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 01-Jan-08 | 0.3 | oc snow | 132 | 540 | 0.4 | 0.8% | Generation Analysis kWh | |||
| 02-Jan-08 | 5.8 | sun hz | 1247 | 541 | 7.1 | 16.1% | ||||
| 03-Jan-08 | 4.3 | sun am cld snow pm | 1266 | 542 | 5.3 | 11.9% | Total | 66.4 | ||
| 04-Jan-08 | 2.3 | diff sun am cld pm | 1043 | 543 | 2.8 | 6.4% | Average | 2.1 | ||
| 05-Jan-08 | 0.2 | oc rain | 88 | 544 | 0.2 | 0.6% | Median | 1.0 | ||
| 06-Jan-08 | 0.1 | oc rain | 55 | 545 | 0.1 | 0.3% | Stdev | 2.0 | ||
| 07-Jan-08 | 0.4 | oc rain | 308 | 546 | 0.5 | 1.1% | ||||
| 08-Jan-08 | 0.4 | oc | 165 | 548 | 0.5 | 1.1% | WX short forms used | |||
| 09-Jan-08 | 1.0 | oc pt sun | 560 | 549 | 1.2 | 2.8% | ||||
| 10-Jan-08 | 1.1 | oc pt sun | 612 | 550 | 1.3 | 3.1% | oc - overcast | |||
| 11-Jan-08 | 1.0 | oc pt sun | 1308 | 551 | 1.2 | 2.8% | diff - diffuse light | |||
| 12-Jan-08 | 0.6 | oc snow | 231 | 553 | 0.7 | 1.7% | brks - breaks | |||
| 13-Jan-08 | 0.5 | oc | 199 | 554 | 0.6 | 1.4% | br - bright | |||
| 14-Jan-08 | 0.7 | oc rain sml snow | 436 | 556 | 0.8 | 1.9% | cld - cloud | |||
| 15-Jan-08 | 0.1 | oc snow | 49 | 558 | 0.1 | 0.3% | hi - high altitude | |||
| 16-Jan-08 | 2.3 | sun am oc pm | 1274 | 560 | 2.7 | 6.4% | hz - haze pollution or cirrus | |||
| 17-Jan-08 | 0.7 | oc diff | 276 | 561 | 0.8 | 1.9% | pds - periods | |||
| 18-Jan-08 | 1.3 | oc am sun pm | 1100 | 563 | 1.5 | 3.6% | pt - part | |||
| 19-Jan-08 | 4.6 | sun pt cld | 1351 | 564 | 5.4 | 12.8% | wx - weather | |||
| 20-Jan-08 | 5.7 | sun pt cld late pm | 1299 | 567 | 6.7 | 15.8% | sml - small | |||
| 21-Jan-08 | 3.8 | sun hz | 1298 | 569 | 4.5 | 10.6% | mod - moderate | |||
| 22-Jan-08 | 0.5 | oc snow | 176 | 570 | 0.6 | 1.4% | ||||
| 23-Jan-08 | 4.1 | sun hz pt cld | 1339 | 573 | 4.8 | 11.4% | Peak Watt Analysis W | |||
| 24-Jan-08 | 4.5 | am cld hz pm sun | 1310 | 575 | 5.2 | 12.5% | ||||
| 25-Jan-08 | 6.0 | sun sml hz | 1298 | 577 | 6.9 | 16.7% | Maximum | 1351 | ||
| 26-Jan-08 | 3.2 | diff sun am cld pm | 1133 | 580 | 3.7 | 8.9% | Minimum | 49 | ||
| 27-Jan-08 | 1.0 | oc | 491 | 582 | 1.1 | 2.8% | Average | 740 | ||
| 28-Jan-08 | 0.8 | oc clear late pm | 320 | 584 | 0.9 | 2.2% | Median | 612 | ||
| 29-Jan-08 | 0.7 | oc wind | 475 | 587 | 0.8 | 1.9% | Std deviation | 502 | ||
| 30-Jan-08 | 2.2 | oc pt sun cold | 894 | 589 | 2.5 | 6.1% | ||||
| 31-Jan-08 | 6.2 | sun hz | 1214 | 591 | 7.0 | 17.2% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 66.4 | 17412 | Capacity Factor Analysis | Maximum | 7.1 | |||||
| YTD: | 66.4 | 17412 | Minimum | 0.1 | ||||||
| Maximum | 17.2% | Average | 2.5 | |||||||
| Minimum | 0.3% | Median | 1.2 | |||||||
| Average | 5.9% | Std Deviation | 2.4 | |||||||
| Median | 2.8% | |||||||||
| Std Deviation | 5.7% | |||||||||
