2013 Solar Data
Solar Data Home



Solar Data January 2013

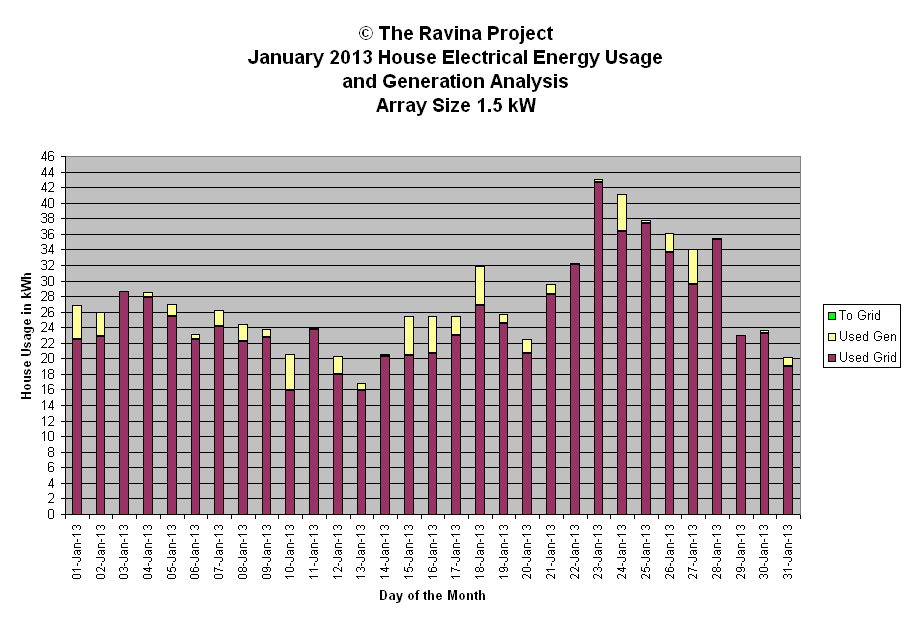

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


January 2013 Energy Generation Analysis The Ravina Project 2011

Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
01-Jan-13 4.4 sun cld brk 1264 540 5.4   Generation Analysis kWh
02-Jan-13 3.0 sun AM pt cld PM 1207 540 3.7
03-Jan-13 0.1 oc snow 71 541 0.1   Total 59.8
04-Jan-13 0.7 oc thn cld 370 542 0.9   Average 1.9
05-Jan-13 1.5 oc pt sun 1194 543 1.8   Median 1.3
06-Jan-13 0.6 oc dull 204 544 0.7   Stdev 1.7
07-Jan-13 2.0 sun AM oc PM 1190 545 2.4
08-Jan-13 2.1 sun thn cld 880 546 2.6   WX short forms used
09-Jan-13 1.0 cld sun brks 1063 547 1.2
10-Jan-13 4.6 sun thn cld 1072 550 5.6   oc - overcast
11-Jan-13 0.2 oc dull rain 203 551 0.2   diff - diffuse light
12-Jan-13 2.3 thn cld 1010 552 2.8   brks - breaks
13-Jan-13 0.9 cld sun brks 775 554 1.1   SOA - snow on array
14-Jan-13 0.3 oc dull 945 555 0.4   cld - cloud
15-Jan-13 5.0 sun cold 1172 557 6.0   hi - high altitude
16-Jan-13 4.8 sun cold 1137 559 5.7   hz - haze, pollution or cirrus
17-Jan-13 2.4 sun oc 1254 561 2.9   pds - periods
18-Jan-13 5.0 sun AM pt cld PM 1285 562 5.9   pt - part
19-Jan-13 1.2 oc cld 425 564 1.4   wx - weather
20-Jan-13 1.8 pt sun 1104 566 2.1   thn - thin
21-Jan-13 1.3 pt sun 1039 568 1.5   l8r - later
22-Jan-13 0.2 SOA 116 570 0.2
23-Jan-13 0.4 oc cld SOA 298 573 0.5   Peak Watt Analysis W
24-Jan-13 4.8 SOA AM pristine sun PM 1150 575 5.6
25-Jan-13 0.5 SOA 215 576 0.6   Maximum 1396
26-Jan-13 2.4 sun cld snow AM 1083 579 2.8   Minimum 71
27-Jan-13 4.5 sun thn cld 1396 581 5.2   Average 793
28-Jan-13 0.1 oc dull rain 99 583 0.1   Median 1039
29-Jan-13 0.1 oc dull rain 72 586 0.1   Std deviation 463
30-Jan-13 0.4 oc dull rain 176 588 0.5
31-Jan-13 1.2 cld sun brks 1109 590 1.4   Efficiency Analysis Wh/min/kW

Monthly: 59.8     17388     Maximum 6.0
YTD: 59.8           Minimum 0.1
            Average 2.3
            Median 1.5
            Std Deviation 2.1
