Solar Data January 2014

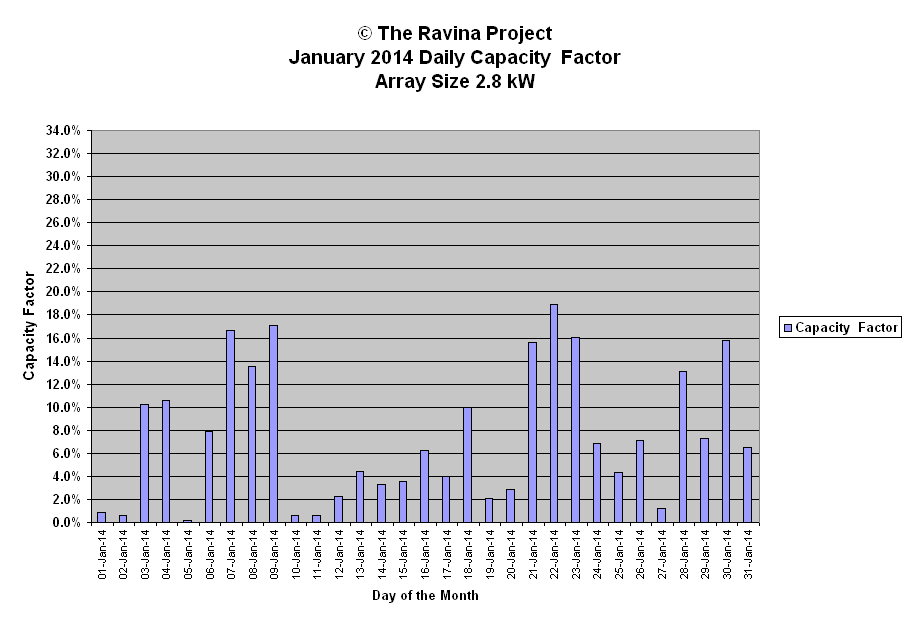

This page contains both generation data and a graph for the month.

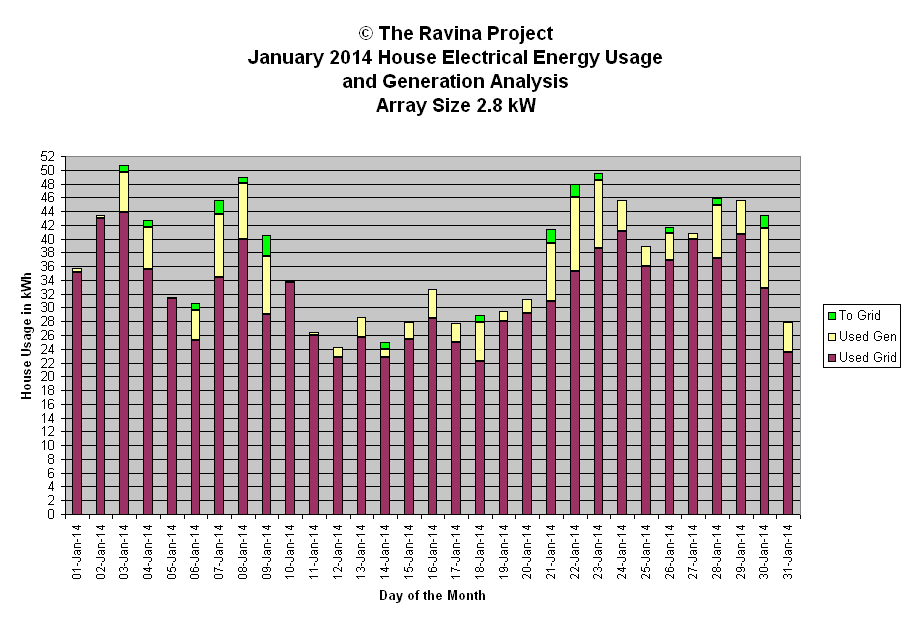

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| January 2014 Energy Generation Analysis | © The Ravina Project 2014 | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 2.8 | |
| Gen | Watts | Wh/min/kW | Factor | ||||||
| 01-Jan-14 | 0.6 | SOA | 470 | 540 | 0.4 | 0.9% | Generation Analysis kWh | ||
| 02-Jan-14 | 0.4 | oc SOA cold -30C | 77 | 540 | 0.3 | 0.6% | |||
| 03-Jan-14 | 6.9 | psun cold soa -25C | 1551 | 541 | 4.6 | 10.3% | Total | 154.8 | |
| 04-Jan-14 | 7.1 | sun AM cld PM | 2983 | 542 | 4.7 | 10.6% | Average | 5.0 | |
| 05-Jan-14 | 0.1 | oc dull | 55 | 543 | 0.1 | 0.1% | Median | 4.4 | |
| 06-Jan-14 | 5.3 | sun AM sun/cld PM | 2699 | 544 | 3.5 | 7.9% | Stdev | 3.9 | |
| 07-Jan-14 | 11.2 | sun windy cold soa | 2530 | 545 | 7.3 | 16.7% | |||
| 08-Jan-14 | 9.1 | sun thn cld oc l8r | 3034 | 546 | 6.0 | 13.5% | WX short forms used | ||
| 09-Jan-14 | 11.5 | pristine sun | 2763 | 547 | 7.5 | 17.1% | |||
| 10-Jan-14 | 0.4 | oc soa | 171 | 550 | 0.3 | 0.6% | oc - overcast | ||
| 11-Jan-14 | 0.4 | dull oc | 160 | 551 | 0.3 | 0.6% | diff - diffuse light | ||
| 12-Jan-14 | 1.5 | oc bright diffuse | 1427 | 552 | 1.0 | 2.2% | brks - breaks | ||
| 13-Jan-14 | 3.0 | cld bright diff | 2029 | 554 | 1.9 | 4.5% | SOA - snow on array | ||
| 14-Jan-14 | 2.2 | oc / thn cld | 1622 | 555 | 1.4 | 3.3% | cld - cloud | ||
| 15-Jan-14 | 2.4 | oc / cld sun brks | 2103 | 557 | 1.5 | 3.6% | psun - Pristine Sun | ||
| 16-Jan-14 | 4.2 | sun / cld mix | 2780 | 559 | 2.7 | 6.3% | hz - haze, pollution or cirrus | ||
| 17-Jan-14 | 2.7 | cld sun brks | 2254 | 561 | 1.7 | 4.0% | pds - periods | ||
| 18-Jan-14 | 6.7 | sun thn cld AM cld PM | 2825 | 562 | 4.3 | 10.0% | pt - part | ||
| 19-Jan-14 | 1.4 | oc soa | 634 | 564 | 0.9 | 2.1% | wx - weather | ||
| 20-Jan-14 | 1.9 | cld AM sun brks PM soa | 1773 | 566 | 1.2 | 2.8% | thn - thin | ||
| 21-Jan-14 | 10.5 | sun cold soa | 2726 | 568 | 6.6 | 15.6% | l8r - later | ||
| 22-Jan-14 | 12.7 | sun cold -30C | 2870 | 570 | 8.0 | 18.9% | |||
| 23-Jan-14 | 10.8 | sun thn cld cold | 2952 | 573 | 6.7 | 16.1% | Peak Watt Analysis W | ||
| 24-Jan-14 | 4.6 | sun brks cold | 2672 | 575 | 2.9 | 6.8% | |||
| 25-Jan-14 | 2.9 | cld / sun / oc mix | 2200 | 576 | 1.8 | 4.3% | Maximum | 3034 | |
| 26-Jan-14 | 4.8 | sun thn cld oc mix cold | 3013 | 579 | 3.0 | 7.1% | Minimum | 55 | |
| 27-Jan-14 | 0.8 | diff sun soa snow | 585 | 581 | 0.5 | 1.2% | Average | 1919 | |
| 28-Jan-14 | 8.8 | psun soa AM pt cld PM | 2026 | 583 | 5.4 | 13.1% | Median | 2200 | |
| 29-Jan-14 | 4.9 | sun / cld mix cold | 2219 | 586 | 3.0 | 7.3% | Std deviation | 1007 | |
| 30-Jan-14 | 10.6 | sun thn cld | 2823 | 588 | 6.4 | 15.8% | |||
| 31-Jan-14 | 4.4 | oc / br diffuse | 1476 | 590 | 2.7 | 6.5% | Efficiency Analysis Wh/min/kW | ||
| Monthly: | 154.8 | 17388 | Capacity Factor Analysis | Maximum | 8.0 | ||||
| YTD: | 154.8 | Minimum | 0.1 | ||||||
| High | 18.9% | Average | 3.2 | ||||||
| Low | 0.1% | Median | 2.7 | ||||||
| Average | 7.4% | Std Deviation | 2.5 | ||||||
| Median | 6.5% | ||||||||
| Std Dev | 5.9% | ||||||||
