Solar Data July 2009

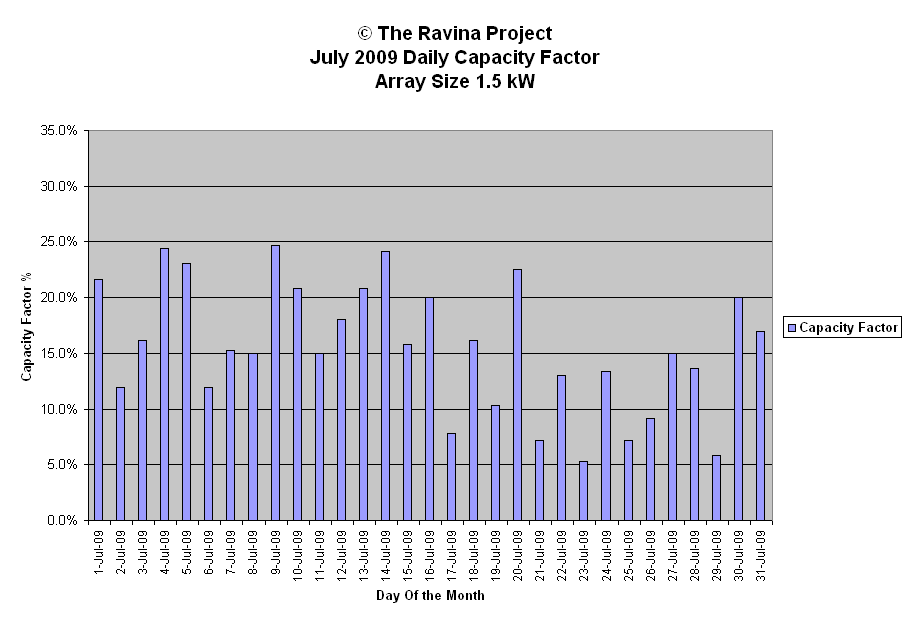

This page contains both generation data and a graph for the month.
| July 2009 Energy Generation Analysis | © Copyright The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Jul-09 | 7.8 | pt cld | 1320 | 923 | 5.6 | 21.7% | Generation Analysis kWh | |||
| 2-Jul-09 | 4.3 | pt sun | 1371 | 923 | 3.1 | 11.9% | ||||
| 3-Jul-09 | 5.8 | pt sun | 1417 | 922 | 4.2 | 16.1% | Total | 173.6 | ||
| 4-Jul-09 | 8.8 | pt cld | 1379 | 921 | 6.4 | 24.4% | Average | 5.6 | ||
| 5-Jul-09 | 8.3 | sun | 1298 | 920 | 6.0 | 23.1% | Median | 5.5 | ||
| 6-Jul-09 | 4.3 | pot sun am cld pm | 1360 | 919 | 3.1 | 11.9% | Stdev | 2.1 | ||
| 7-Jul-09 | 5.5 | diff oc am pt cld pm | 1218 | 918 | 4.0 | 15.3% | ||||
| 8-Jul-09 | 5.4 | sun and cld | 1391 | 917 | 3.9 | 15.0% | WX short forms used | |||
| 9-Jul-09 | 8.9 | sun | 1039 | 915 | 6.5 | 24.7% | ||||
| 10-Jul-09 | 7.5 | sun am diff pm | 1007 | 914 | 5.5 | 20.8% | oc - overcast | |||
| 11-Jul-09 | 5.4 | rain am sun pt cld pm | 1255 | 913 | 3.9 | 15.0% | diff - diffuse light | |||
| 12-Jul-09 | 6.5 | sun am pt sun pm | 1367 | 912 | 4.8 | 18.1% | brks - breaks | |||
| 13-Jul-09 | 7.5 | sun am pt cld pm | 1386 | 910 | 5.5 | 20.8% | br - bright | |||
| 14-Jul-09 | 8.7 | sun | 1076 | 909 | 6.4 | 24.2% | cld - cloud | |||
| 15-Jul-09 | 5.7 | sun am rain pm | 1145 | 907 | 4.2 | 15.8% | hi - high altitude | |||
| 16-Jul-09 | 7.2 | sun am pt cld pm | 1269 | 905 | 5.3 | 20.0% | hz - haze pollution or cirrus | |||
| 17-Jul-09 | 2.8 | oc | 881 | 904 | 2.1 | 7.8% | pds - periods | |||
| 18-Jul-09 | 5.8 | sun am pt cld rain pm | 1406 | 903 | 4.3 | 16.1% | pt - part | |||
| 19-Jul-09 | 3.7 | mixed sun hz oc | 1487 | 901 | 2.7 | 10.3% | wx - weather | |||
| 20-Jul-09 | 8.1 | sun hz diff | 1054 | 899 | 6.0 | 22.5% | sml - small | |||
| 21-Jul-09 | 2.6 | diff am rain pm | 1110 | 897 | 1.9 | 7.2% | mod - moderate | |||
| 22-Jul-09 | 4.7 | oc am diff pm | 1223 | 895 | 3.5 | 13.1% | ||||
| 23-Jul-09 | 1.9 | oc rain am pt sun pm | 1247 | 893 | 1.4 | 5.3% | Peak Watt Analysis W | |||
| 24-Jul-09 | 4.8 | variable sun | 1222 | 891 | 3.6 | 13.3% | ||||
| 25-Jul-09 | 2.6 | diff oc rain, sun late pm | 695 | 889 | 1.9 | 7.2% | Maximum | 1487 | ||
| 26-Jul-09 | 3.3 | sun diff rain | 1206 | 887 | 2.5 | 9.2% | Minimum | 636 | ||
| 27-Jul-09 | 5.4 | mixed sun cld | 1396 | 885 | 4.1 | 15.0% | Average | 1200 | ||
| 28-Jul-09 | 4.9 | sun diff am clear pm | 1139 | 883 | 3.7 | 13.6% | Median | 1223 | ||
| 29-Jul-09 | 2.1 | oc rain | 636 | 881 | 1.6 | 5.8% | Std deviation | 204 | ||
| 30-Jul-09 | 7.2 | sun cirrus hz | 1119 | 879 | 5.5 | 20.0% | ||||
| 31-Jul-09 | 6.1 | mixed sun cld | 1074 | 877 | 4.6 | 16.9% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 173.6 | 28012 | Capacity Factor Analysis | Maximum | 6.5 | |||||
| YTD: | 1123.9 | 164768 | Minimum | 1.4 | ||||||
| Maximum | 24.7% | Average | 4.1 | |||||||
| Minimum | 5.3% | Median | 4.1 | |||||||
| Average | 15.6% | Std Deviation | 1.5 | |||||||
| Median | 15.3% | |||||||||
| Std Deviation | 5.8% | |||||||||
