2012 Solar Data
Solar Data Home



Solar Data July 2012

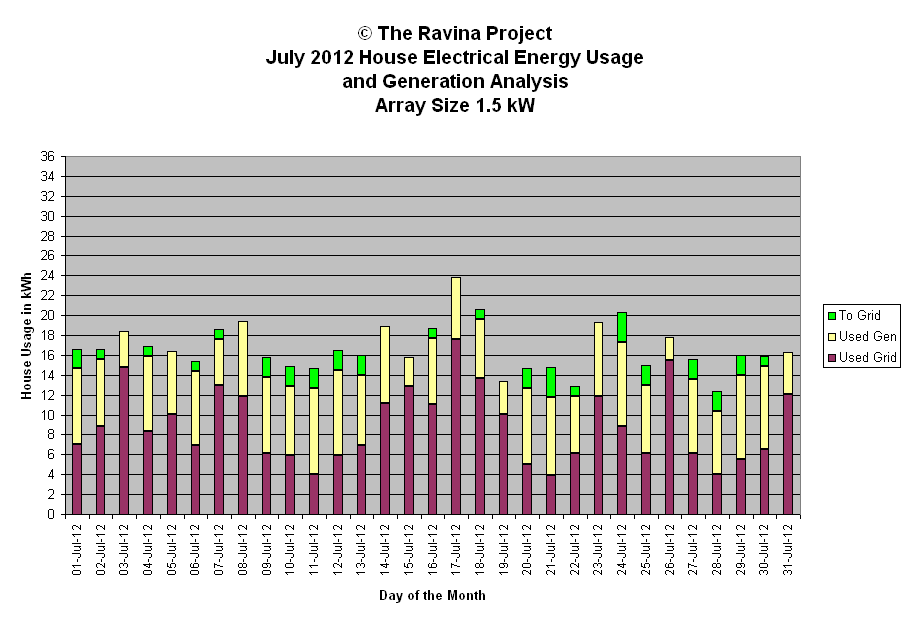

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.




July 2012 Power Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
1-Jul-12 7.6 sun cld 1228 923 5.5   Generation Analysis kWh
2-Jul-12 6.7 sun cld mix 1361 923 4.8
3-Jul-12 3.6 thn cld oc 1217 922 2.6   Total 203.9
4-Jul-12 7.5 sun haze 1053 920 5.4   Average 6.6
5-Jul-12 6.4 sun moderate haze 1128 920 4.6   Median 7.1
6-Jul-12 7.4 sun mod haze hot 1000 919 5.4   Stdev 1.7
7-Jul-12 4.6 oc dull am sun pm 1447 917 3.3
8-Jul-12 7.5 sun thn cld 1422 917 5.5   WX short forms used
9-Jul-12 7.6 sun cld 1398 915 5.5
10-Jul-12 7.0 sun cld 1211 914 5.1   oc - overcast
11-Jul-12 8.7 sun 1036 912 6.4   diff - diffuse light
12-Jul-12 8.5 sun 1026 912 6.2   brks - breaks
13-Jul-12 7.1 sun mod haze 955 910 5.2   br - bright
14-Jul-12 7.8 sun haze 988 908 5.7   cld - cloud
15-Jul-12 2.9 sun am oc rain pm 1279 907 2.1   hi - high altitude
16-Jul-12 6.7 sun / cld haze 1167 905 4.9   hz - haze pollution or cirrus
17-Jul-12 6.2 thn cld hz hot 1150 903 4.6   pds - periods
18-Jul-12 6.0 sun thn cld hot 1244 901 4.4   pt - part
19-Jul-12 3.3 cld oc 858 900 2.4   wx - weather
20-Jul-12 7.6 sun cld brks 1204 898 5.6   sml - small
21-Jul-12 7.8 sun cld L8R 1155 897 5.8   mod - moderate
22-Jul-12 5.7 sun thn cld 1255 895 4.2
23-Jul-12 7.4 sun thn cld hot 1027 893 5.5   Peak Watt Analysis W
24-Jul-12 8.4 sun hz cld brks 1221 891 6.3
25-Jul-12 6.8 sun am cld L8R 1139 889 5.1   Maximum 1447
26-Jul-12 2.4 oc cld sun brk 1221 887 1.8   Minimum 858
27-Jul-12 7.4 sun ** 1145 884 5.6   Average 1163
28-Jul-12 6.4 cld am sun pm 1263 882 4.8   Median 1155
29-Jul-12 8.4 sun 1125 880 6.4   Std deviation 140
30-Jul-12 8.3 sun hot 1020 877 6.3
31-Jul-12 4.2 sun / rain / sun 1112 875 3.2   Efficiency Analysis Wh/min/kW
  ** Battery Equalize in AM
Monthly: 203.9     27996     Maximum 6.4
YTD: 1074.7           Minimum 1.8
            Average 4.9
            Median 5.2
            Std Deviation 1.3
