Solar Data July 2013

This page contains both generation data and a graph for the month.

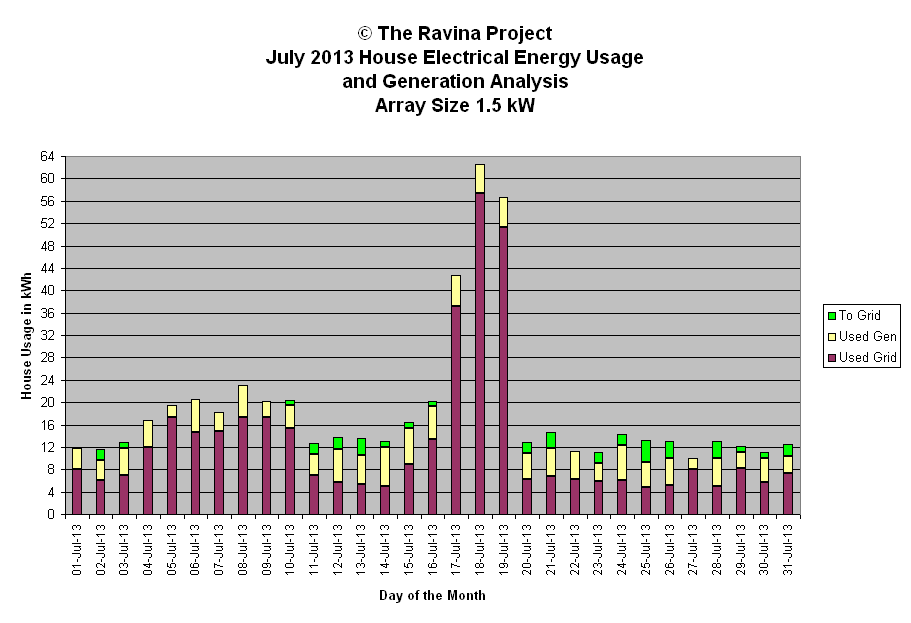

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


July 2013 Energy Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
1-Jul-13 3.8 oc sun thn cld 962 923 2.7   Generation Analysis kWh
2-Jul-13 5.6 oc am thn cld pm 1339 923 4.0
3-Jul-13 5.9 thn cld 1121 922 4.3   Total 179.3
4-Jul-13 4.8 oc rain am sun pm 1296 920 3.5   Average 5.8
5-Jul-13 2.2 oc rain sun brks 1029 920 1.6   Median 5.7
6-Jul-13 5.9 cld / thn cld sun mix 1295 919 4.3   Stdev 1.8
7-Jul-13 3.4 cld rain sun mix 1150 917 2.5
8-Jul-13 5.7 sun huge rain l8r 1168 917 4.1   WX short forms used
9-Jul-13 2.8 oc cld thn cld mix 847 915 2.0
10-Jul-13 5.1 thn cld oc sun mix 1197 914 3.7   oc - overcast
11-Jul-13 5.7 sun cld mix 1317 912 4.2   diff - diffuse light
12-Jul-13 7.9 sun am sun/cld pm 1169 912 5.8   brks - breaks
13-Jul-13 8.2 thn cld sun 946 910 6.0   br - bright
14-Jul-13 8.1 sun thn cld 945 908 5.9   cld - cloud
15-Jul-13 7.5 sun hot 921 907 5.5   hi - high altitude
16-Jul-13 6.9 sun hot haze 903 905 5.1   hz - haze pollution or cirrus
17-Jul-13 5.7 sun thn cld hot haze 1049 903 4.2   pds - periods
18-Jul-13 5.1 sun cld rain hot 1056 901 3.8   pt - part
19-Jul-13 5.3 sun cld haze hot 1092 900 3.9   wx - weather
20-Jul-13 6.7 sun cld mix 1061 898 5.0   sml - small
21-Jul-13 8.0 sun 1049 897 5.9   mod - moderate
22-Jul-13 4.9 sun cld mix 1379 895 3.6
23-Jul-13 5.3 sun cld mix 1090 893 4.0   Peak Watt Analysis W
24-Jul-13 8.2 pristine sun 1131 891 6.1
25-Jul-13 8.4 pristine sun 1060 889 6.3   Maximum 1379
26-Jul-13 7.9 sun am pt cld pm 1125 887 5.9   Minimum 451
27-Jul-13 2.0 oc am rain pm 451 884 1.5   Average 1099
28-Jul-13 8.1 pristine sun 1029 882 6.1   Median 1092
29-Jul-13 3.9 sun cld mix cool 1315 880 3.0   Std deviation 187
30-Jul-13 5.2 sun cld mix 1333 877 4.0
31-Jul-13 5.1 sun am oc pm 1246 875 3.9   Efficiency Analysis Wh/min/kW

Monthly: 179.3     27996     Maximum 6.3
YTD: 954.8           Minimum 1.5
            Average 4.3
            Median 4.1
            Std Deviation 1.4
