2014 Solar Data
Solar Data Home



Solar Data July 2014

This page contains both generation data and a graph for the month.

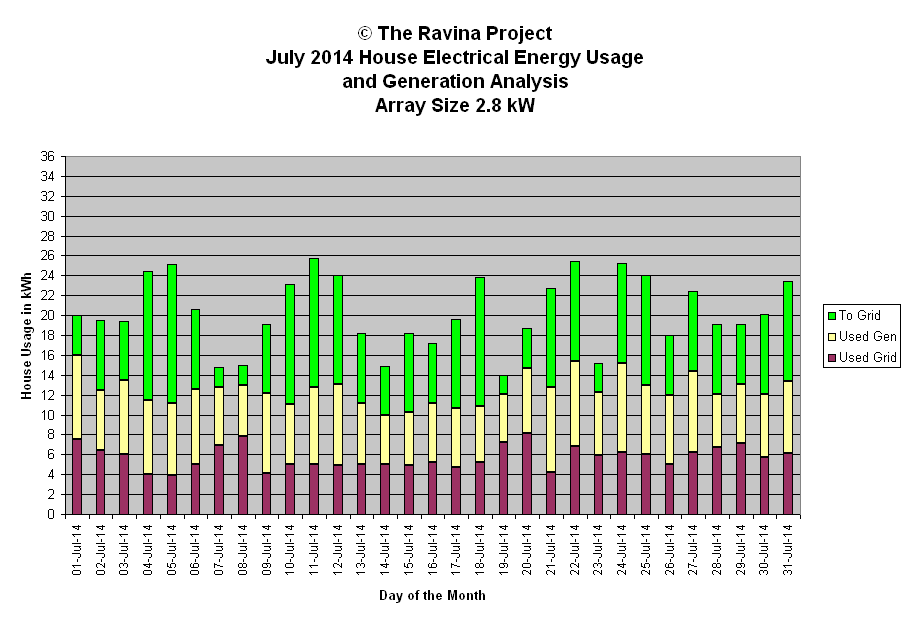

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.

July 2014 Energy Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity    Array Size 2.8  kW
  Gen   Watts   Wh/min/kW Factor
1-Jul-14 12.5 sun / thn cld / oc mix 2769 923 4.8 18.6%   Generation Analysis kWh
2-Jul-14 13.1 sun / ckd / oc mix 2725 923 5.1 19.5%
3-Jul-14 13.4 sun cld mix 3235 922 5.2 19.9%   Total 451.7
4-Jul-14 20.4 sun cldy brks 3216 920 7.9 30.4%   Average 14.6
5-Jul-14 21.2 sun 2416 920 8.2 31.5%   Median 14.3
6-Jul-14 15.6 sun cld brks 2937 919 6.1 23.2%   Stdev 4.1
7-Jul-14 7.8 oc am sun brks pm 2764 917 3.0 11.6%
8-Jul-14 7.2 oc cld sun brks 2496 917 2.8 10.7%   WX short forms used
9-Jul-14 15.0 sun cld mix 3623 915 5.9 22.3%
10-Jul-14 18.1 sun cld mix cool 3173 914 7.1 26.9%   oc - overcast
11-Jul-14 20.7 sun 2444 912 8.1 30.8%   diff - diffuse light
12-Jul-14 19.1 sun am thn cld pm 2470 912 7.5 28.4%   brks - breaks
13-Jul-14 13.1 rain am sun/cld pm 3035 910 5.1 19.5%   br - bright
14-Jul-14 9.9 sun cld mix 2899 908 3.9 14.7%   cld - cloud
15-Jul-14 13.3 sun cld mix   907 5.2 19.8%   hi - high altitude
16-Jul-14 12.0 sun cld rain mix 3350 905 4.7 17.9%   hz - haze pollution or cirrus
17-Jul-14 14.9 sun cld mix   903 5.9 22.2%   pds - periods
18-Jul-14 18.6 sun cld mix   901 7.4 27.7%   pt - part
19-Jul-14 6.8 sun am cld rain pm 1823 900 2.7 10.1%   wx - weather
20-Jul-14 10.6 sun cld mix 2818 898 4.2 15.8%   sml - small
21-Jul-14 18.5 sun thn cld 2270 897 7.4 27.5%   mod - moderate
22-Jul-14 18.6 sun thn cld 2273 895 7.4 27.7%
23-Jul-14 9.3 oc cld am sun pm 3415 893 3.7 13.8%   Peak Watt Analysis W
24-Jul-14 19.0 sun cld brks 2932 891 7.6 28.3%
25-Jul-14 18.0 sun haze 2300 889 7.2 26.8%   Maximum 3623
26-Jul-14 12.9 sun cld mix 2997 887 5.2 19.2%   Minimum 1823
27-Jul-14 16.2 sun thn cld mix 2759 884 6.5 24.1%   Average 2818
28-Jul-14 12.4 oc rain am sun pm 3388 882 5.0 18.5%   Median 2828
29-Jul-14 11.9 sun cld mix 2838 880 4.8 17.7%   Std deviation 413
30-Jul-14 14.3 sun am pt cld pm 2865 877 5.8 21.3%
31-Jul-14 17.3 sun thn cld 2673 875 7.1 25.7%   Efficiency Analysis Wh/min/kW

Monthly: 451.7     27996 Capacity Factor Analysis   Maximum 8.2
YTD: 2415.0             Minimum 2.7
        High 31.5%   Average 5.8
        Low 10.1%   Median 5.8
        Average 21.7%   Std Deviation 1.6
        Median 21.3%
        Std Dev 6.1%
