2009 Solar Data
Solar Data Home



Solar Data June 2009

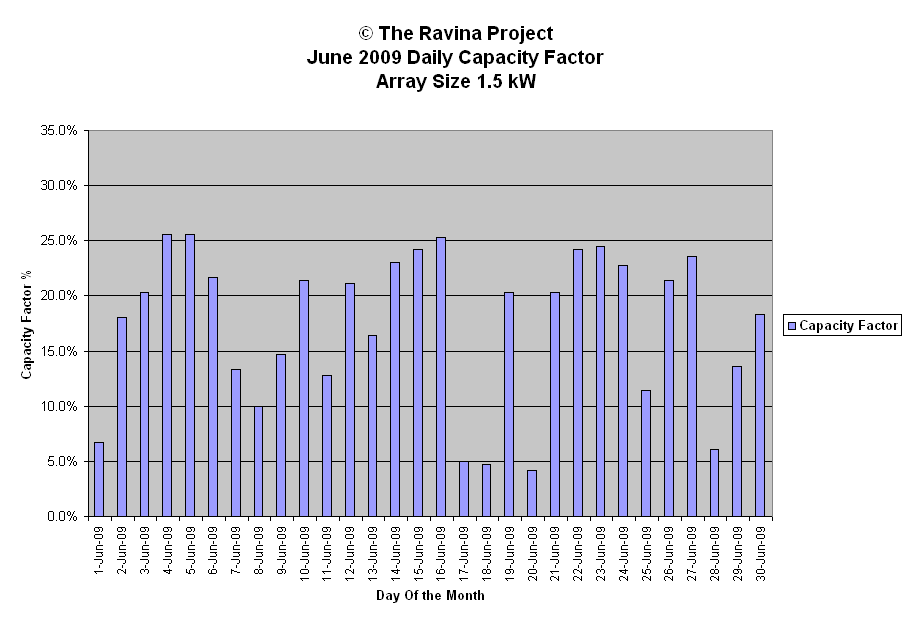

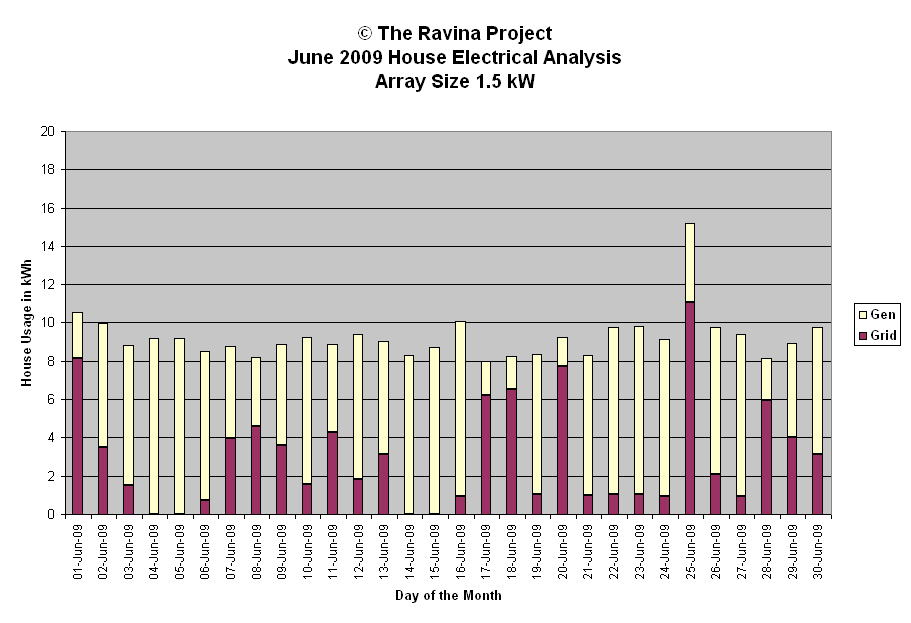

This page contains both generation data and a graph for the month.

June 2009 Energy Generation Analysis Copyright The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW Factor
1-Jun-09 2.4 oc to sun 1169 915 1.7 6.7%   Generation Analysis kWh
2-Jun-09 6.5 oc am sun cld pm 1254 916 4.7 18.1%
3-Jun-09 7.3 sun diff cld 1108 916 5.3 20.3%   Total 187.3
4-Jun-09 9.2 sun 1067 918 6.7 25.6%   Average 6.2
5-Jun-09 9.2 sun 1059 919 6.7 25.6%   Median 7.3
6-Jun-09 7.8 sun cirrus hi cld 1046 920 5.7 21.7%   Stdev 2.5
7-Jun-09 4.8 sun diff cld 1262 921 3.5 13.3%
8-Jun-09 3.6 sun diff oc 1068 922 2.6 10.0%   WX short forms used
9-Jun-09 5.3 pt sun am oc diff pm 1529 922 3.8 14.7%
10-Jun-09 7.7 sun hi hz 1403 924 5.6 21.4%   oc - overcast
11-Jun-09 4.6 sun diff 794 924 3.3 12.8%   diff - diffuse light
12-Jun-09 7.6 mixed sun cld 1309 925 5.5 21.1%   brks - breaks
13-Jun-09 5.9 cld diff am pt cld pm 1037 925 4.3 16.4%   br - bright
14-Jun-09 8.3 sun am cld rain late pm 1112 926 6.0 23.1%   cld - cloud
15-Jun-09 8.7 sun am pt cld pm 1041 926 6.3 24.2%   hi - high altitude
16-Jun-09 9.1 sun 1068 927 6.5 25.3%   hz - haze pollution or cirrus
17-Jun-09 1.8 oc rain windy 938 927 1.3 5.0%   pds - periods
18-Jun-09 1.7 oc rain 367 927 1.2 4.7%   pt - part
19-Jun-09 7.3 sun hz 1159 928 5.2 20.3%   wx - weather
20-Jun-09 1.5 oc rain 367 927 1.1 4.2%   sml - small
21-Jun-09 7.3 sun pt cld am sun pm 1389 927 5.2 20.3%   mod - moderate
22-Jun-09 8.7 sun 1306 927 6.3 24.2%
23-Jun-09 8.8 sun hz humid 1024 927 6.3 24.4%   Peak Watt Analysis W
24-Jun-09 8.2 sun hz humid 1119 926 5.9 22.8%
25-Jun-09 4.1 sun am oc rain sun pm 1242 926 3.0 11.4%   Maximum 1529
26-Jun-09 7.7 sun hot hz 1209 926 5.5 21.4%   Minimum 367
27-Jun-09 8.5 sun 1000 925 6.1 23.6%   Average 1112
28-Jun-09 2.2 oc rain am sun late pm 1258 925 1.6 6.1%   Median 1116
29-Jun-09 4.9 sun am rain pm 1320 924 3.5 13.6%   Std deviation 255
30-Jun-09 6.6 sun pt cld 1325 924 4.8 18.3%
              Efficiency Analysis Wh/min/kW
Monthly: 187.3     27712 Capacity Factor Analysis
YTD: 950.3     136756       Maximum 6.7
        Maximum 25.6%   Minimum 1.1
        Minimum 4.2%   Average 4.5
        Average 17.3%   Median 5.2
        Median 20.3%   Std Deviation 1.8
