Solar Data June 2011

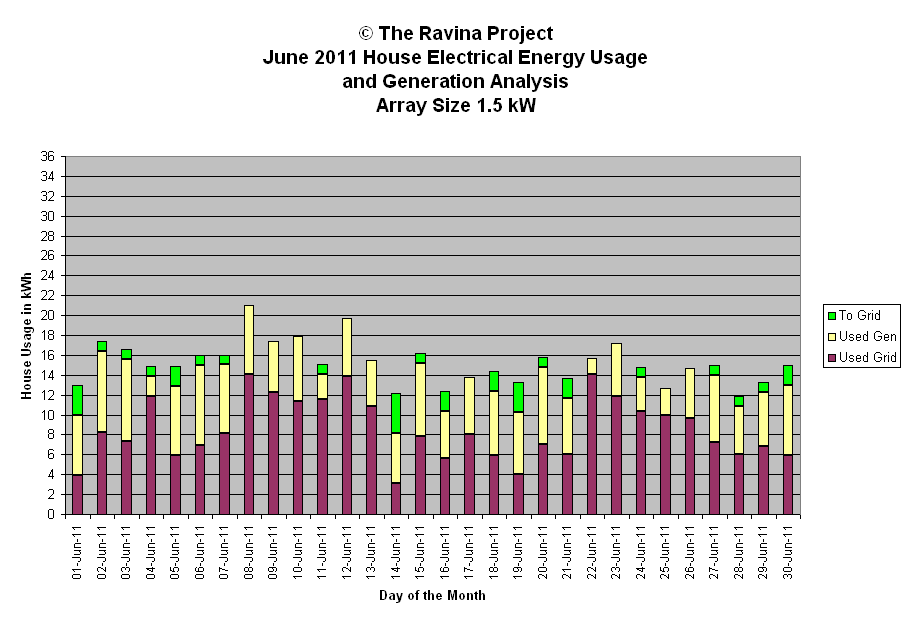

This page contains both generation data and a graph for the month.
Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| June 2011 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Jun-11 | 9.0 | sun | 1114 | 914 | 6.6 | Generation Analysis kWh | |||
| 2-Jun-11 | 9.1 | pristine sun cool | 1254 | 915 | 6.6 | ||||
| 3-Jun-11 | 9.2 | pristine sun | 1127 | 916 | 6.7 | Total | 200.7 | ||
| 4-Jun-11 | 3.0 | oc am sun pm | 955 | 918 | 2.2 | Average | 6.7 | ||
| 5-Jun-11 | 8.9 | sun cld prds pm | 1174 | 919 | 6.5 | Median | 6.8 | ||
| 6-Jun-11 | 9.0 | sun | 1085 | 920 | 6.5 | Stdev | 2.2 | ||
| 7-Jun-11 | 7.9 | sun humid haze | 1046 | 921 | 5.7 | ||||
| 8-Jun-11 | 6.9 | sun hz hi cld am oc late pm | 991 | 922 | 5.0 | WX short forms used | |||
| 9-Jun-11 | 5.1 | diff oc am thn cld pm | 1279 | 922 | 3.7 | ||||
| 10-Jun-11 | 6.5 | thn cld diff | 1172 | 924 | 4.7 | oc - overcast | |||
| 11-Jun-11 | 3.6 | diffuse sun brk | 1081 | 924 | 2.6 | diff - diffuse light | |||
| 12-Jun-11 | 5.8 | sun am pt sun oc pm | 1526 | 925 | 4.2 | brks - breaks | |||
| 13-Jun-11 | 4.7 | sun / cld / oc | 1496 | 925 | 3.4 | br - bright | |||
| 14-Jun-11 | 9.1 | thn cld am sun pm | 1265 | 926 | 6.6 | cld - cloud | |||
| 15-Jun-11 | 8.3 | sun hi thn cld | 1022 | 926 | 6.0 | hi - high altitude | |||
| 16-Jun-11 | 6.7 | thn cld am, sun/cld pm | 1191 | 927 | 4.8 | hz - haze pollution or cirrus | |||
| 17-Jun-11 | 5.8 | thn cld / diffuse sun | 1265 | 927 | 4.2 | pds - periods | |||
| 18-Jun-11 | 8.4 | sun hz hi cld am oc late pm | 1043 | 927 | 6.0 | pt - part | |||
| 19-Jun-11 | 9.2 | sun thn cld | 1123 | 927 | 6.6 | wx - weather | |||
| 20-Jun-11 | 8.7 | sun am thn cld pm | 1158 | 928 | 6.3 | sml - small | |||
| 21-Jun-11 | 7.7 | thn cld | 1235 | 927 | 5.5 | mod - moderate | |||
| 22-Jun-11 | 1.6 | oc | 565 | 927 | 1.2 | ||||
| 23-Jun-11 | 5.3 | thn cld am oc pate pm | 1282 | 927 | 3.8 | Peak Watt Analysis W | |||
| 24-Jun-11 | 4.4 | thn cld am rain oc pm | 1147 | 927 | 3.2 | ||||
| 25-Jun-11 | 2.7 | oc thn cld sun brk | 1614 | 926 | 1.9 | Maximum | 1614 | ||
| 26-Jun-11 | 5.1 | oc am sun pm | 1236 | 926 | 3.7 | Minimum | 565 | ||
| 27-Jun-11 | 7.7 | sun hz hi cld am oc late pm | 1079 | 925 | 5.5 | Average | 1183 | ||
| 28-Jun-11 | 5.9 | oc rain am psun pm | 1295 | 925 | 4.3 | Median | 1165 | ||
| 29-Jun-11 | 6.4 | sun / cld | 1579 | 925 | 4.6 | Std deviation | 204 | ||
| 30-Jun-11 | 9.0 | sun | 1092 | 924 | 6.5 | ||||
| Efficiency Analysis Wh/min/kW | |||||||||
| Monthly: | 200.7 | 27712 | |||||||
| YTD: | 780.0 | Maximum | 6.7 | ||||||
| Minimum | 1.2 | ||||||||
| Average | 4.8 | ||||||||
| Median | 4.9 | ||||||||
| Std Deviation | 1.6 | ||||||||
