2012 Solar Data
Solar Data Home



Solar Data June 2012

This page contains both generation data and a graph for the month.

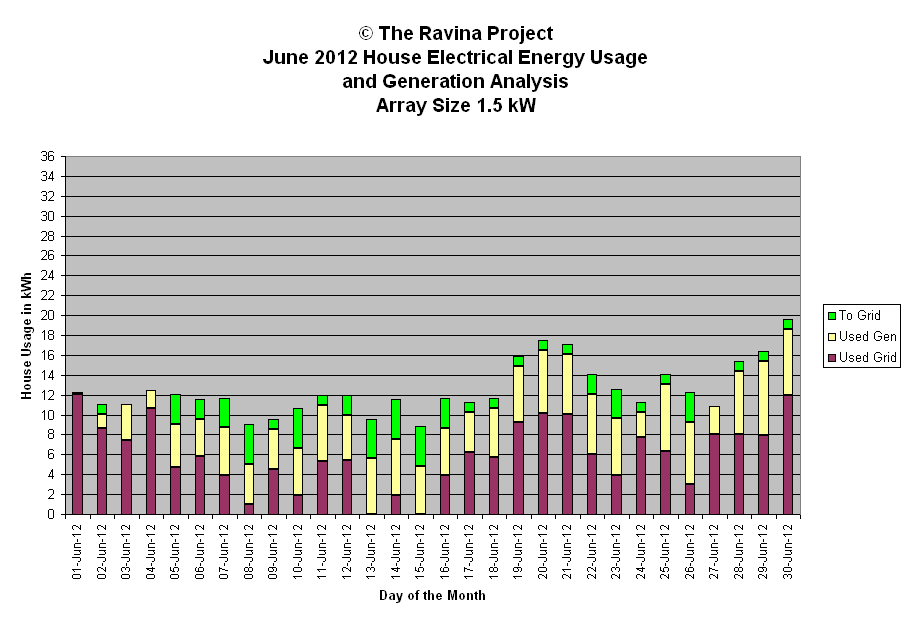

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


June 2012 Power Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
1-Jun-12 0.3 oc wind rain dull 126 915 0.2   Generation Analysis kWh
2-Jun-12 2.5 cld sun late pm 1679 916 1.8
3-Jun-12 3.7 dull oc sun L8R 1701 917 2.7   Total 195.4
4-Jun-12 1.8 dull oc 542 918 1.3   Average 6.5
5-Jun-12 7.3 sun thn cld am 1375 919 5.3   Median 7.3
6-Jun-12 5.7 sun cld 1339 921 4.1   Stdev 2.4
7-Jun-12 7.8 sun pt cld 1233 921 5.6
8-Jun-12 8.1 sunpt cld pm 1197 922 5.9   WX short forms used
9-Jun-12 5.0 cld am sun pm 1366 922 3.6
10-Jun-12 8.7 sun haze 1033 924 6.3   oc - overcast
11-Jun-12 6.6 sun smog haze 1055 925 4.8   diff - diffuse light
12-Jun-12 6.5 oc am sun pm 1279 925 4.7   brks - breaks
13-Jun-12 9.6 pristine sun 1141 926 6.9   br - bright
14-Jun-12 9.6 pristine sun 1134 926 6.9   cld - cloud
15-Jun-12 8.8 sun haze 1058 926 6.3   hi - high altitude
16-Jun-12 7.7 thn cld 1051 927 5.5   hz - haze pollution or cirrus
17-Jun-12 5.0 cld sun brks 1104 927 3.6   pds - periods
18-Jun-12 5.9 thn cld 1109 927 4.2   pt - part
19-Jun-12 6.7 thn cld 1117 928 4.8   wx - weather
20-Jun-12 7.4 sun hot thn cld 1069 927 5.3   sml - small
21-Jun-12 7.0 sun haze rain L8R 1136 927 5.0   mod - moderate
22-Jun-12 8.1 sun pt cld pm 1317 927 5.8
23-Jun-12 8.7 pristine sun pt cld pm 1217 927 6.3   Peak Watt Analysis W
24-Jun-12 3.5 thn cld am oc pm 1083 926 2.5
25-Jun-12 7.8 sun pt cld 1474 926 5.6   Maximum 1701
26-Jun-12 9.3 sun cld brks 1282 926 6.7   Minimum 126
27-Jun-12 2.8 oc thn cld L8R 1144 925 2.0   Average 1163
28-Jun-12 7.3 thn cld haze 1271 925 5.3   Median 1143
29-Jun-12 8.5 sun haze thn cld 1065 924 6.1   Std deviation 287
30-Jun-12 7.7 sun / cld 1197 924 5.6
            Efficiency Analysis Wh/min/kW
Monthly: 195.4     27716
YTD: 870.8           Maximum 6.9
            Minimum 0.2
            Average 4.7
            Median 5.3
            Std Deviation 1.8
