2014 Solar Data
Solar Data Home



Solar Data June 2014

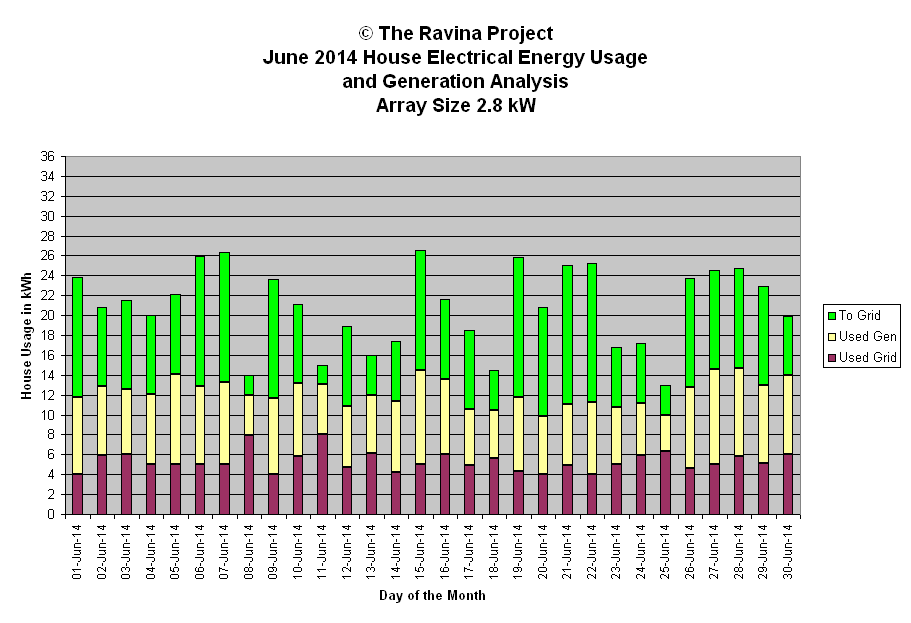

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


June 2014 Energy Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity    Array Size 2.8  kW
  Gen   Watts   Wh/min/kW Factor
1-Jun-14 19.8 sun Am pt cld PM 2504 915 7.7 29.5%   Generation Analysis kWh
2-Jun-14 14.9 sun cld mix 2957 916 5.8 22.2%
3-Jun-14 15.5 sun hz am pt cld pm 2730 917 6.0 23.1%   Total 467.3
4-Jun-14 15.0 psun am cld pm 2970 918 5.8 22.3%   Average 15.6
5-Jun-14 17.1 pt cld am sun pm 3540 919 6.6 25.4%   Median 15.6
6-Jun-14 20.9 sun thn cld 2740 921 8.1 31.1%   Stdev 4.7
7-Jun-14 21.3 pristine sun 2498 921 8.3 31.7%
8-Jun-14 6.0 cld oc rain 1788 922 2.3 8.9%   WX short forms used
9-Jun-14 19.6 sun / thn cld mix 2542 922 7.6 29.2%
10-Jun-14 15.3 sun / thn cld/ oc mix 2301 924 5.9 22.8%   oc - overcast
11-Jun-14 7.0 rain oc sun brks 2921 925 2.7 10.4%   diff - diffuse light
12-Jun-14 14.1 cld am sun pm 3344 925 5.4 21.0%   brks - breaks
13-Jun-14 9.8 cld am sun pm 3178 926 3.8 14.6%   br - bright
14-Jun-14 13.2 sun cld mix 3414 926 5.1 19.6%   cld - cloud
15-Jun-14 21.5 pristine sun 2629 926 8.3 32.0%   hi - high altitude
16-Jun-14 15.6 sun cld mix 2856 927 6.0 23.2%   hz - haze pollution or cirrus
17-Jun-14 13.6 sun cld mix 2876 927 5.2 20.2%   pds - periods
18-Jun-14 8.8 sun am oc rain pm 3073 927 3.4 13.1%   pt - part
19-Jun-14 21.5 pristine sun 2527 928 8.3 32.0%   wx - weather
20-Jun-14 16.8 sun am thn cld pm 3068 927 6.5 25.0%   sml - small
21-Jun-14 20.1 sun thn cld 2512 927 7.7 29.9%   mod - moderate
22-Jun-14 21.2 pristine sun 2430 927 8.2 31.5%
23-Jun-14 11.7 sun / diff / oc  mix 2222 927 4.5 17.4%   Peak Watt Analysis W
24-Jun-14 11.2 sun am cld pm 2805 926 4.3 16.7%
25-Jun-14 6.6 oc cld sun brks 3013 926 2.5 9.8%   Maximum 3540
26-Jun-14 19.1 psun / thn cld 2376 926 7.4 28.4%   Minimum 1788
27-Jun-14 19.5 sun 2272 925 7.5 29.0%   Average 2739
28-Jun-14 18.9 thn cld / sun mix 2420 925 7.3 28.1%   Median 2768
29-Jun-14 17.8 sun hz am clds pm 2861 924 6.9 26.5%   Std deviation 386
30-Jun-14 13.9 sun hz thn cld 2795 924 5.4 20.7%
              Efficiency Analysis Wh/min/kW

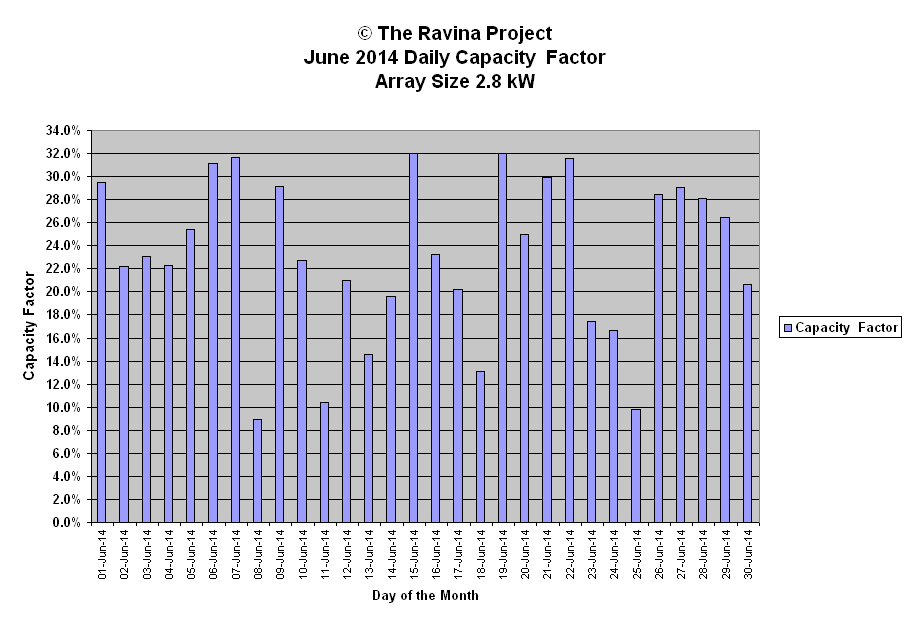

Monthly: 467.3     27716 Capacity Factor Analysis
YTD: 1963.3             Maximum 8.3
        High 32.0%   Minimum 2.3
        Low 8.9%   Average 6.0
        Average 23.2%   Median 6.0
        Median 23.1%   Std Deviation 1.8
        Std Dev 7.0%
