Solar Data May 2009

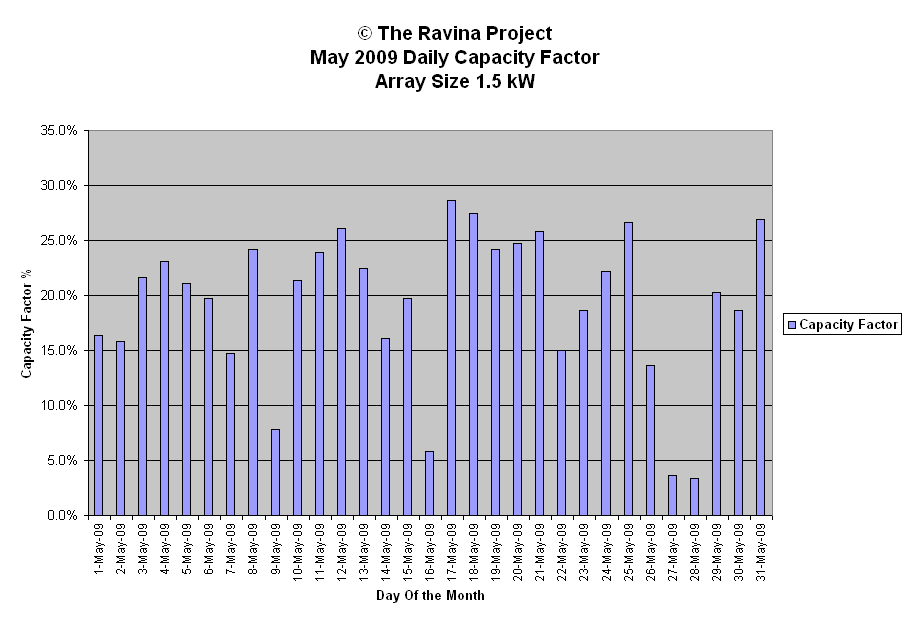

This page contains both generation data and a graph for the month.
| May 2009 Energy Generation Analysis | © Copyright The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-May-09 | 5.9 | oc am sun pt cld pm | 1265 | 852 | 4.6 | 16.4% | Generation Analysis kWh | |||
| 2-May-09 | 5.7 | sun cld | 1537 | 854 | 4.4 | 15.8% | ||||
| 3-May-09 | 7.8 | sun hz am pt cld pm | 1364 | 856 | 6.1 | 21.7% | Total | 215.9 | ||
| 4-May-09 | 8.3 | sun mod hz | 1093 | 859 | 6.4 | 23.1% | Average | 7.0 | ||
| 5-May-09 | 7.6 | sun mod hz diff | 1224 | 861 | 5.9 | 21.1% | Median | 7.6 | ||
| 6-May-09 | 7.1 | sun hz am sun mod hz pm | 1111 | 863 | 5.5 | 19.7% | Stdev | 2.5 | ||
| 7-May-09 | 5.3 | oc rain am sun pt cld pm | 1402 | 866 | 4.1 | 14.7% | ||||
| 8-May-09 | 8.7 | sun br diff am sun pm | 1128 | 869 | 6.7 | 24.2% | WX short forms used | |||
| 9-May-09 | 2.8 | oc rain am sun cld pm | 1534 | 871 | 2.1 | 7.8% | ||||
| 10-May-09 | 7.7 | sun pt cld | 1656 | 873 | 5.9 | 21.4% | oc - overcast | |||
| 11-May-09 | 8.6 | sun cld late pm | 1152 | 876 | 6.5 | 23.9% | diff - diffuse light | |||
| 12-May-09 | 9.4 | sun | 1137 | 878 | 7.1 | 26.1% | brks - breaks | |||
| 13-May-09 | 8.1 | sun diff am sun pm | 1235 | 880 | 6.1 | 22.5% | br - bright | |||
| 14-May-09 | 5.8 | oc rain am sun hz pm | 1375 | 882 | 4.4 | 16.1% | cld - cloud | |||
| 15-May-09 | 7.1 | sun hz am oc diff pm | 1158 | 884 | 5.4 | 19.7% | hi - high altitude | |||
| 16-May-09 | 2.1 | oc rain am sun late pm | 715 | 887 | 1.6 | 5.8% | hz - haze pollution or cirrus | |||
| 17-May-09 | 10.3 | pristine sun cool windy | 1276 | 889 | 7.7 | 28.6% | pds - periods | |||
| 18-May-09 | 9.9 | pristine sun cool | 1160 | 891 | 7.4 | 27.5% | pt - part | |||
| 19-May-09 | 8.7 | sun hi alt hz | 1213 | 893 | 6.5 | 24.2% | wx - weather | |||
| 20-May-09 | 8.9 | sun mod hi hz am sun pm | 1101 | 895 | 6.6 | 24.7% | sml - small | |||
| 21-May-09 | 9.3 | sun warm | 1081 | 897 | 6.9 | 25.8% | mod - moderate | |||
| 22-May-09 | 5.4 | cld am pt cld pm | 1364 | 899 | 4.0 | 15.0% | ||||
| 23-May-09 | 6.7 | diff sun am sun hz pm | 1405 | 901 | 5.0 | 18.6% | Peak Watt Analysis W | |||
| 24-May-09 | 8.0 | diff sun am sun pm | 1394 | 902 | 5.9 | 22.2% | ||||
| 25-May-09 | 9.6 | prinstine sun | 1126 | 904 | 7.1 | 26.7% | Maximum | 1656 | ||
| 26-May-09 | 4.9 | br diff sun am oc pm | 938 | 906 | 3.6 | 13.6% | Minimum | 508 | ||
| 27-May-09 | 1.3 | oc rain | 508 | 907 | 1.0 | 3.6% | Average | 1209 | ||
| 28-May-09 | 1.2 | oc rain | 574 | 908 | 0.9 | 3.3% | Median | 1213 | ||
| 29-May-09 | 7.3 | oc am sun pm | 1581 | 910 | 5.3 | 20.3% | Std deviation | 265 | ||
| 30-May-09 | 6.7 | sun am pt cld pm | 1211 | 911 | 4.9 | 18.6% | ||||
| 31-May-09 | 9.7 | pristine sun cool windy | 1474 | 913 | 7.1 | 26.9% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 215.9 | 27437 | Capacity Factor Analysis | Maximum | 7.7 | |||||
| YTD: | 763.0 | 109044 | Minimum | 0.9 | ||||||
| Maximum | 28.6% | Average | 5.3 | |||||||
| Minimum | 3.3% | Median | 5.9 | |||||||
| Average | 19.3% | Std Deviation | 1.9 | |||||||
| Median | 21.1% | |||||||||
| Std Deviation | 6.9% | |||||||||
