Solar Data May 2011
This page contains both generation data and a graph for the month.

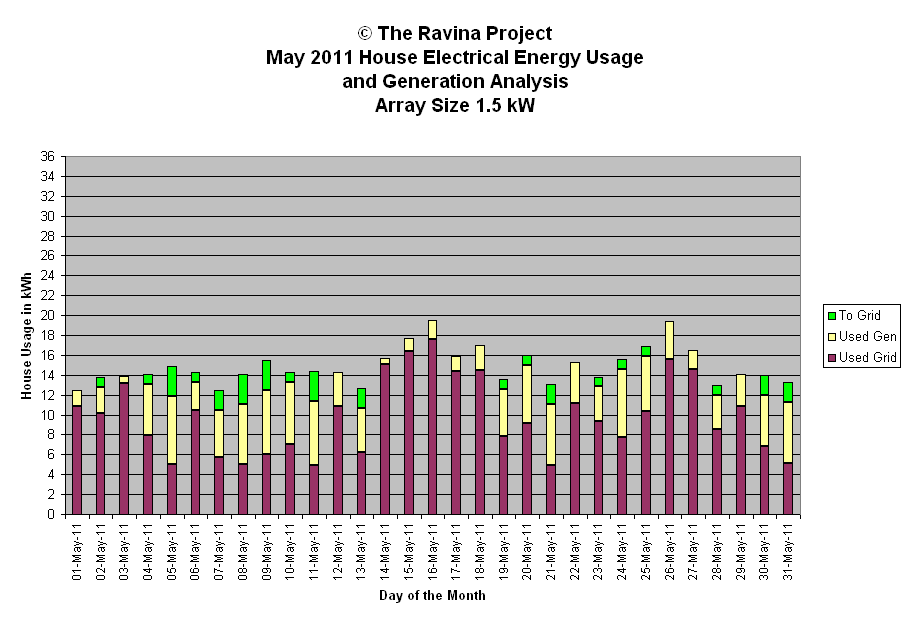

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| May 2011 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-May-11 | 1.6 | oc | 1043 | 850 | 1.3 | Generation Analysis kWh | |||
| 2-May-11 | 3.6 | oc am, pt sun pm | 1594 | 853 | 2.8 | ||||
| 3-May-11 | 0.7 | oc rain am sun pm | 225 | 856 | 0.5 | Total | 157.7 | ||
| 4-May-11 | 6.1 | oc cld am, pt cld pm | 1639 | 858 | 4.7 | Average | 5.1 | ||
| 5-May-11 | 9.9 | sun | 1226 | 861 | 7.7 | Median | 4.5 | ||
| 6-May-11 | 3.8 | diffuse sun | 1279 | 863 | 2.9 | Stdev | 2.8 | ||
| 7-May-11 | 6.7 | sun / cloud | 1600 | 865 | 5.2 | ||||
| 8-May-11 | 9.1 | sun / pt cloud | 1424 | 868 | 7.0 | WX short forms used | |||
| 9-May-11 | 9.5 | sun | 1168 | 871 | 7.3 | ||||
| 10-May-11 | 7.2 | sun thn cld am, oc pm | 1281 | 873 | 5.5 | oc - overcast | |||
| 11-May-11 | 9.4 | sun thin cloud | 1204 | 875 | 7.2 | diff - diffuse light | |||
| 12-May-11 | 3.5 | diffuse sun / oc | 816 | 877 | 2.7 | brks - breaks | |||
| 13-May-11 | 6.5 | thin cloud / diffuse sun | 1359 | 880 | 4.9 | br - bright | |||
| 14-May-11 | 0.6 | oc rain | 153 | 882 | 0.5 | cld - cloud | |||
| 15-May-11 | 1.3 | oc rain | 252 | 884 | 1.0 | hi - high altitude | |||
| 16-May-11 | 1.9 | oc rain | 545 | 886 | 1.4 | hz - haze pollution or cirrus | |||
| 17-May-11 | 1.5 | oc rain | 291 | 888 | 1.1 | pds - periods | |||
| 18-May-11 | 2.5 | oc rain sun breaks | 1159 | 890 | 1.9 | pt - part | |||
| 19-May-11 | 5.7 | oc am, sun pm | 1537 | 892 | 4.3 | wx - weather | |||
| 20-May-11 | 6.8 | diffuse sun am, pt cld pm | 1391 | 894 | 5.1 | sml - small | |||
| 21-May-11 | 8.2 | sun thin cloud | 1072 | 896 | 6.1 | mod - moderate | |||
| 22-May-11 | 4.1 | oc cld am, sun pm | 1490 | 898 | 3.0 | ||||
| 23-May-11 | 4.5 | sun / cld / pt sun | 1249 | 899 | 3.3 | Peak Watt Analysis W | |||
| 24-May-11 | 7.9 | sun am pt cld pm | 1386 | 901 | 5.8 | ||||
| 25-May-11 | 6.5 | diffuse sun cld am, sun pm | 1419 | 903 | 4.8 | Maximum | 1639 | ||
| 26-May-11 | 3.8 | oc rain am, pt sun pm | 1312 | 905 | 2.8 | Minimum | 153 | ||
| 27-May-11 | 1.9 | oc | 553 | 906 | 1.4 | Average | 1110 | ||
| 28-May-11 | 4.4 | oc diff cld am, pt sun pm | 1454 | 908 | 3.2 | Median | 1226 | ||
| 29-May-11 | 3.2 | diff sun am, sun brks pm | 1164 | 910 | 2.3 | Std deviation | 432 | ||
| 30-May-11 | 7.1 | thin cloud | 1134 | 911 | 5.2 | ||||
| 31-May-11 | 8.2 | sun haze hot | 984 | 913 | 6.0 | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 157.7 | 27416 | Maximum | 7.7 | |||||
| YTD: | 579.3 | Minimum | 0.5 | ||||||
| Average | 3.8 | ||||||||
| Median | 3.3 | ||||||||
| Std Deviation | 2.2 | ||||||||
