Solar Data May 2014
This page contains both generation data and a graph for the month.

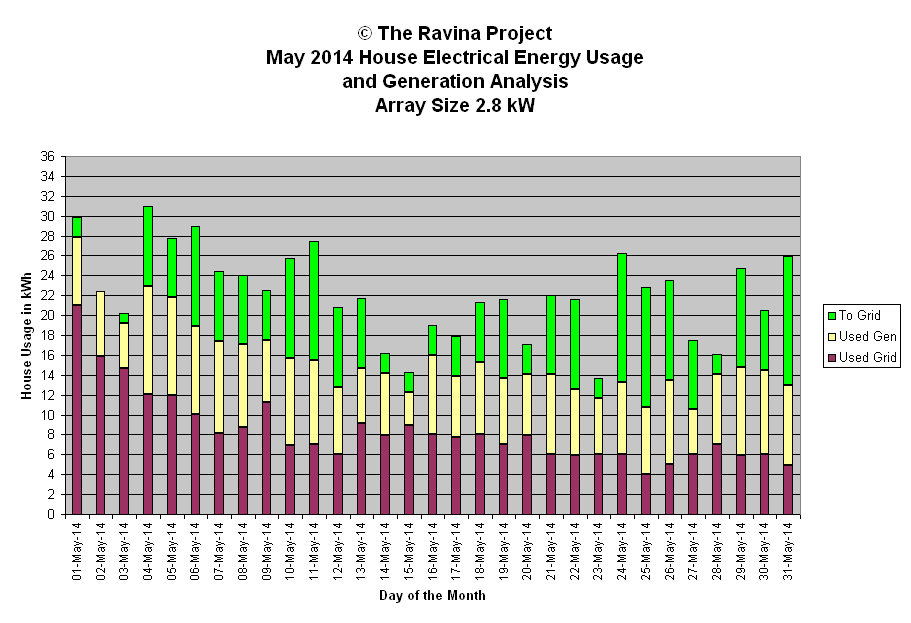

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| May 2014 Energy Generation Analysis | © The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 2.8 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-May-14 | 8.9 | sun/cld mix | 3601 | 852 | 3.7 | 13.2% | Generation Analysis kWh | |||
| 2-May-14 | 6.5 | oc cld rain sun brks | 3314 | 854 | 2.7 | 9.7% | ||||
| 3-May-14 | 5.5 | oc cld rain | 2212 | 857 | 2.3 | 8.2% | Total | 427.4 | ||
| 4-May-14 | 18.9 | sun pt cld AM | 3576 | 859 | 7.9 | 28.1% | Average | 13.8 | ||
| 5-May-14 | 15.8 | sun thn cld am sun pm | 2636 | 862 | 6.5 | 23.5% | Median | 14.6 | ||
| 6-May-14 | 18.9 | sun cld am | 3318 | 865 | 7.8 | 28.1% | Stdev | 4.7 | ||
| 7-May-14 | 16.3 | diffuse thn cld | 2644 | 867 | 6.7 | 24.3% | ||||
| 8-May-14 | 15.3 | br diffuse | 2495 | 869 | 6.3 | 22.8% | WX short forms used | |||
| 9-May-14 | 11.3 | br diff sun/cld | 2624 | 872 | 4.6 | 16.8% | ||||
| 10-May-14 | 18.8 | sun thn cld windy pm | 2686 | 874 | 7.7 | 28.0% | oc - overcast | |||
| 11-May-14 | 20.4 | sun | 2537 | 876 | 8.3 | 30.4% | diff - diffuse light | |||
| 12-May-14 | 14.8 | diffuse sun / oc | 2909 | 878 | 6.0 | 22.0% | brks - breaks | |||
| 13-May-14 | 12.6 | oc am thn cld pm | 3104 | 881 | 5.1 | 18.8% | br - bright | |||
| 14-May-14 | 8.3 | thn cld / oc | 2293 | 883 | 3.4 | 12.4% | cld - cloud | |||
| 15-May-14 | 5.3 | oc rain sun brks | 2191 | 885 | 2.1 | 7.9% | hi - high altitude | |||
| 16-May-14 | 10.9 | oc am pt cld pm | 3707 | 887 | 4.4 | 16.2% | hz - haze pollution or cirrus | |||
| 17-May-14 | 10.1 | oc cld sun brks | 3656 | 889 | 4.1 | 15.0% | pds - periods | |||
| 18-May-14 | 13.2 | sun cld rain mix | 3235 | 891 | 5.3 | 19.6% | pt - part | |||
| 19-May-14 | 14.6 | sun cld mix | 2801 | 893 | 5.8 | 21.7% | wx - weather | |||
| 20-May-14 | 9.2 | cun am oc pm | 2589 | 895 | 3.7 | 13.7% | sml - small | |||
| 21-May-14 | 16.0 | thn cld / cld mix | 2986 | 897 | 6.4 | 23.8% | mod - moderate | |||
| 22-May-14 | 15.6 | sun cld mix | 3013 | 899 | 6.2 | 23.2% | ||||
| 23-May-14 | 7.7 | cld rain am sun pm | 3494 | 901 | 3.1 | 11.5% | Peak Watt Analysis W | |||
| 24-May-14 | 20.3 | pt cld am sun pm | 3085 | 903 | 8.0 | 30.2% | ||||
| 25-May-14 | 18.8 | sun | 2362 | 904 | 7.4 | 28.0% | Maximum | 3707 | ||
| 26-May-14 | 18.5 | sun hi alt cld | 2747 | 906 | 7.3 | 27.5% | Minimum | 2191 | ||
| 27-May-14 | 11.5 | sun cld rain mix | 2888 | 908 | 4.5 | 17.1% | Average | 2913 | ||
| 28-May-14 | 9.1 | thn cld oc mix | 3117 | 909 | 3.6 | 13.5% | Median | 2888 | ||
| 29-May-14 | 18.8 | sun thn cld | 2770 | 910 | 7.4 | 28.0% | Std deviation | 436 | ||
| 30-May-14 | 14.5 | sun am pt sun pm | 3197 | 912 | 5.7 | 21.6% | ||||
| 31-May-14 | 21.0 | sun | 2502 | 913 | 8.2 | 31.3% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 427.4 | 27451 | Capacity Factor Analysis | Maximum | 8.3 | |||||
| YTD: | 1496.0 | Minimum | 2.1 | |||||||
| High | 31.3% | Average | 5.6 | |||||||
| Low | 7.9% | Median | 5.8 | |||||||
| Average | 20.5% | Std Deviation | 1.9 | |||||||
| Median | 21.7% | |||||||||
| Std Dev | 7.1% | |||||||||
