Solar Data November 2011

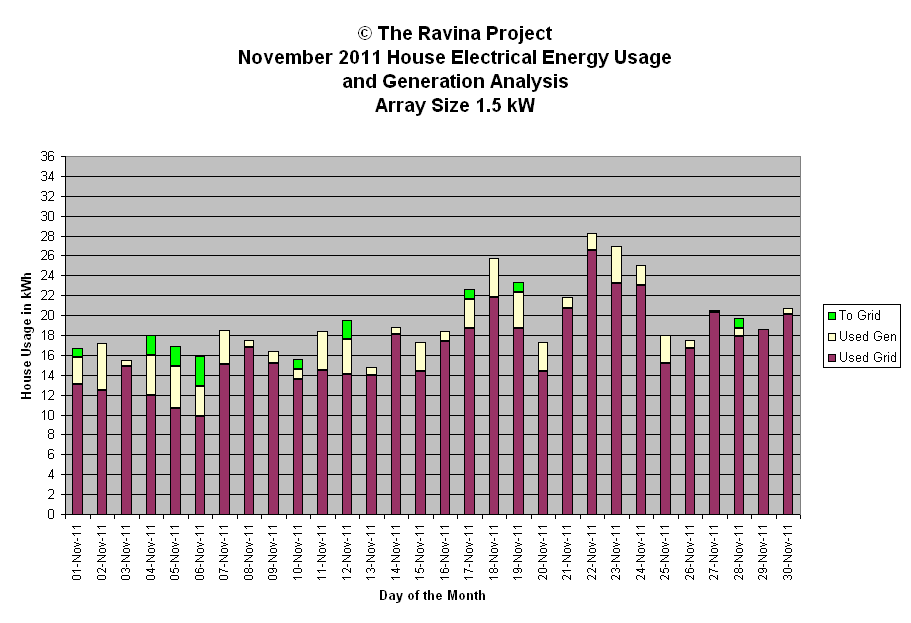

This page contains both generation data and a graph for the month.
Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| November 2011 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Nov-11 | 3.7 | pt cld am sun pm | 1161 | 615 | 4.0 | Generation Analysis kWh | |||
| 2-Nov-11 | 4.8 | sun thn cld pm | 1127 | 612 | 5.2 | ||||
| 3-Nov-11 | 0.6 | oc | 302 | 610 | 0.7 | Total | 79.9 | ||
| 4-Nov-11 | 6.0 | pristine sun | 1213 | 607 | 6.6 | Average | 2.7 | ||
| 5-Nov-11 | 6.2 | pristine sun | 1169 | 604 | 6.8 | Median | 2.4 | ||
| 6-Nov-11 | 6.0 | pristine sun | 1116 | 602 | 6.6 | Stdev | 1.9 | ||
| 7-Nov-11 | 3.5 | sun am cld pm | 1212 | 600 | 3.9 | ||||
| 8-Nov-11 | 0.7 | oc | 450 | 596 | 0.8 | WX short forms used | |||
| 9-Nov-11 | 1.3 | oc sun brks | 948 | 594 | 1.5 | ||||
| 10-Nov-11 | 2.0 | cld sun brks | 1185 | 592 | 2.3 | oc - overcast | |||
| 11-Nov-11 | 3.9 | sun cld pm | 1474 | 589 | 4.4 | diff - diffuse light | |||
| 12-Nov-11 | 5.5 | sun | 1065 | 587 | 6.2 | brks - breaks | |||
| 13-Nov-11 | 0.8 | oc | 367 | 585 | 0.9 | br - bright | |||
| 14-Nov-11 | 0.7 | oc dull | 252 | 582 | 0.8 | cld - cloud | |||
| 15-Nov-11 | 2.9 | thn cld | 1002 | 580 | 3.3 | hi - high altitude | |||
| 16-Nov-11 | 1.0 | oc | 289 | 578 | 1.2 | hz - haze pollution or cirrus | |||
| 17-Nov-11 | 4.0 | sun am cld pm | 1271 | 576 | 4.6 | pds - periods | |||
| 18-Nov-11 | 4.0 | sun thn cld am | 1185 | 573 | 4.7 | pt - part | |||
| 19-Nov-11 | 4.6 | sun thn cld | 1130 | 572 | 5.4 | wx - weather | |||
| 20-Nov-11 | 2.9 | thn cld | 1255 | 570 | 3.4 | sml - small | |||
| 21-Nov-11 | 1.1 | cld oc | 644 | 567 | 1.3 | mod - moderate | |||
| 22-Nov-11 | 1.7 | cld oc | 677 | 565 | 2.0 | ||||
| 23-Nov-11 | 3.7 | oc early sun | 1262 | 564 | 4.4 | Peak Watt Analysis W | |||
| 24-Nov-11 | 2.0 | oc thn cld | 1141 | 562 | 2.4 | ||||
| 25-Nov-11 | 2.8 | sun / oc / thn cld | 1002 | 560 | 3.3 | Maximum | 1474 | ||
| 26-Nov-11 | 0.8 | oc | 279 | 558 | 1.0 | Minimum | 43 | ||
| 27-Nov-11 | 0.2 | oc | 142 | 556 | 0.2 | Average | 865 | ||
| 28-Nov-11 | 1.9 | sun / cld / oc | 1402 | 555 | 2.3 | Median | 1091 | ||
| 29-Nov-11 | 0.0 | oc dull | 43 | 553 | 0.0 | Std deviation | 441 | ||
| 30-Nov-11 | 0.6 | oc | 197 | 552 | 0.7 | ||||
| Efficiency Analysis Wh/min/kW | |||||||||
| Monthly: | 79.9 | 17416 | |||||||
| YTD: | 1478.5 | Maximum | 6.8 | ||||||
| Minimum | 0.0 | ||||||||
| Average | 3.0 | ||||||||
| Median | 2.9 | ||||||||
| Std Deviation | 2.1 | ||||||||
