2013 Solar Data
Solar Data Home



Solar Data November 2013

This page contains both generation data and a graph for the month.

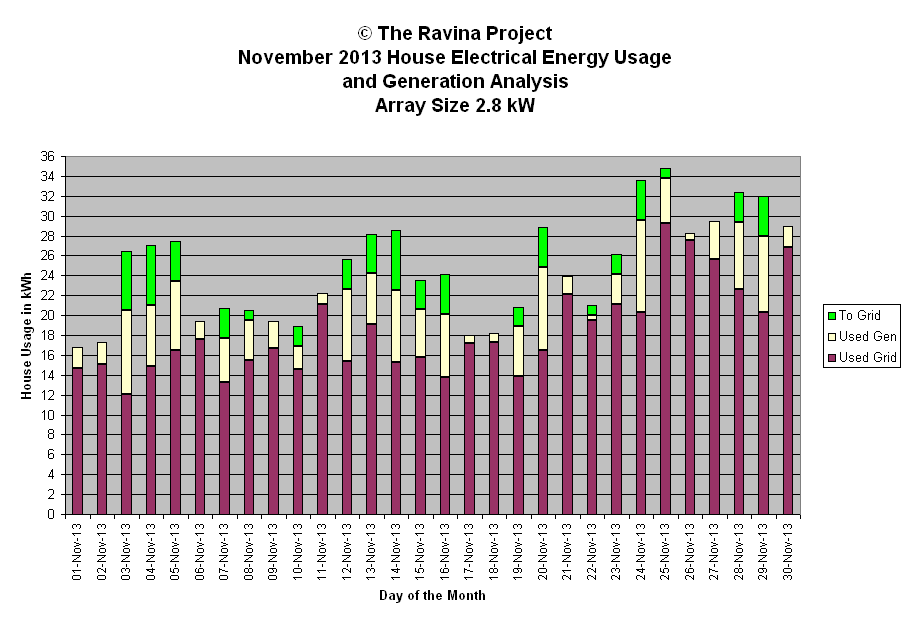

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household. Lots of cloud this month.

November 2013 Energy Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency   Array Size 2.8  kW
  Gen   Watts   Wh/min/kW
1-Nov-13 2.1 cld oc sun  brks 1652 614 1.2   Generation Analysis kWh
2-Nov-13 2.2 cld oc rain 682 611 1.3
3-Nov-13 14.4 pristine sun 2925 608 8.5   Total 191.2
4-Nov-13 12.1 sun / thn cld cold 3184 606 7.1   Average 6.4
5-Nov-13 11.0 sun thn cld AM cld PM 2997 603 6.5   Median 5.3
6-Nov-13 1.8 cld oc mix 2223 600 1.1   Stdev 4.6
7-Nov-13 7.4 sun AM oc dull PM 3241 598 4.4
8-Nov-13 5.0 cld sun brks 3363 596 3.0   WX short forms used
9-Nov-13 2.7 cld diffuse sun brks 2005 593 1.6
10-Nov-13 4.3 cld sun brks 2593 591 2.6   oc - overcast
11-Nov-13 1.1 cld oc dull 746 589 0.7   diff - diffuse light
12-Nov-13 10.3 sun cld brks cold 3433 586 6.3   brks - breaks
13-Nov-13 9.1 sun cld thn cld 3257 583 5.6   br - bright
14-Nov-13 13.3 sun 2537 582 8.2   cld - cloud
15-Nov-13 7.8 sun AM cld oc PM 2958 580 4.8   psun - pristine sun
16-Nov-13 10.4 sun thn cld / cld mix 2249 577 6.4   hz - haze pollution or cirrus
17-Nov-13 0.8 oc dull 225 575 0.5   pds - periods
18-Nov-13 0.9 oc dull 471 573 0.6   pt - part
19-Nov-13 7.0 oc AM pt cld PM 2964 570 4.4   wx - weather
20-Nov-13 12.3 thn cld sun mix 3490 568 7.7   soa - snow on array
21-Nov-13 1.8 oc 505 567 1.1   mod - moderate
22-Nov-13 1.5 oc / br diffuse mix 1377 565 0.9
23-Nov-13 5.0 cld sun mix 3019 562 3.2   Peak Watt Analysis W
24-Nov-13 13.3 Pristine sun 2806 561 8.5
25-Nov-13 5.5 oc cld sun mix 2873 559 3.5   Maximum 3490
26-Nov-13 0.7 oc dull 279 558 0.4   Minimum 225
27-Nov-13 3.8 sun cld mix soa * cold 2865 556 2.4   Average 2238
28-Nov-13 9.8 sun AM cld PM cold 2866 554 6.3   Median 2771
29-Nov-13 11.7 sun cold 2735 552 7.6   Std deviation 1087
30-Nov-13 2.1 oc 624 551 1.4
            Efficiency Analysis Wh/min/kW
Monthly: 191.2     17388
YTD: 1488.3           Maximum 8.5
            Minimum 0.4
* snow on array           Average 3.9
            Median 3.3
            Std Deviation 2.8
