Solar Data November 2014

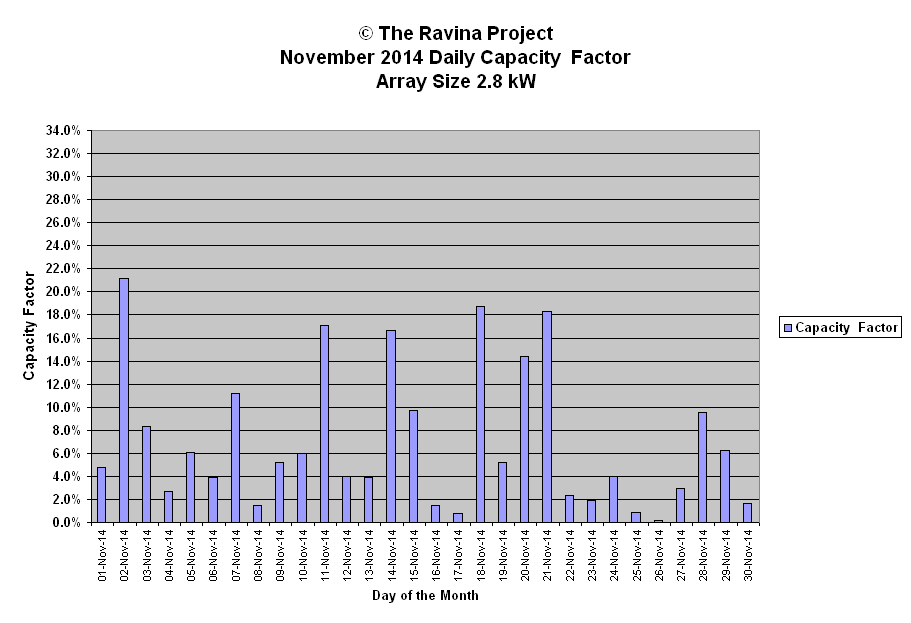

This page contains both generation data and a graph for the month.

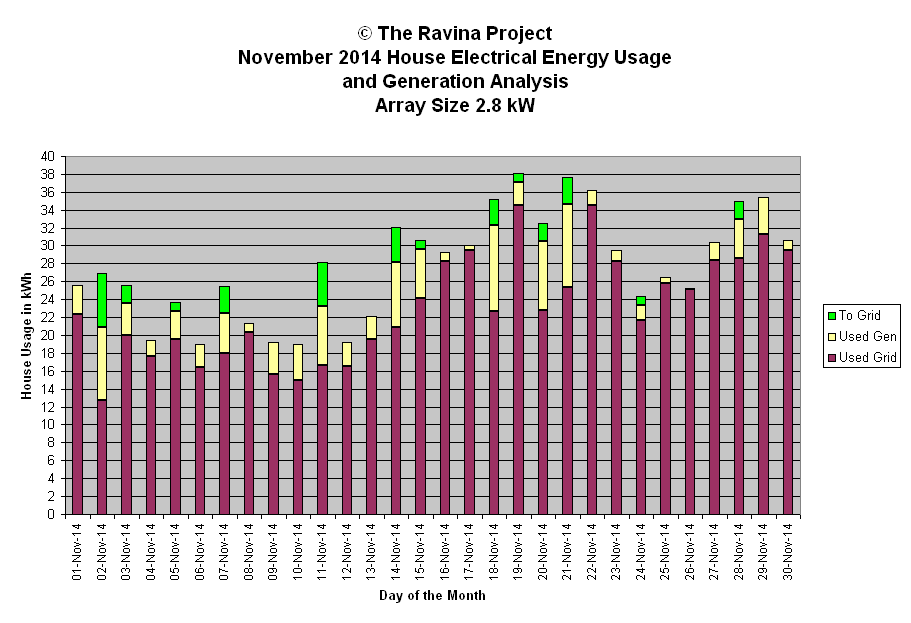

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


November 2014 Energy Generation Analysis The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity    Array Size 2.8
  Gen   Watts   Wh/min/kW Factor
1-Nov-14 3.2 cld oc sun  brks 1952 614 1.9 4.8%   Generation Analysis kWh
2-Nov-14 14.2 pristine sun 2719 611 8.3 21.1%
3-Nov-14 5.6 cld sun brks PM 2769 608 3.3 8.3%   Total 141.6
4-Nov-14 1.8 oc dull thn cld brks 1072 606 1.1 2.7%   Average 4.7
5-Nov-14 4.1 cld sun brks 2834 603 2.4 6.1%   Median 3.4
6-Nov-14 2.6 cld oc sun brk 1889 600 1.5 3.9%   Stdev 4.1
7-Nov-14 7.5 sun cld mix 3429 598 4.5 11.2%
8-Nov-14 1.0 cld oc dull 503 596 0.6 1.5%   WX short forms used
9-Nov-14 3.5 cld thn cld mix 1183 593 2.1 5.2%
10-Nov-14 4.0 sun cld oc mix 2226 591 2.4 6.0%   oc - overcast
11-Nov-14 11.5 sun thn cld mix 2459 589 7.0 17.1%   diff - diffuse light
12-Nov-14 2.7 thn cld sun brks 2261 586 1.6 4.0%   brks - breaks
13-Nov-14 2.6 cld oc snow 616 583 1.6 3.9%   br - bright
14-Nov-14 11.2 sun am pt cld pm 3052 582 6.9 16.7%   cld - cloud
15-Nov-14 6.5 sun pt cld 3118 580 4.0 9.7%   psun - pristine sun
16-Nov-14 1.0 cld oc snow 301 577 0.6 1.5%   hz - haze pollution or cirrus
17-Nov-14 0.5 oc dull snow 247 575 0.3 0.7%   pds - periods
18-Nov-14 12.6 sun am pt cld pm cold 2846 573 7.9 18.8%   pt - part
19-Nov-14 3.5 cld sun brks cold 2650 570 2.2 5.2%   wx - weather
20-Nov-14 9.7 sun cld mix 2997 568 6.1 14.4%   soa - snow on array
21-Nov-14 12.3 sun cld mix 2786 567 7.7 18.3%   mod - moderate
22-Nov-14 1.6 br diffuse 1390 565 1.0 2.4%
23-Nov-14 1.3 then cld cld mix 1881 562 0.8 1.9%   Peak Watt Analysis W
24-Nov-14 2.7 sun cld am oc pm gusty 2083 561 1.7 4.0%
25-Nov-14 0.6 oc dull 395 559 0.4 0.9%   Maximum 3429
26-Nov-14 0.1 array off line dull oc 104 558 0.1 0.1%   Minimum 104
27-Nov-14 2.0 oc cld sun brk 3019 556 1.3 3.0%   Average 1993
28-Nov-14 6.4 sun am oc pm 2985 554 4.1 9.5%   Median 2244
29-Nov-14 4.2 oc sun brk am 2849 552 2.7 6.3%   Std deviation 1032
30-Nov-14 1.1 oc dull thn cld 1183 551 0.7 1.6%
              Efficiency Analysis Wh/min/kW
Monthly: 141.6     17388 Capacity Factor Analysis
YTD: 3521.0             Maximum 8.3
        High 21.1%   Minimum 0.1
* snow on array       Low 0.1%   Average 2.9
        Average 7.0%   Median 2.0
        Median 5.0%   Std Deviation 2.5
        Std Dev 6.1%
