Solar Data October 2009

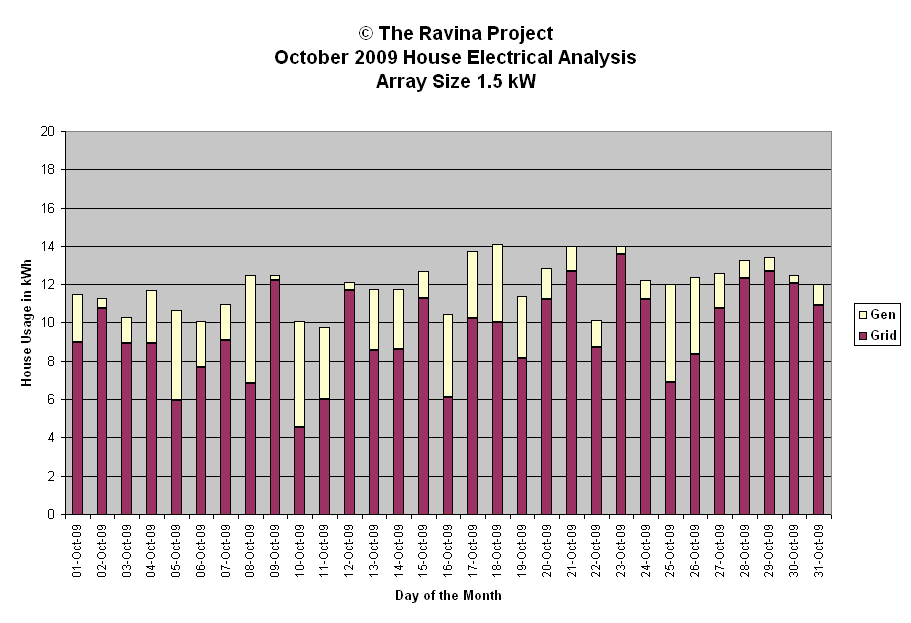

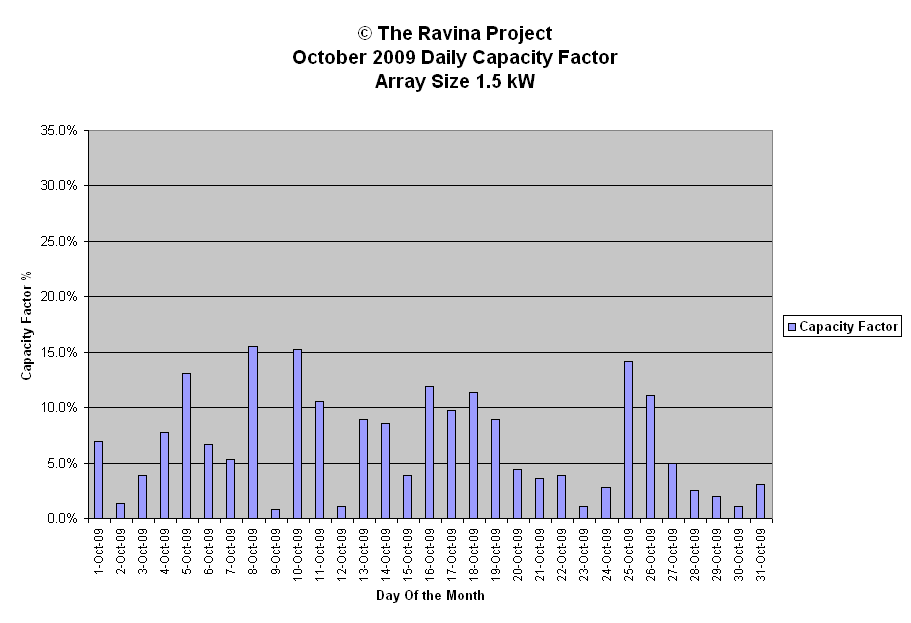

This page contains both generation data and a graph for the month.
| October 2009 Energy Generation Analysis | © Copyright The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Oct-09 | 2.5 | sun am cld pm | 1460 | 703 | 2.4 | 6.9% | Generation Analysis kWh | Scaled | ||
| 2-Oct-09 | 0.5 | oc rain | 147 | 700 | 0.5 | 1.4% | ||||
| 3-Oct-09 | 1.4 | oc diff sun | 1446 | 697 | 1.3 | 3.9% | Total | 73.2 | 88.6 | |
| 4-Oct-09 | 2.8 | sun pm diff oc pm | 1326 | 694 | 2.7 | 7.8% | Average | 2.4 | 2.9 | |
| 5-Oct-09 | 4.7 | sun / cld | 1457 | 691 | 4.5 | 13.1% | Median | 2.2 | 2.4 | |
| 6-Oct-09 | 2.4 | sun / cld | 980 | 688 | 2.3 | 6.7% | Stdev | 1.7 | 2.1 | |
| 7-Oct-09 | 1.9 | sun am oc pm | 1496 | 686 | 1.8 | 5.3% | ||||
| 8-Oct-09 | 5.6 | sun am pt cld pm | 1103 | 682 | 5.5 | 15.6% | WX short forms used | |||
| 9-Oct-09 | 0.3 | oc rain | 131 | 679 | 0.3 | 0.8% | ||||
| 10-Oct-09 | 5.5 | sun am pt cld pm | 1342 | 676 | 5.4 | 15.3% | oc - overcast | |||
| 11-Oct-09 | 3.8 | sun am pt cld pm | 975 | 674 | 3.8 | 10.6% | diff - diffuse light | |||
| 12-Oct-09 | 0.4 | oc | 114 | 671 | 0.4 | 1.1% | brks - breaks | |||
| 13-Oct-09 | 3.2 | pt sun | 997 | 667 | 3.2 | 8.9% | br - bright | |||
| 14-Oct-09 | 3.1 | sun cirrus clds | 745 | 664 | 3.1 | 8.6% | cld - cloud | |||
| 15-Oct-09 | 1.4 | oc | 661 | 662 | 1.4 | 3.9% | hi - high altitude | |||
| 16-Oct-09 | 4.3 | sun cold hz | 776 | 659 | 4.4 | 11.9% | hz - haze pollution or cirrus | |||
| 17-Oct-09 | 3.5 | sun cirrus | 816 | 655 | 3.6 | 9.7% | pds - periods | |||
| 18-Oct-09 | 4.1 | sun | 772 | 653 | 4.2 | 11.4% | pt - part | |||
| 19-Oct-09 | 3.2 | am pt sun pm | 869 | 650 | 3.3 | 8.9% | wx - weather | |||
| 20-Oct-09 | 1.6 | oc pt sun | 838 | 648 | 1.6 | 4.4% | sml - small | |||
| 21-Oct-09 | 1.3 | oc pt sun am | 836 | 644 | 1.3 | 3.6% | mod - moderate | |||
| 22-Oct-09 | 1.4 | oc | 1331 | 641 | 1.5 | 3.9% | ||||
| 23-Oct-09 | 0.4 | oc rain | 235 | 639 | 0.4 | 1.1% | Peak Watt Analysis W | |||
| 24-Oct-09 | 1.0 | oc | 780 | 636 | 1.0 | 2.8% | ||||
| 25-Oct-09 | 5.1 | pt cld | 1332 | 633 | 5.4 | 14.2% | Maximum | 1496 | ||
| 26-Oct-09 | 4.0 | cld am sun pm | 1476 | 630 | 4.2 | 11.1% | Minimum | 114 | ||
| 27-Oct-09 | 1.8 | oc pt sun | 913 | 628 | 1.9 | 5.0% | Average | 872 | ||
| 28-Oct-09 | 0.9 | oc | 389 | 625 | 1.0 | 2.5% | Median | 854 | ||
| 29-Oct-09 | 0.7 | oc | 289 | 622 | 0.8 | 1.9% | Std deviation | 454 | ||
| 30-Oct-09 | 0.4 | oc | 137 | 620 | 0.4 | 1.1% | ||||
| 31-Oct-09 | 1.1 | oc pt sun pm | 920 | 617 | 1.2 | 3.1% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 74.3 | 20434 | Capacity Factor Analysis | Maximum | 5.5 | |||||
| YTD: | 1537.2 | 233574 | Minimum | 0.3 | ||||||
| Maximum | 15.6% | Average | 2.5 | |||||||
| Minimum | 0.8% | Median | 2.1 | |||||||
| Oct 11th to 20th inclusive were generated with a 1000 W collector | Average | 6.7% | Std Deviation | 1.7 | ||||||
| Median | 5.3% | |||||||||
| Std Deviation | 4.6% | |||||||||
