Solar Data October 2011

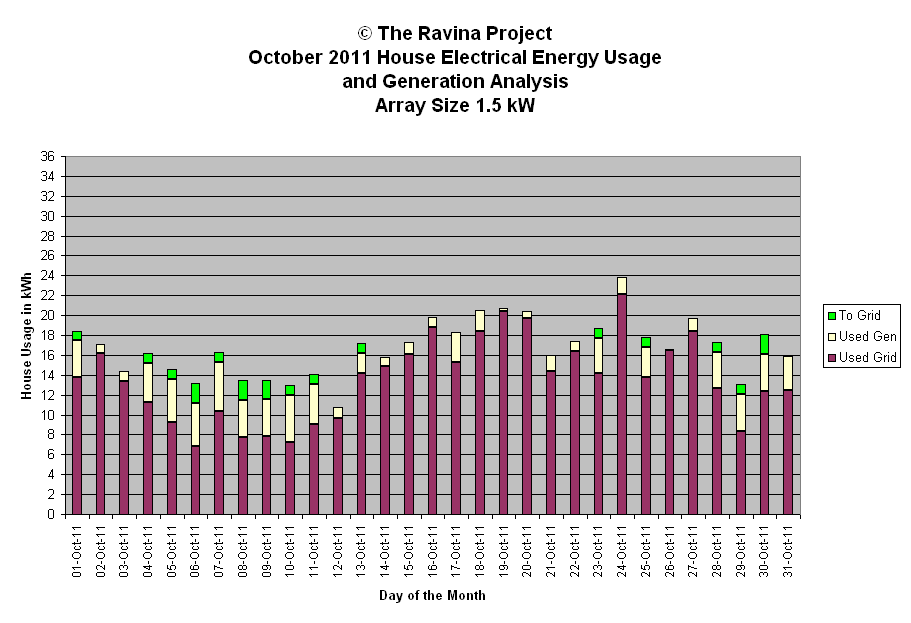

This page contains both generation data and a graph for the month.
Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| October 2011 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Oct-11 | 4.7 | oc am sun pm | 1417 | 704 | 4.5 | Generation Analysis kWh | |||
| 2-Oct-11 | 0.9 | oc | 265 | 701 | 0.9 | ||||
| 3-Oct-11 | 1.0 | oc | 313 | 698 | 1.0 | Total | 97.5 | ||
| 4-Oct-11 | 5.0 | oc cld am sun pm | 1398 | 695 | 4.8 | Average | 3.1 | ||
| 5-Oct-11 | 5.3 | sun | 1325 | 691 | 5.1 | Median | 3.1 | ||
| 6-Oct-11 | 6.3 | sun | 1097 | 689 | 6.1 | Stdev | 2.1 | ||
| 7-Oct-11 | 5.9 | sun | 1030 | 686 | 5.7 | ||||
| 8-Oct-11 | 5.7 | sun | 1048 | 683 | 5.6 | WX short forms used | |||
| 9-Oct-11 | 5.7 | sun | 991 | 680 | 5.6 | ||||
| 10-Oct-11 | 5.7 | sun am thn cld pm | 1117 | 677 | 5.6 | oc - overcast | |||
| 11-Oct-11 | 5.1 | thn cld am cld l8r pm | 1242 | 674 | 5.0 | diff - diffuse light | |||
| 12-Oct-11 | 1.1 | oc | 361 | 671 | 1.1 | brks - breaks | |||
| 13-Oct-11 | 3.0 | oc am pt cld pm | 1425 | 669 | 3.0 | br - bright | |||
| 14-Oct-11 | 0.9 | oc | 331 | 665 | 0.9 | cld - cloud | |||
| 15-Oct-11 | 1.2 | oc sunny brks pm | 1088 | 662 | 1.2 | hi - high altitude | |||
| 16-Oct-11 | 1.0 | oc am cld sunny brks pm | 928 | 660 | 1.0 | hz - haze pollution or cirrus | |||
| 17-Oct-11 | 3.1 | oc sunny brks pm | 1476 | 657 | 3.1 | pds - periods | |||
| 18-Oct-11 | 2.1 | oc am cld sunny brks pm | 1114 | 654 | 2.1 | pt - part | |||
| 19-Oct-11 | 0.3 | oc | 135 | 651 | 0.3 | wx - weather | |||
| 20-Oct-11 | 0.7 | oc | 384 | 648 | 0.7 | sml - small | |||
| 21-Oct-11 | 1.6 | oc thn cld | 891 | 645 | 1.7 | mod - moderate | |||
| 22-Oct-11 | 1.0 | oc | 279 | 643 | 1.0 | ||||
| 23-Oct-11 | 4.6 | sun cld brks | 1233 | 639 | 4.8 | Peak Watt Analysis W | |||
| 24-Oct-11 | 1.7 | pt sun | 1322 | 637 | 1.8 | ||||
| 25-Oct-11 | 4.0 | sun am cld l8r pm | 1460 | 634 | 4.2 | Maximum | 1504 | ||
| 26-Oct-11 | 0.1 | oc dull | 65 | 631 | 0.1 | Minimum | 65 | ||
| 27-Oct-11 | 1.3 | oc | 488 | 628 | 1.4 | Average | 934 | ||
| 28-Oct-11 | 4.6 | sun pt cld | 1504 | 626 | 4.9 | Median | 1090 | ||
| 29-Oct-11 | 4.8 | thn cld am cld l8r pm | 1202 | 622 | 5.1 | Std deviation | 461 | ||
| 30-Oct-11 | 5.7 | sun pt cld pm | 1092 | 620 | 6.1 | ||||
| 31-Oct-11 | 3.4 | thn cld | 944 | 618 | 3.7 | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 97.5 | 20458 | Maximum | 6.1 | |||||
| YTD: | 1398.6 | 4.77 | Minimum | 0.1 | |||||
| Average | 3.1 | ||||||||
| Median | 3.1 | ||||||||
| Std Deviation | 2.1 | ||||||||
