2014 Solar Data
Solar Data Home



Solar Data October 2014

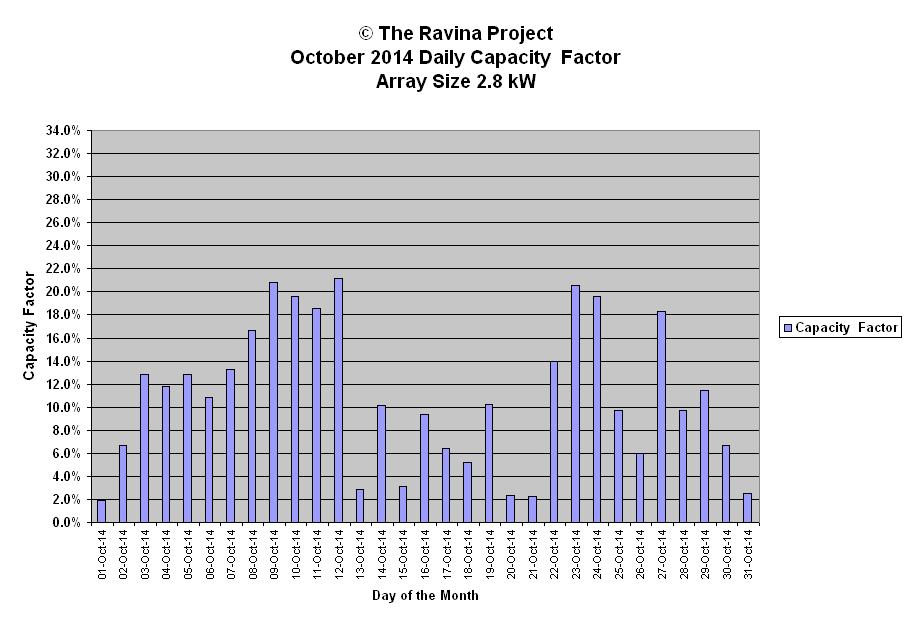

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


October 2014 Energy Generation Analysis The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency Capacity    Array Size 2.8  kW
  Gen   Watts   Wh/min/kW Factor
1-Oct-14 1.3 oc dull 371 702 0.7 1.9%   Generation Analysis kWh
2-Oct-14 4.5 oc dull thn  cld brks 1638 699 2.3 6.7%
3-Oct-14 8.6 sun thn cld am oc pm 2519 696 4.4 12.8%   Total 226.7
4-Oct-14 7.9 sun cld oc mix 3491 693 4.1 11.8%   Average 7.5
5-Oct-14 8.6 sun cld oc mix 3282 691 4.4 12.8%   Median 7.1
6-Oct-14 7.3 oc cld am pt sun pm 2824 688 3.8 10.9%   Stdev 4.1
7-Oct-14 8.9 sun cld rain mix 2893 684 4.6 13.2%
8-Oct-14 11.2 sun cld mix windy 3141 681 5.9 16.7%   WX short forms used
9-Oct-14 14.0 sun pt cld pm 3140 679 7.4 20.8%
10-Oct-14 13.2 sun cldy brks 3201 676 7.0 19.6%   oc - overcast
11-Oct-14 12.5 n/a n/a 673 6.6 18.6%   diff - diffuse light
12-Oct-14 14.2 sun 2538 669 7.6 21.1%   brks - breaks
13-Oct-14 1.9 dull oc 607 667 1.0 2.8%   br - bright
14-Oct-14 6.8 sun thn cld oc pm 2673 664 3.7 10.1%   cld - cloud
15-Oct-14 2.1 oc dull 1228 661 1.1 3.1%   psun - pristine sun
16-Oct-14 6.3 oc am pt sun pm 2724 658 3.4 9.4%   hz - haze pollution or cirrus
17-Oct-14 4.3 oc cld sun brk 3040 655 2.3 6.4%   pds - periods
18-Oct-14 3.5 oc thn cld brks 2300 652 1.9 5.2%   pt - part
19-Oct-14 6.9 sun cld mix 2732 650 3.8 10.3%   wx - weather
20-Oct-14 1.6 oc dull rain 748 646 0.9 2.4%   sml - small
21-Oct-14 1.5 oc dull rain 739 644 0.8 2.2%   mod - moderate
22-Oct-14 9.4 sun cld mix 3285 641 5.2 14.0%
23-Oct-14 13.8 pristine sun 2592 639 7.7 20.5%   Peak Watt Analysis W
24-Oct-14 13.2 sun am thn cld pm 2598 635 7.4 19.6%
25-Oct-14 6.5 sun cld mix 2768 632 3.7 9.7%   Maximum 3491
26-Oct-14 4.0 sun am oc pm 3201 630 2.3 6.0%   Minimum 371
27-Oct-14 12.3 sun thn cld 2613 627 7.0 18.3%   Average 2475
28-Oct-14 6.5 sun cld oc rain mix 2596 624 3.7 9.7%   Median 2724
29-Oct-14 7.7 sun am cld oc pm 3067 622 4.4 11.5%   Std deviation 893
30-Oct-14 4.5 cld sun brks 3225 619 2.6 6.7%
31-Oct-14 1.7 oc dull rain 653 616 1.0 2.5%   Efficiency Analysis Wh/min/kW

Monthly: 226.7     20413 Capacity Factor Analysis   Maximum 7.7
YTD: 3379.4     11.11       Minimum 0.7
        High 21.1%   Average 4.1
        Low 1.9%   Median 3.8
        Average 10.9%   Std Deviation 2.2
        Median 10.3%
        Std Dev 6.2%
