Solar Data September 2008

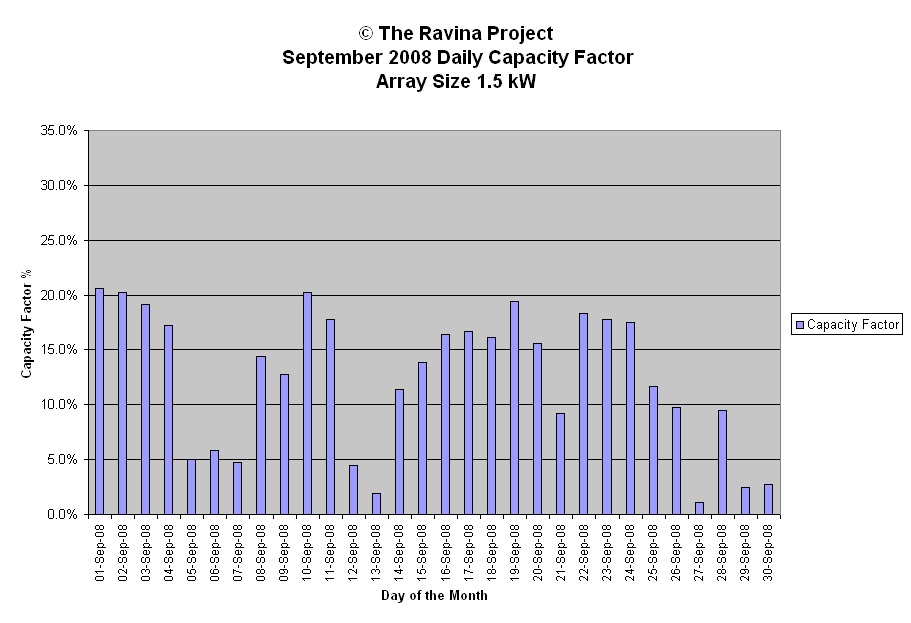

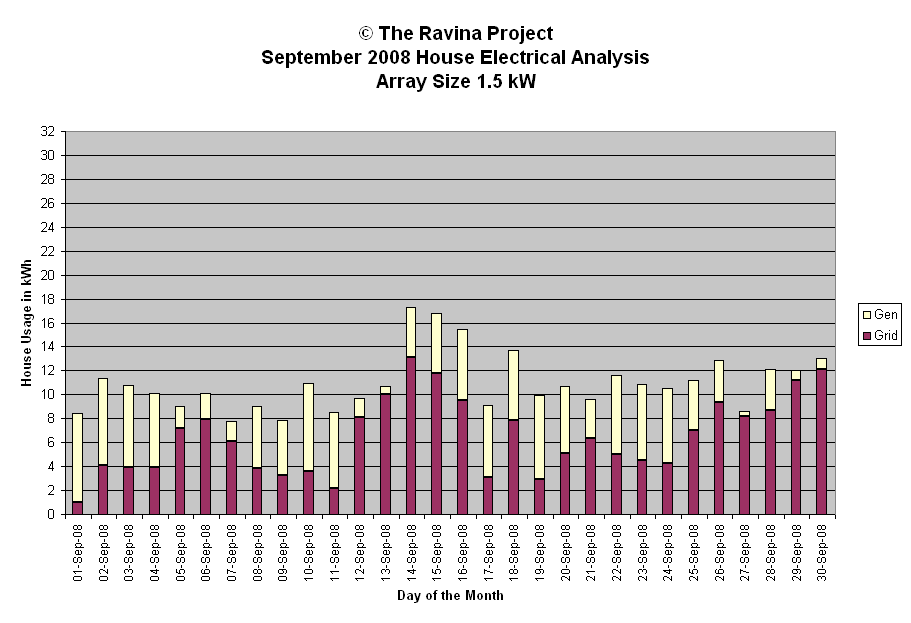

This page contains daily data and graphs of electrical energy use, the daily amount generated and Capacity Factor. Gen refers to the amount generated from the solar array and Grid is the amount we used from the grid.
| September 2008 Energy Generation Analysis | ||||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Sep-08 | 7.4 | pristine sun | 1044 | 791 | 6.2 | 20.6% | Generation Analysis kWh | |||
| 2-Sep-08 | 7.3 | pristine sun | 1053 | 788 | 6.2 | 20.3% | ||||
| 3-Sep-08 | 6.9 | sun hz | 1035 | 785 | 5.9 | 19.2% | Total | 134.6 | ||
| 4-Sep-08 | 6.2 | sun hz cirrus pt cld pm | 1173 | 782 | 5.3 | 17.2% | Average | 4.5 | ||
| 5-Sep-08 | 1.8 | oc | 1119 | 780 | 1.5 | 5.0% | Median | 5.1 | ||
| 6-Sep-08 | 2.1 | oc rainy am sun pm | 1422 | 777 | 1.8 | 5.8% | Stdev | 2.3 | ||
| 7-Sep-08 | 1.7 | oc rain am sun late pm | 1150 | 773 | 1.5 | 4.7% | ||||
| 8-Sep-08 | 5.2 | sun am rain pm | 1282 | 770 | 4.5 | 14.4% | WX short forms used | |||
| 9-Sep-08 | 4.6 | pt sun rain | 1543 | 767 | 4.0 | 12.8% | ||||
| 10-Sep-08 | 7.3 | pristine sun | 1123 | 765 | 6.4 | 20.3% | oc - overcast | |||
| 11-Sep-08 | 6.4 | pristine sun am cld pm | 1145 | 762 | 5.6 | 17.8% | diff - diffuse light | |||
| 12-Sep-08 | 1.6 | oc | 865 | 759 | 1.4 | 4.4% | brks - breaks | |||
| 13-Sep-08 | 0.7 | oc rain | 237 | 756 | 0.6 | 1.9% | br - bright | |||
| 14-Sep-08 | 4.1 | sun oc rain pm | 1249 | 753 | 3.6 | 11.4% | cld - cloud | |||
| 15-Sep-08 | 5.0 | sun pt cld | 1615 | 750 | 4.4 | 13.9% | hi - high altitude | |||
| 16-Sep-08 | 5.9 | sun pristine clds pm | 1441 | 747 | 5.3 | 16.4% | hz - haze pollution or cirrus | |||
| 17-Sep-08 | 6.0 | sun pristine pt cld pm | 1091 | 744 | 5.4 | 16.7% | pds - periods | |||
| 18-Sep-08 | 5.8 | pt sun am sun pm | 1405 | 741 | 5.2 | 16.1% | pt - part | |||
| 19-Sep-08 | 7.0 | sun | 1158 | 738 | 6.3 | 19.4% | wx - weather | |||
| 20-Sep-08 | 5.6 | sun hz hi alt | 1115 | 735 | 5.1 | 15.6% | sml - small | |||
| 21-Sep-08 | 3.3 | cld am sun hz pm | 1460 | 732 | 3.0 | 9.2% | mod - moderate | |||
| 22-Sep-08 | 6.6 | sun | 1081 | 730 | 6.0 | 18.3% | ||||
| 23-Sep-08 | 6.4 | sun | 1037 | 726 | 5.9 | 17.8% | Peak Watt Analysis W | |||
| 24-Sep-08 | 6.3 | sun | 1019 | 723 | 5.8 | 17.5% | ||||
| 25-Sep-08 | 4.2 | sun * | 930 | 720 | 3.9 | 11.7% | Maximum | 1615 | ||
| 26-Sep-08 | 3.5 | sun am oc pm * | 1100 | 717 | 3.3 | 9.7% | Minimum | 237 | ||
| 27-Sep-08 | 0.4 | oc rain * | 259 | 714 | 0.4 | 1.1% | Average | 1099 | ||
| 28-Sep-08 | 3.4 | sun am oc pm * | 1270 | 712 | 3.2 | 9.4% | Median | 1117 | ||
| 29-Sep-08 | 0.9 | oc * | 453 | 709 | 0.8 | 2.5% | Std deviation | 320 | ||
| 30-Sep-08 | 1.0 | oc rain * | 1102 | 705 | 0.9 | 2.8% | ||||
| Efficiency Analysis Wh/min/kW | ||||||||||
| Monthly: | 134.6 | 22451 | Capacity Factor Analysis | |||||||
| YTD: | 1369.9 | 212949 | Maximum | 6.4 | ||||||
| Maximum | 20.6% | Minimum | 0.4 | |||||||
| Minimum | 1.1% | Average | 4.0 | |||||||
| Average | 12.5% | Median | 4.5 | |||||||
| Median | 14.2% | Std Deviation | 2.0 | |||||||
| Std Deviation | 6.3% | |||||||||
