Solar Data September 2009

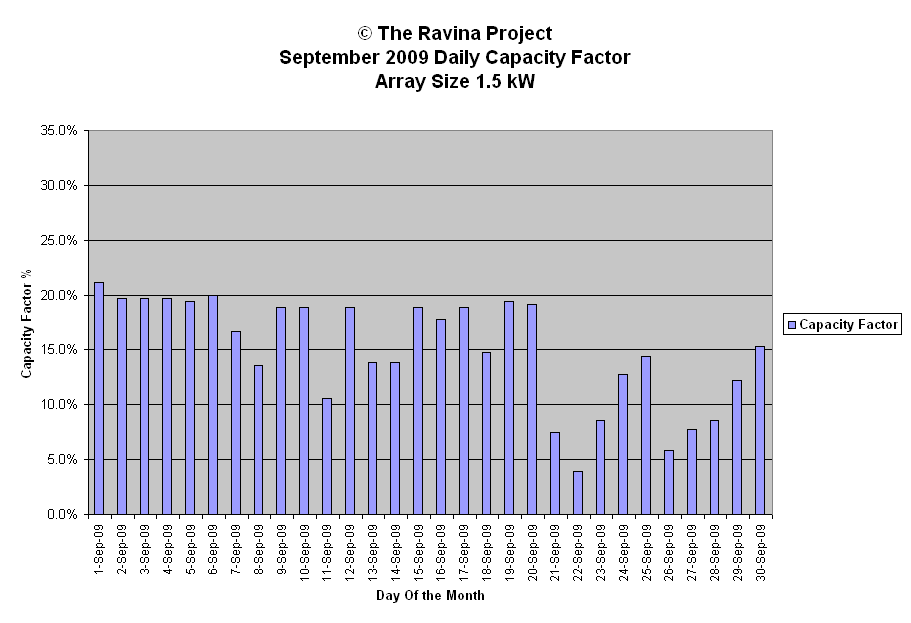

This page contains both generation data and a graph for the month.
| September 2009 Energy Generation Analysis | © Copyright The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Sep-09 | 7.6 | sun | 1084 | 792 | 6.4 | 21.1% | Generation Analysis kWh | |||
| 2-Sep-09 | 7.1 | sun | 1035 | 789 | 6.0 | 19.7% | ||||
| 3-Sep-09 | 7.1 | sun | 1048 | 786 | 6.0 | 19.7% | Total | 162.3 | ||
| 4-Sep-09 | 7.1 | sun | 1056 | 782 | 6.1 | 19.7% | Average | 5.4 | ||
| 5-Sep-09 | 7.0 | sun | 1031 | 780 | 6.0 | 19.4% | Median | 5.8 | ||
| 6-Sep-09 | 7.2 | sun | 1104 | 777 | 6.2 | 20.0% | Stdev | 1.8 | ||
| 7-Sep-09 | 6.0 | sun diff mod hz | 1101 | 774 | 5.2 | 16.7% | ||||
| 8-Sep-09 | 4.9 | oc diffam sun pm | 1243 | 771 | 4.2 | 13.6% | WX short forms used | |||
| 9-Sep-09 | 6.8 | sun hz am sun pm | 1060 | 768 | 5.9 | 18.9% | ||||
| 10-Sep-09 | 6.8 | sun | 1078 | 766 | 5.9 | 18.9% | oc - overcast | |||
| 11-Sep-09 | 3.8 | sun diff am sun pm | 1053 | 763 | 3.3 | 10.6% | diff - diffuse light | |||
| 12-Sep-09 | 6.8 | sun hz am sun pm | 1069 | 759 | 6.0 | 18.9% | brks - breaks | |||
| 13-Sep-09 | 5.0 | sun pt cld am sun pm | 1387 | 756 | 4.4 | 13.9% | br - bright | |||
| 14-Sep-09 | 5.0 | pt cld am sun pm | 1357 | 753 | 4.4 | 13.9% | cld - cloud | |||
| 15-Sep-09 | 6.8 | pristine sun | 1125 | 751 | 6.0 | 18.9% | hi - high altitude | |||
| 16-Sep-09 | 6.4 | sun am pt cld pm | 1487 | 748 | 5.7 | 17.8% | hz - haze pollution or cirrus | |||
| 17-Sep-09 | 6.8 | sun | 1069 | 745 | 6.1 | 18.9% | pds - periods | |||
| 18-Sep-09 | 5.3 | pt cld am sun pm | 1416 | 742 | 4.8 | 14.7% | pt - part | |||
| 19-Sep-09 | 7.0 | pristine sun | 1104 | 739 | 6.3 | 19.4% | wx - weather | |||
| 20-Sep-09 | 6.9 | sun | 1101 | 735 | 6.3 | 19.2% | sml - small | |||
| 21-Sep-09 | 2.7 | oc rain sun | 1359 | 732 | 2.5 | 7.5% | mod - moderate | |||
| 22-Sep-09 | 1.4 | oc rain | 609 | 730 | 1.3 | 3.9% | ||||
| 23-Sep-09 | 3.1 | pt sun | 1203 | 727 | 2.8 | 8.6% | Peak Watt Analysis W | |||
| 24-Sep-09 | 4.6 | sun diff | 1107 | 724 | 4.2 | 12.8% | ||||
| 25-Sep-09 | 5.2 | sun cld brks | 1603 | 721 | 4.8 | 14.4% | Maximum | 1603 | ||
| 26-Sep-09 | 2.1 | sun am oc pm | 1468 | 718 | 1.9 | 5.8% | Minimum | 609 | ||
| 27-Sep-09 | 2.8 | sun cld brks | 1217 | 714 | 2.6 | 7.8% | Average | 1195 | ||
| 28-Sep-09 | 3.1 | cld rain sun | 1336 | 712 | 2.9 | 8.6% | Median | 1106 | ||
| 29-Sep-09 | 4.4 | sun pt cld | 1416 | 709 | 4.1 | 12.2% | Std deviation | 206 | ||
| 30-Sep-09 | 5.5 | sun am diff pm | 1534 | 706 | 5.2 | 15.3% | ||||
| Efficiency Analysis Wh/min/kW | ||||||||||
| Monthly: | 162.3 | 22469 | Capacity Factor Analysis | |||||||
| YTD: | 1462.9 | 213140 | Maximum | 6.4 | ||||||
| Maximum | 21.1% | Minimum | 1.3 | |||||||
| Minimum | 3.9% | Average | 4.8 | |||||||
| Average | 15.0% | Median | 5.2 | |||||||
| Median | 16.0% | Std Deviation | 1.5 | |||||||
| Std Deviation | 4.9% | |||||||||
