Solar Data September 2014

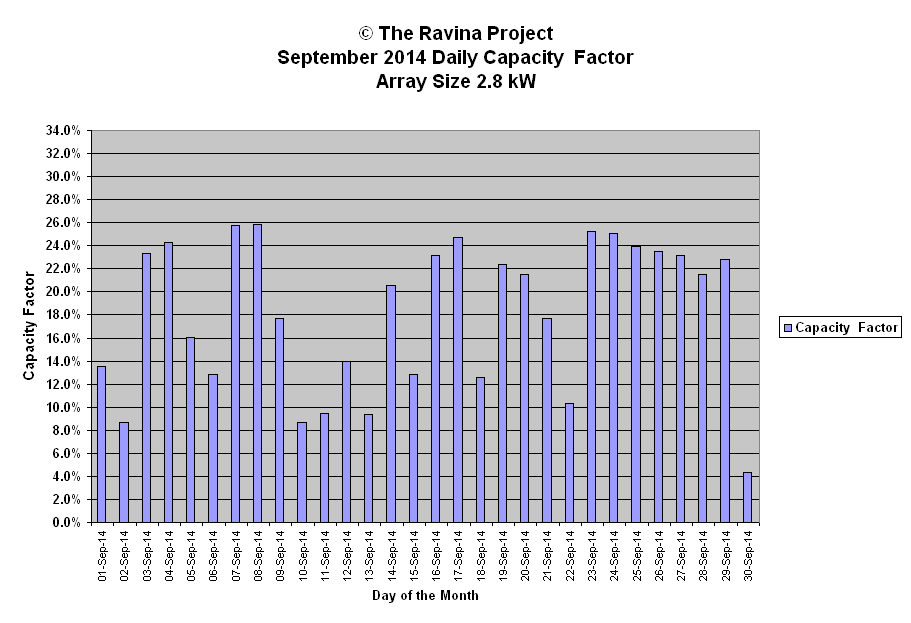

This page contains both generation data and a graph for the month.

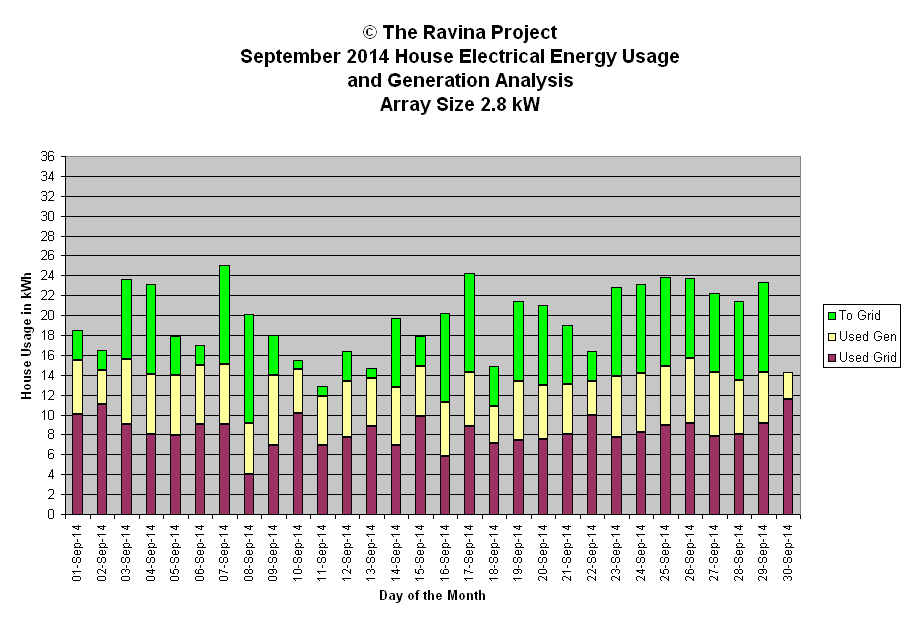

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| September 2014 Energy Generation Analysis | © The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 2.8 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Sep-14 | 8.4 | cld am sun pm | 2677 | 791 | 3.8 | 13.5% | Generation Analysis kWh | |||
| 2-Sep-14 | 5.4 | oc cld sun brks | 2854 | 788 | 2.4 | 8.7% | ||||
| 3-Sep-14 | 14.5 | psun am pt cld pm | 2419 | 785 | 6.6 | 23.3% | Total | 338.9 | ||
| 4-Sep-14 | 15.1 | sun pt cld pm | 2421 | 782 | 6.9 | 24.3% | Average | 11.3 | ||
| 5-Sep-14 | 10.0 | oc am sun pm hot | 2490 | 779 | 4.6 | 16.1% | Median | 13.1 | ||
| 6-Sep-14 | 8.0 | cld am sun brks pm | 3341 | 776 | 3.7 | 12.9% | Stdev | 4.0 | ||
| 7-Sep-14 | 16.0 | pristine sun | 2590 | 774 | 7.4 | 25.7% | ||||
| 8-Sep-14 | 16.1 | pristine sun | 2496 | 771 | 7.5 | 25.9% | WX short forms used | |||
| 9-Sep-14 | 11.0 | sun thn cld mix | 2698 | 768 | 5.1 | 17.7% | psun - pristine sun | |||
| 10-Sep-14 | 5.4 | cld thn cld mix | 1882 | 764 | 2.5 | 8.7% | oc - overcast | |||
| 11-Sep-14 | 5.9 | cld thn cld mix sun brks | 2856 | 761 | 2.8 | 9.5% | diff - diffuse light | |||
| 12-Sep-14 | 8.7 | oc thn cld sun mix | 3356 | 759 | 4.1 | 14.0% | brks - breaks | |||
| 13-Sep-14 | 5.8 | cld sun brks | 3373 | 756 | 2.7 | 9.3% | br - bright | |||
| 14-Sep-14 | 12.8 | sun cld mix | 3382 | 753 | 6.1 | 20.6% | cld - cloud | |||
| 15-Sep-14 | 8.0 | sun / cld am dull pm | 3184 | 750 | 3.8 | 12.9% | hi - high altitude | |||
| 16-Sep-14 | 14.4 | sun | 2992 | 747 | 6.9 | 23.2% | hz - haze pollution or cirrus | |||
| 17-Sep-14 | 15.4 | sun | 2469 | 744 | 7.4 | 24.8% | pds - periods | |||
| 18-Sep-14 | 7.8 | oc am sun pm | 3062 | 740 | 3.8 | 12.5% | pt - part | |||
| 19-Sep-14 | 13.9 | sun thn cld mix | 3128 | 738 | 6.7 | 22.3% | wx - weather | |||
| 20-Sep-14 | 13.4 | sun hz | 2413 | 735 | 6.5 | 21.5% | sml - small | |||
| 21-Sep-14 | 11.0 | rain am pt cld pm | 3014 | 732 | 5.4 | 17.7% | mod - moderate | |||
| 22-Sep-14 | 6.4 | oc am pt sun pm | 3246 | 729 | 3.1 | 10.3% | ||||
| 23-Sep-14 | 15.7 | sun | 2462 | 726 | 7.7 | 25.2% | Peak Watt Analysis W | |||
| 24-Sep-14 | 15.6 | sun | 2438 | 723 | 7.7 | 25.1% | ||||
| 25-Sep-14 | 14.9 | sun | 2451 | 720 | 7.4 | 24.0% | Maximum | 3382 | ||
| 26-Sep-14 | 14.6 | sun | 2371 | 717 | 7.3 | 23.5% | Minimum | 1335 | ||
| 27-Sep-14 | 14.4 | sun | 2363 | 714 | 7.2 | 23.2% | Average | 2693 | ||
| 28-Sep-14 | 13.4 | thn cld / sun mix | 2690 | 711 | 6.7 | 21.5% | Median | 2634 | ||
| 29-Sep-14 | 14.2 | sun | 2331 | 708 | 7.2 | 22.8% | Std deviation | 466 | ||
| 30-Sep-14 | 2.7 | oc dull | 1335 | 706 | 1.4 | 4.3% | ||||
| Efficiency Analysis Wh/min/kW | ||||||||||
| Monthly: | 338.9 | 22447 | Capacity Factor Analysis | |||||||
| YTD: | 3152.7 | Maximum | 7.7 | |||||||
| High | 25.9% | Minimum | 1.4 | |||||||
| Low | 4.3% | Average | 5.4 | |||||||
| Average | 18.2% | Median | 6.3 | |||||||
| Median | 21.1% | Std Deviation | 2.0 | |||||||
| Std Dev | 6.5% | |||||||||
