Solar Data August 2010
This page contains both generation data and a graph for the month.

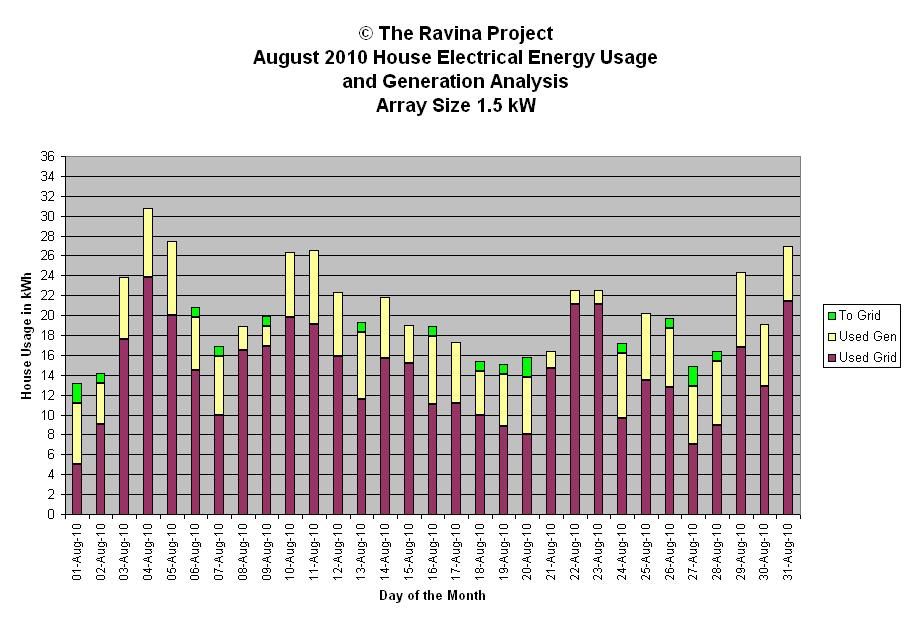

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| August 2010 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Aug-10 | 8.2 | pt cld am sun pm | 1110 | 875 | 6.2 | Generation Analysis kWh | |||
| 2-Aug-10 | 5.1 | oc am pt cld pm | 1312 | 872 | 3.9 | ||||
| 3-Aug-10 | 6.2 | sun hz and diff | 1128 | 870 | 4.8 | Total | 183.9 | ||
| 4-Aug-10 | 6.9 | sun diff am rain oc pm | 1196 | 868 | 5.3 | Average | 5.9 | ||
| 5-Aug-10 | 7.4 | sun am pt cld pm | 1171 | 865 | 5.7 | Median | 6.4 | ||
| 6-Aug-10 | 6.4 | sun diff am pt cld pm | 1493 | 862 | 4.9 | Stdev | 2.0 | ||
| 7-Aug-10 | 6.9 | sun am pt cld pm | 1436 | 860 | 5.3 | ||||
| 8-Aug-10 | 2.4 | oc rain br diff am sun pm | 1260 | 858 | 1.9 | WX short forms used | |||
| 9-Aug-10 | 3.0 | oc rain am sun pt cld pm | 1209 | 855 | 2.3 | ||||
| 10-Aug-10 | 6.5 | mixed sun/cld/diff | 1201 | 853 | 5.1 | oc - overcast | |||
| 11-Aug-10 | 7.4 | mixed sun/cld/diff | 1031 | 850 | 5.8 | diff - diffuse light | |||
| 12-Aug-10 | 6.4 | mixed sun cld | 1279 | 848 | 5.0 | brks - breaks | |||
| 13-Aug-10 | 7.7 | sun | 1053 | 845 | 6.1 | br - bright | |||
| 14-Aug-10 | 6.1 | sun | 1298 | 842 | 4.8 | cld - cloud | |||
| 15-Aug-10 | 3.8 | sun | 1217 | 839 | 3.0 | hi - high altitude | |||
| 16-Aug-10 | 7.8 | sun milky hz | 1303 | 837 | 6.2 | hz - haze pollution or cirrus | |||
| 17-Aug-10 | 6.1 | sun smog hz | 1339 | 834 | 4.9 | pds - periods | |||
| 18-Aug-10 | 5.5 | sun smog hz cld | 1593 | 832 | 4.4 | pt - part | |||
| 19-Aug-10 | 6.2 | oc cld am sun pm | 1220 | 829 | 5.0 | wx - weather | |||
| 20-Aug-10 | 7.8 | mixed sun cld late rain | 1134 | 827 | 6.3 | sml - small | |||
| 21-Aug-10 | 1.7 | cld oc am sun pt cld pm | 501 | 824 | 1.4 | mod - moderate | |||
| 22-Aug-10 | 1.4 | sun am pt sun diff pm | 783 | 820 | 1.1 | ||||
| 23-Aug-10 | 1.4 | sun diff cirrus oc | 1154 | 818 | 1.1 | Peak Watt Analysis W | |||
| 24-Aug-10 | 7.5 | sun cld oc | 1223 | 815 | 6.1 | ||||
| 25-Aug-10 | 6.7 | sun | 1241 | 812 | 5.5 | Maximum | 1593 | ||
| 26-Aug-10 | 6.9 | oc rain am pristine sun pm | 1588 | 810 | 5.7 | Minimum | 501 | ||
| 27-Aug-10 | 7.8 | sun cirrus | 1258 | 807 | 6.4 | Average | 1186 | ||
| 28-Aug-10 | 7.5 | sun diff oc | 1033 | 804 | 6.2 | Median | 1209 | ||
| 29-Aug-10 | 7.5 | oc rain am pt sun pm | 1042 | 800 | 6.3 | Std deviation | 216 | ||
| 30-Aug-10 | 6.2 | oc am sun brks pm | 997 | 798 | 5.2 | ||||
| 31-Aug-10 | 5.5 | sun | 955 | 795 | 4.6 | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 25924 | Maximum | 6.4 | ||||||
| Minimum | 1.1 | ||||||||
| Average | 4.7 | ||||||||
| Median | 5.1 | ||||||||
| Std Deviation | 1.6 | ||||||||
