Solar Data August 2015
This page contains both generation data and a graph for the month.

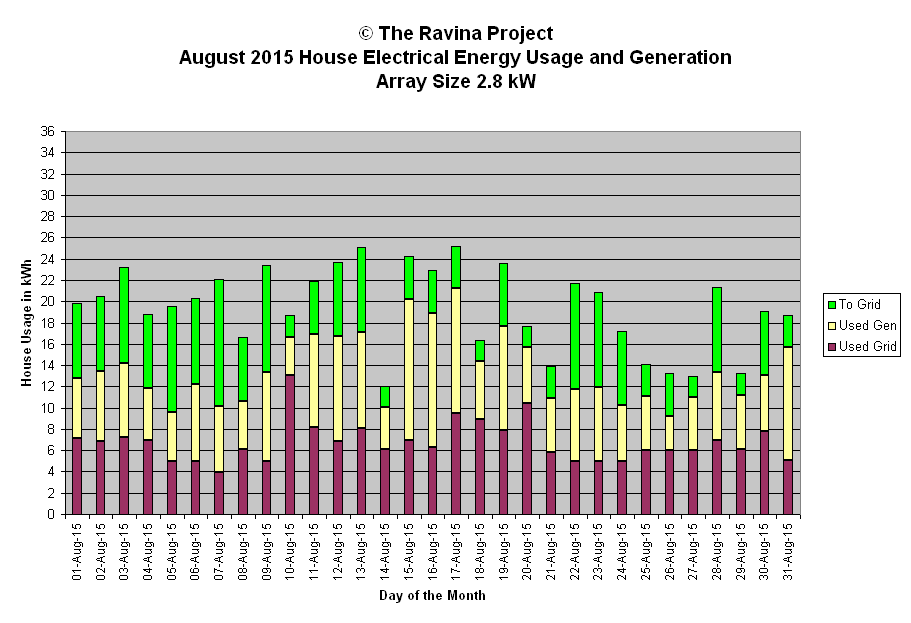

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| August 2015 Energy Generation Analysis | © The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 2.8 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-Aug-15 | 12.7 | sun cld mix | 2227 | 873 | 5.2 | 20.4% | Generation Analysis kWh | |||
| 2-Aug-15 | 13.6 | sun cld mix | 2353 | 871 | 5.6 | 21.9% | ||||
| 3-Aug-15 | 16.0 | sun cld mix | 1503 | 869 | 6.6 | 25.7% | Total | 392.0 | ||
| 4-Aug-15 | 11.9 | sun cld brks rain | 2489 | 866 | 4.9 | 19.1% | Average | 12.6 | ||
| 5-Aug-15 | 14.6 | sun cld mix | 2334 | 864 | 6.0 | 23.5% | Median | 13.6 | ||
| 6-Aug-15 | 15.3 | sun cld mix | 2716 | 862 | 6.3 | 24.6% | Stdev | 4.1 | ||
| 7-Aug-15 | 18.2 | sun | 2166 | 859 | 7.6 | 29.3% | ||||
| 8-Aug-15 | 10.5 | cld AM sun PM | 2197 | 857 | 4.4 | 16.9% | WX short forms used | |||
| 9-Aug-15 | 18.4 | psun | 2344 | 853 | 7.7 | 29.6% | ||||
| 10-Aug-15 | 5.6 | cld rain sun brks | 2389 | 851 | 2.4 | 9.0% | oc - overcast | |||
| 11-Aug-15 | 13.7 | sun cld rain mix | 2394 | 849 | 5.8 | 22.0% | diff - diffuse light | |||
| 12-Aug-15 | 16.9 | pt cld AM sun PM | 2833 | 846 | 7.1 | 27.2% | brks - breaks | |||
| 13-Aug-15 | 17.0 | pt cld AM sun PM | 3330 | 844 | 7.2 | 27.3% | br - bright | |||
| 14-Aug-15 | 6.0 | cld brks diffuse mix | 3270 | 841 | 2.5 | 9.6% | cld - cloud | |||
| 15-Aug-15 | 17.3 | sun | 3311 | 839 | 7.4 | 27.8% | hi - high altitude | |||
| 16-Aug-15 | 16.6 | sun haze | 2661 | 836 | 7.1 | 26.7% | hz - haze pollution or cirrus | |||
| 17-Aug-15 | 15.7 | sun haze | 3155 | 832 | 6.7 | 25.2% | pds - periods | |||
| 18-Aug-15 | 7.4 | br diffuse | 2784 | 830 | 3.2 | 11.9% | pt - part | |||
| 19-Aug-15 | 15.7 | sun cld brks | 2486 | 827 | 6.8 | 25.2% | wx - weather | |||
| 20-Aug-15 | 7.3 | sun cld rain | 2637 | 825 | 3.2 | 11.7% | sml - small | |||
| 21-Aug-15 | 8.1 | cld AM sun PM | 3096 | 822 | 3.5 | 13.0% | mod - moderate | |||
| 22-Aug-15 | 16.7 | sun | 2931 | 819 | 7.3 | 26.8% | ||||
| 23-Aug-15 | 15.9 | cld AM sun l8r | 1693 | 817 | 7.0 | 25.6% | Peak Watt Analysis W | |||
| 24-Aug-15 | 12.2 | pt AM sun PM | 3156 | 814 | 5.4 | 19.6% | ||||
| 25-Aug-15 | 8.1 | cld sun brks | 2415 | 810 | 3.6 | 13.0% | Maximum | 3330 | ||
| 26-Aug-15 | 7.2 | cld sun brk | 2451 | 808 | 3.2 | 11.6% | Minimum | 1503 | ||
| 27-Aug-15 | 7.0 | cld sun brk | 3017 | 805 | 3.1 | 11.3% | Average | 2640 | ||
| 28-Aug-15 | 14.4 | sun | 2855 | 802 | 6.4 | 23.2% | Median | 2637 | ||
| 29-Aug-15 | 7.1 | oc br diff sun brk | 3324 | 800 | 3.2 | 11.4% | Std deviation | 454 | ||
| 30-Aug-15 | 11.3 | sun cld mix | 2584 | 797 | 5.1 | 18.2% | ||||
| 31-Aug-15 | 13.6 | sun cld haze | 2724 | 794 | 6.1 | 21.9% | Efficiency Analysis Wh/min/kW | |||

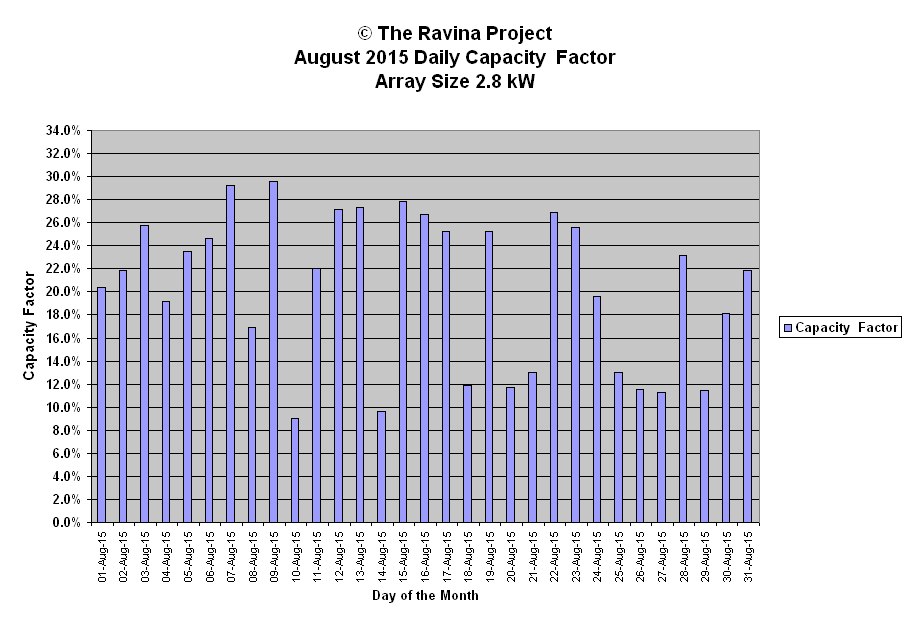

| Monthly: | 392.0 | 25882 | Capacity Factor Analysis | Maximum | 7.7 | |||||
| YTD: | 2936.9 | Minimum | 2.4 | |||||||
| High | 29.6% | Average | 5.4 | |||||||
| Low | 9.0% | Median | 5.8 | |||||||
| Average | 20.3% | Std Deviation | 1.7 | |||||||
| Median | 21.9% | |||||||||
| Std Dev | 6.6% | |||||||||
