2010 Solar Data
Solar Data Home



Solar Data December 2010

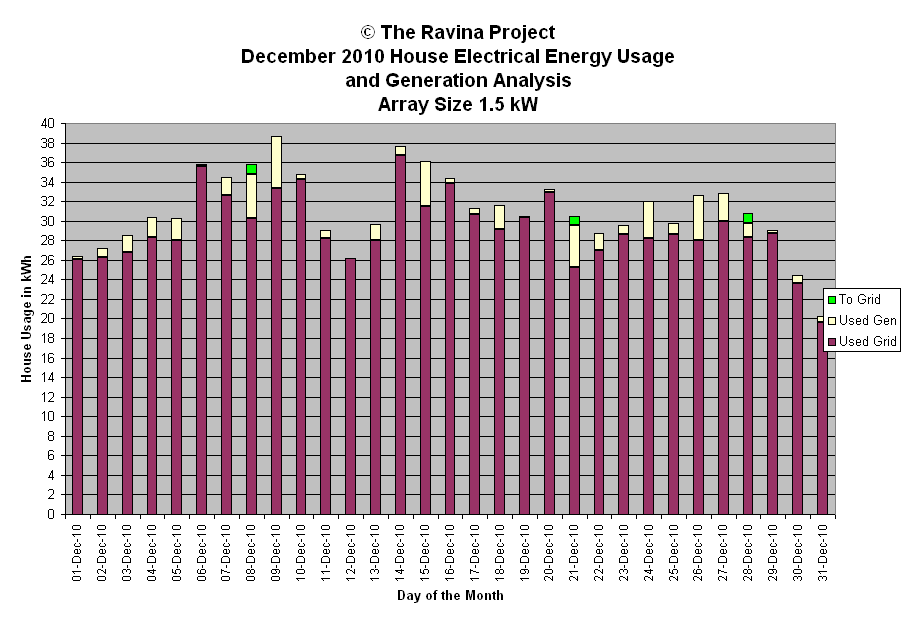

This page contains both generation data and a graph for the month.

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.


December 2010 Power Generation Analysis © The Ravina Project
Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
1-Dec-10 0.3 cld am pt sun pm 213 551 0.4   Generation Analysis kWh
2-Dec-10 0.9 sun am cld pm 732 549 1.1
3-Dec-10 1.8 cld sun brks pm 1207 547 2.2   Total 57.2
4-Dec-10 2.1 sun am cld pm 1512 546 2.6   Average 1.8
5-Dec-10 2.3 oc am diff pm 1139 545 2.8   Median 1.1
6-Dec-10 0.3 sun am cld pm 87 543 0.4   Stdev 1.7
7-Dec-10 1.8 oc am diff pm 1509 542 2.2
8-Dec-10 5.5 sun am oc pm 1210 541 6.8   WX short forms used
9-Dec-10 5.4 oc rain 1150 541 6.7
10-Dec-10 0.5 sun am oc pm 602 540 0.6   oc - overcast
11-Dec-10 0.8 sun 440 539 1.0   diff - diffuse light
12-Dec-10 0.0 sun cld 54 538 0.0   brks - breaks
13-Dec-10 1.7 oc 1229 537 2.1   br - bright
14-Dec-10 0.9 oc rain 314 537 1.1   cld - cloud
15-Dec-10 4.6 oc sun am 1113 537 5.7   hi - high altitude
16-Dec-10 0.5 sun oc pm 1175 536 0.6   hz - haze pollution or cirrus
17-Dec-10 0.6 sun 1186 535 0.7   pds - periods
18-Dec-10 2.5 oc 566 536 3.1   pt - part
19-Dec-10 0.1 oc 771 535 0.1   wx - weather
20-Dec-10 0.3 oc am sun pm 1253 535 0.4   sml - small
21-Dec-10 5.2 oc 204 535 6.5   mod - moderate
22-Dec-10 1.7 sun 1213 535 2.1
23-Dec-10 0.9 cld am sun pm 1413 535 1.1   Peak Watt Analysis W
24-Dec-10 3.8 oc  94 535 4.7
25-Dec-10 1.1 oc rain 160 535 1.4   Maximum 1512
26-Dec-10 4.6 oc 154 536 5.7   Minimum 54
27-Dec-10 2.9 oc 447 536 3.6   Average 802
28-Dec-10 2.4 oc sun brks am 1200 537 3.0   Median 967
29-Dec-10 0.3 pt sun 1426 537 0.4   Std deviation 504
30-Dec-10 0.8 cld 967 538 1.0
31-Dec-10 0.6 oc 115 539 0.7   Efficiency Analysis Wh/min/kW

Monthly: 57.2     16708     Maximum 6.8
YTD: 1675.4           Minimum 0.0
Yearly: 1675.4           Average 2.3
            Median 1.4
            Std Deviation 2.1
