Solar Data January 2010

This page contains both generation data and a graph for the month.

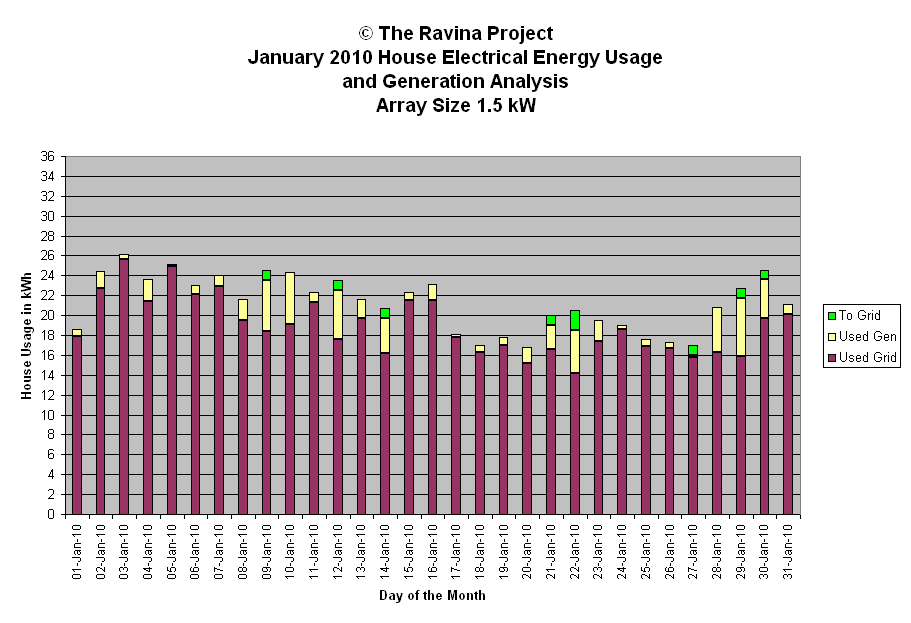

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.

January 2010 Power Generation Analysis The Ravina Project

Day  kWh Weather Peak  Minutes Efficiency   Array Size 1.5  kW
  Gen   Watts   Wh/min/kW
01-Jan-10 0.7 oc 243 540 0.9   Generation Analysis kWh
02-Jan-10 1.7 sun am oc pm 1017 541 2.1
03-Jan-10 0.5 oc snow cold 165 542 0.6   Total 71.9
04-Jan-10 2.2 pt sun 1335 543 2.7   Average 2.3
05-Jan-10 0.2 oc snow covered 93 544 0.2   Median 1.6
06-Jan-10 0.9 oc am pt sun pm 727 545 1.1   Stdev 2.1
07-Jan-10 1.1 oc sun brks 622 546 1.3
08-Jan-10 2.1 bright diff sun brks 767 547 2.6   WX short forms used
09-Jan-10 6.1 cold sun 1277 548 7.4
10-Jan-10 5.3 cold sun 1240 550 6.4   oc - overcast
11-Jan-10 1.0 diff oc 470 551 1.2   diff - diffuse light
12-Jan-10 5.9 sun cold 1239 552 7.1   brks - breaks
13-Jan-10 2.0 oc am pt sun pm 1206 555 2.4   br - bright
14-Jan-10 4.5 diff am sun hz pm 1229 556 5.4   cld - cloud
15-Jan-10 0.8 oc sun brks am 1288 558 1.0   hi - high altitude
16-Jan-10 1.6 oc sun brks 1122 559 1.9   hz - haze, pollution or cirrus
17-Jan-10 0.3 oc 99 561 0.4   pds - periods
18-Jan-10 0.7 oc 478 564 0.8   pt - part
19-Jan-10 0.8 oc 252 565 0.9   wx - weather
20-Jan-10 1.6 oc am sun pm 1343 567 1.9   sml - small
21-Jan-10 3.4 sun am oc pm 1578 570 4.0   mod - moderate
22-Jan-10 6.3 sun 1244 571 7.4
23-Jan-10 2.1 sun am oc pm 1443 573 2.4   Peak Watt Analysis W
24-Jan-10 0.4 diff am oc pm 436 576 0.5
25-Jan-10 0.7 oc diff pm 1150 578 0.8   Maximum 1578
26-Jan-10 0.6 oc 225 580 0.7   Minimum 93
27-Jan-10 1.2 oc am sun pm 1357 583 1.4   Average 929
28-Jan-10 4.5 sun cld brks cold 1424 585 5.1   Median 1175
29-Jan-10 6.8 sun cold 1282 587 7.7   Std deviation 475
30-Jan-10 4.9 sun hz cld 1269 590 5.5
31-Jan-10 1.0 sun brks am oc pm 1175 592 1.1   Efficiency Analysis Wh/min/kW

Monthly:       17419     Maximum 7.7
            Minimum 0.2
            Average 2.7
            Median 1.9
              Std Deviation 2.4
