Solar Data July 2010
This page contains both generation data and a graph for the month.

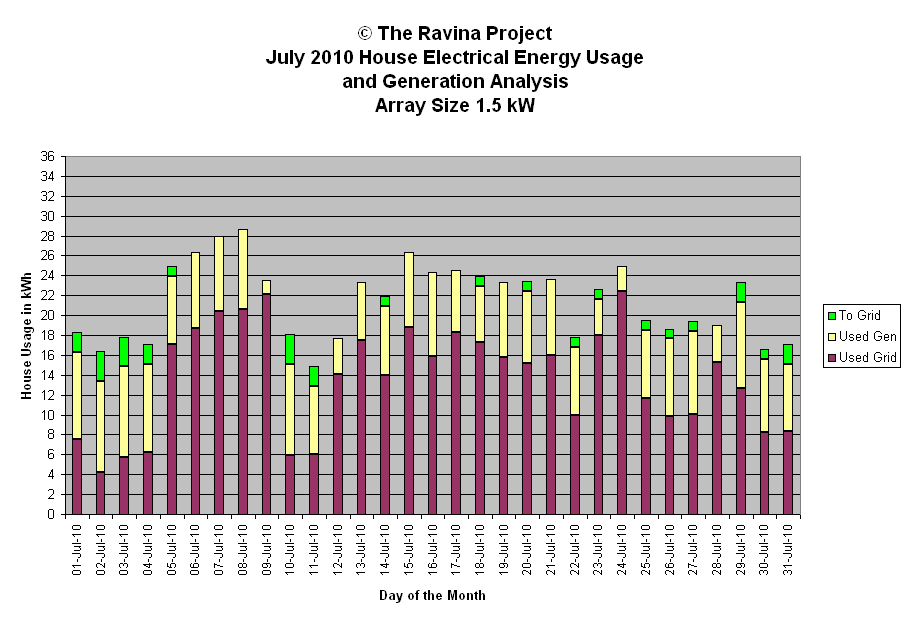

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| July 2010 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Jul-10 | 8.7 | pt cld | 1530 | 924 | 6.3 | Generation Analysis kWh | |||
| 2-Jul-10 | 9.2 | pt sun | 1085 | 923 | 6.6 | ||||
| 3-Jul-10 | 9.1 | pt sun | 1063 | 922 | 6.6 | Total | 212.5 | ||
| 4-Jul-10 | 8.9 | pt cld | 1053 | 921 | 6.4 | Average | 6.9 | ||
| 5-Jul-10 | 6.9 | sun | 1158 | 920 | 5.0 | Median | 7.3 | ||
| 6-Jul-10 | 7.7 | pot sun am cld pm | 1096 | 920 | 5.6 | Stdev | 2.0 | ||
| 7-Jul-10 | 7.6 | diff oc am pt cld pm | 1027 | 918 | 5.5 | ||||
| 8-Jul-10 | 8.0 | sun and cld | 964 | 917 | 5.8 | WX short forms used | |||
| 9-Jul-10 | 1.4 | sun | 990 | 916 | 1.0 | ||||
| 10-Jul-10 | 9.1 | sun am diff pm | 1085 | 915 | 6.6 | oc - overcast | |||
| 11-Jul-10 | 6.9 | rain am sun pt cld pm | 1033 | 913 | 5.0 | diff - diffuse light | |||
| 12-Jul-10 | 3.6 | sun am pt sun pm | 1139 | 912 | 2.6 | brks - breaks | |||
| 13-Jul-10 | 5.9 | sun am pt cld pm | 1311 | 910 | 4.3 | br - bright | |||
| 14-Jul-10 | 6.9 | sun | 1228 | 909 | 5.1 | cld - cloud | |||
| 15-Jul-10 | 7.5 | sun am rain pm | 1249 | 908 | 5.5 | hi - high altitude | |||
| 16-Jul-10 | 8.4 | sun am pt cld pm | 1155 | 906 | 6.2 | hz - haze pollution or cirrus | |||
| 17-Jul-10 | 6.3 | oc | 1309 | 905 | 4.6 | pds - periods | |||
| 18-Jul-10 | 5.6 | sun am pt cld rain pm | 1457 | 903 | 4.1 | pt - part | |||
| 19-Jul-10 | 7.6 | mixed sun hz oc | 1479 | 901 | 5.6 | wx - weather | |||
| 20-Jul-10 | 7.3 | sun hz diff | 1341 | 899 | 5.4 | sml - small | |||
| 21-Jul-10 | 7.6 | diff am rain pm | 1190 | 897 | 5.6 | mod - moderate | |||
| 22-Jul-10 | 6.8 | oc am diff pm | 1234 | 895 | 5.1 | ||||
| 23-Jul-10 | 3.6 | oc rain am pt sun pm | 1357 | 893 | 2.7 | Peak Watt Analysis W | |||
| 24-Jul-10 | 2.5 | variable sun | 1144 | 891 | 1.9 | ||||
| 25-Jul-10 | 6.9 | diff oc rain, sun late pm | 1333 | 889 | 5.2 | Maximum | 1530 | ||
| 26-Jul-10 | 7.8 | sun diff rain | 1182 | 887 | 5.9 | Minimum | 964 | ||
| 27-Jul-10 | 8.4 | mixed sun cld | 1031 | 885 | 6.3 | Average | 1207 | ||
| 28-Jul-10 | 3.7 | sun diff am clear pm | 1290 | 883 | 2.8 | Median | 1184 | ||
| 29-Jul-10 | 8.6 | oc rain | 1184 | 881 | 6.5 | Std deviation | 151 | ||
| 30-Jul-10 | 7.3 | sun cirrus hz | 1436 | 879 | 5.5 | ||||
| 31-Jul-10 | 6.7 | mixed sun cld | 1285 | 877 | 5.1 | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 28019 | Maximum | 6.6 | ||||||
| Minimum | 1.0 | ||||||||
| Average | 5.1 | ||||||||
| Median | 5.5 | ||||||||
| Std Deviation | 1.5 | ||||||||
