Solar Data June 2010

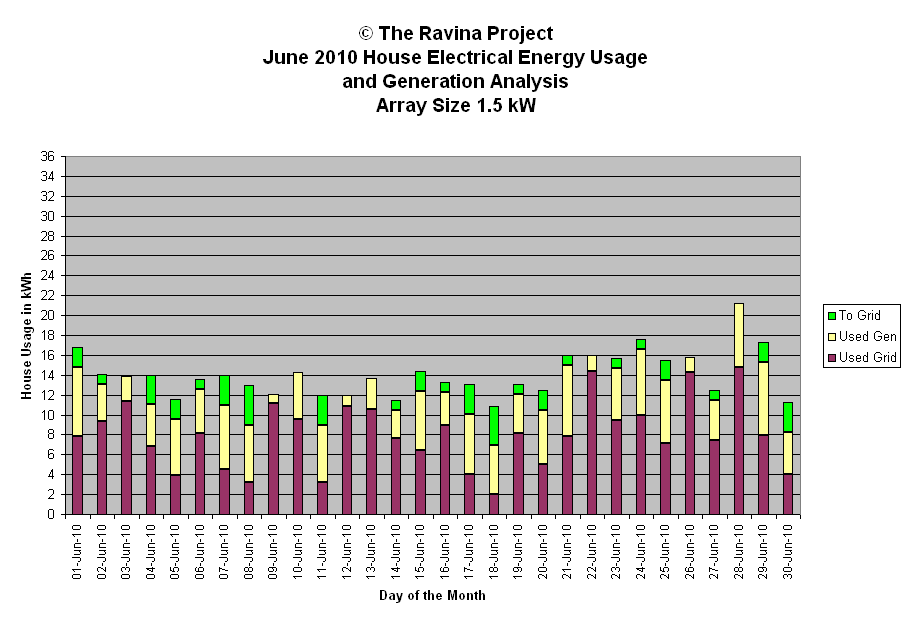

This page contains both generation data and a graph for the month.
Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| June 2010 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Jun-10 | 9.0 | sun oc early am | 1123 | 914 | 6.6 | Generation Analysis kWh | |||
| 2-Jun-10 | 4.8 | sun diff rain pm | 1190 | 915 | 3.5 | ||||
| 3-Jun-10 | 2.6 | pt sun diff am oc pm | 962 | 916 | 1.9 | Total | 182.3 | ||
| 4-Jun-10 | 7.2 | cld am sun pm | 1255 | 918 | 5.2 | Average | 6.1 | ||
| 5-Jun-10 | 7.6 | sun cld pm | 1258 | 919 | 5.5 | Median | 6.8 | ||
| 6-Jun-10 | 5.5 | cld am pt cld pm | 1444 | 920 | 4.0 | Stdev | 2.7 | ||
| 7-Jun-10 | 9.4 | sun cool pt cld | 1449 | 921 | 6.8 | ||||
| 8-Jun-10 | 9.7 | sun pristine cool | 1257 | 922 | 7.0 | WX short forms used | |||
| 9-Jun-10 | 0.9 | oc rain | 208 | 922 | 0.7 | ||||
| 10-Jun-10 | 4.8 | oc diff am pt cld pm | 1259 | 924 | 3.5 | oc - overcast | |||
| 11-Jun-10 | 8.7 | cld early am sun pm | 1222 | 924 | 6.3 | diff - diffuse light | |||
| 12-Jun-10 | 1.1 | oc | 432 | 925 | 0.8 | brks - breaks | |||
| 13-Jun-10 | 3.1 | oc | 1238 | 925 | 2.2 | br - bright | |||
| 14-Jun-10 | 3.8 | diff am pt sun pm | 1350 | 926 | 2.7 | cld - cloud | |||
| 15-Jun-10 | 8.0 | sun cirrus am | 1355 | 926 | 5.8 | hi - high altitude | |||
| 16-Jun-10 | 4.3 | oc am pt sun pm | 1384 | 927 | 3.1 | hz - haze pollution or cirrus | |||
| 17-Jun-10 | 9.0 | sun | 1142 | 927 | 6.5 | pds - periods | |||
| 18-Jun-10 | 8.9 | sun | 1063 | 927 | 6.4 | pt - part | |||
| 19-Jun-10 | 5.0 | oc am pt cld pm | 1430 | 927 | 3.6 | wx - weather | |||
| 20-Jun-10 | 7.4 | sun cld pt sun pt cld pm | 1371 | 928 | 5.3 | sml - small | |||
| 21-Jun-10 | 8.1 | cirrus am sun pm | 1161 | 927 | 5.8 | mod - moderate | |||
| 22-Jun-10 | 1.6 | oc sun late pm | 945 | 927 | 1.2 | ||||
| 23-Jun-10 | 6.3 | sun cirrus am oc pt sun | 1166 | 927 | 4.5 | Peak Watt Analysis W | |||
| 24-Jun-10 | 7.7 | oc am pristine sun pm | 1468 | 927 | 5.5 | ||||
| 25-Jun-10 | 8.4 | sun thin cld am | 1182 | 926 | 6.0 | Maximum | 1609 | ||
| 26-Jun-10 | 1.5 | oc diff am pt cld pm | 408 | 926 | 1.1 | Minimum | 136 | ||
| 27-Jun-10 | 5.0 | sun cld diff | 1377 | 925 | 3.6 | Average | 1145 | ||
| 28-Jun-10 | 6.4 | diff am pt cld pm | 136 | 925 | 4.6 | Median | 1247 | ||
| 29-Jun-10 | 9.3 | pristine sun pt cld | 1506 | 925 | 6.7 | Std deviation | 374 | ||
| 30-Jun-10 | 7.2 | sun am pt cld pm | 1609 | 924 | 5.2 | ||||
| Efficiency Analysis Wh/min/kW | |||||||||
| Monthly: | 27712 | ||||||||
| Maximum | 7.0 | ||||||||
| Minimum | 0.7 | ||||||||
| Average | 4.4 | ||||||||
| Median | 4.9 | ||||||||
| Std Deviation | 2.0 | ||||||||
