Solar Data March 2010
This page contains both generation data and a graph for the month.

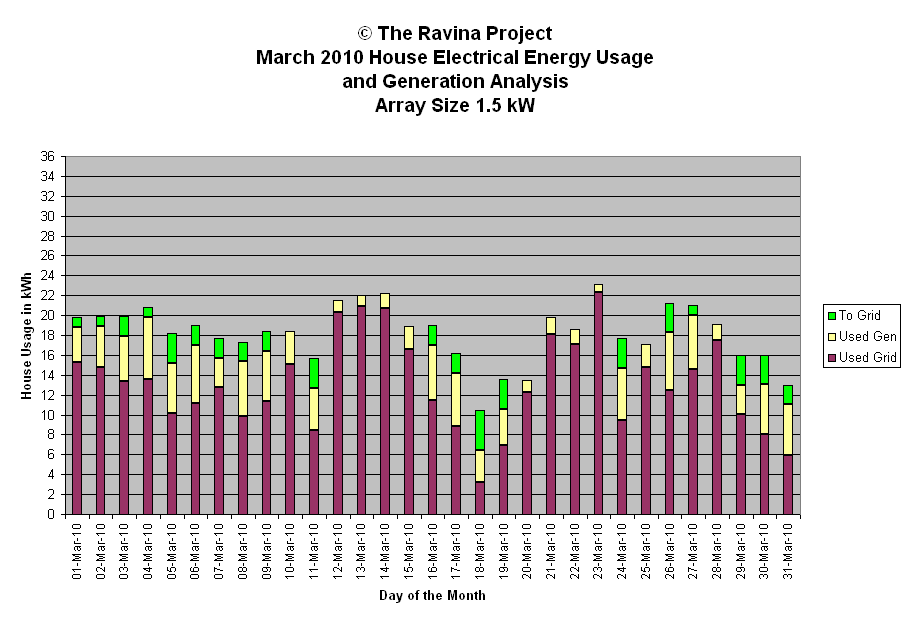

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| March 2010 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Mar-10 | 4.6 | oc am pt cld pm | 1595 | 672 | 4.6 | Generation Analysis kWh | |||
| 2-Mar-10 | 5.2 | oc sun pm | 1567 | 675 | 5.1 | ||||
| 3-Mar-10 | 6.5 | sun thin cld | 1337 | 678 | 6.4 | Total | 157.8 | ||
| 4-Mar-10 | 7.2 | sun thin cld brks | 1307 | 681 | 7.0 | Average | 5.1 | ||
| 5-Mar-10 | 8.0 | sun | 1296 | 684 | 7.8 | Median | 6.4 | ||
| 6-Mar-10 | 7.8 | sun | 1253 | 687 | 7.6 | Stdev | 2.7 | ||
| 7-Mar-10 | 4.9 | cld am sun pm | 1188 | 690 | 4.7 | ||||
| 8-Mar-10 | 7.5 | sun | 1185 | 693 | 7.2 | WX short forms used | |||
| 9-Mar-10 | 7.1 | sun cirrus pm | 1144 | 696 | 6.8 | ||||
| 10-Mar-10 | 3.3 | sun cirrus / oc pm | 1011 | 699 | 3.1 | oc - overcast | |||
| 11-Mar-10 | 7.2 | sun cirrus | 1157 | 702 | 6.8 | diff - diffuse light | |||
| 12-Mar-10 | 1.2 | oc rain sun brks | 1089 | 705 | 1.1 | brks - breaks | |||
| 13-Mar-10 | 1.1 | oc | 248 | 708 | 1.0 | br - bright | |||
| 14-Mar-10 | 1.5 | oc | 586 | 712 | 1.4 | cld - cloud | |||
| 15-Mar-10 | 2.3 | coc am pt sun pm | 778 | 714 | 2.1 | hi - high altitude | |||
| 16-Mar-10 | 7.5 | sun hz pm | 1156 | 717 | 7.0 | hz - haze pollution or cirrus | |||
| 17-Mar-10 | 7.4 | sun | 1137 | 720 | 6.9 | pds - periods | |||
| 18-Mar-10 | 7.2 | sun diff am sun pm | 1165 | 724 | 6.6 | pt - part | |||
| 19-Mar-10 | 6.6 | sun thin cld | 1404 | 727 | 6.1 | wx - weather | |||
| 20-Mar-10 | 1.3 | oc | 407 | 729 | 1.2 | sml - small | |||
| 21-Mar-10 | 1.7 | oc | 326 | 732 | 1.5 | mod - moderate | |||
| 22-Mar-10 | 1.5 | oc/rain | 546 | 735 | 1.4 | ||||
| 23-Mar-10 | 0.8 | oc | 215 | 739 | 0.7 | Peak Watt Analysis W | |||
| 24-Mar-10 | 8.2 | sun pristine | 1236 | 742 | 7.4 | ||||
| 25-Mar-10 | 2.3 | oc diff | 467 | 744 | 2.1 | Maximum | 1677 | ||
| 26-Mar-10 | 8.8 | sun cold | 1292 | 747 | 7.9 | Minimum | 215 | ||
| 27-Mar-10 | 6.4 | sun diff am sun pm | 1175 | 750 | 5.7 | Average | 1030 | ||
| 28-Mar-10 | 1.7 | oc cld | 512 | 754 | 1.5 | Median | 1165 | ||
| 29-Mar-10 | 5.9 | cld am sun pm | 1677 | 757 | 5.2 | Std deviation | 410 | ||
| 30-Mar-10 | 8.0 | sun thin cld | 1288 | 759 | 7.0 | ||||
| 31-Mar-10 | 7.1 | sun thin cld | 1181 | 762 | 6.2 | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 22234 | Maximum | 7.9 | ||||||
| Minimum | 0.7 | ||||||||
| Average | 4.7 | ||||||||
| Median | 5.7 | ||||||||
| Std Deviation | 2.6 | ||||||||
