Solar Data May 2015

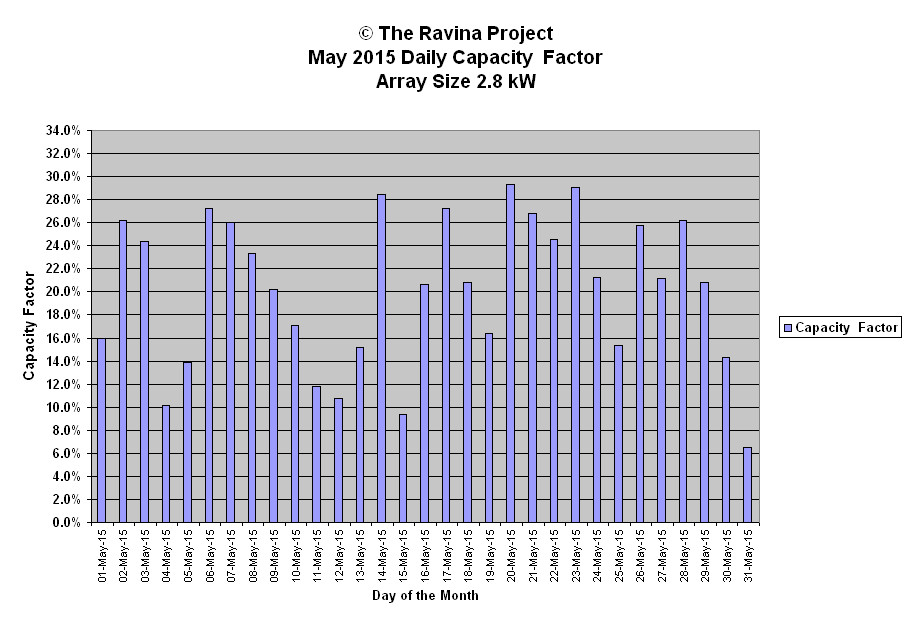

This page contains both generation data and a graph for the month.

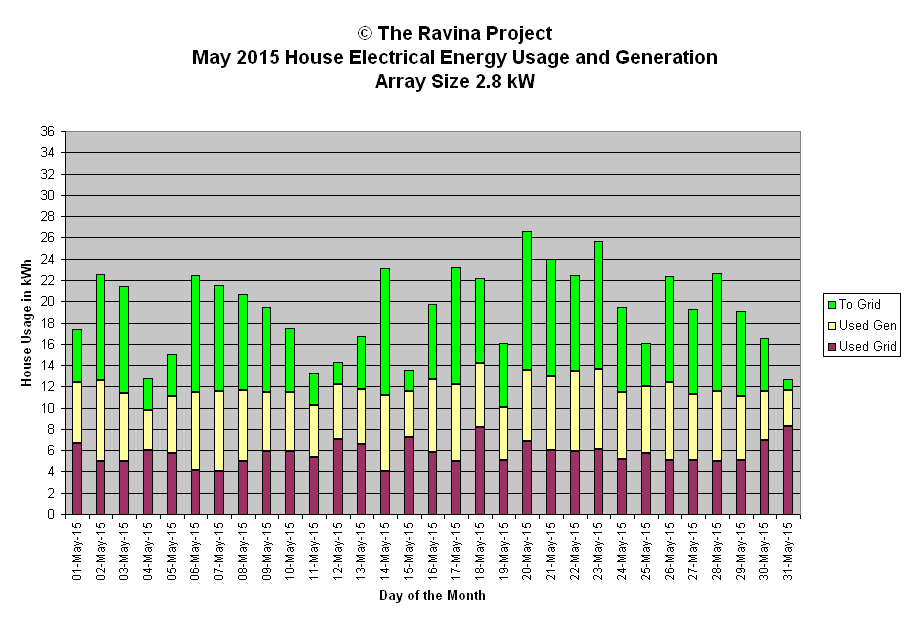

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| May 2015 Energy Generation Analysis | © The Ravina Project | |||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Capacity | Array Size | 2.8 | kW | |
| Gen | Watts | Wh/min/kW | Factor | |||||||
| 1-May-15 | 10.7 | sun/cld mix | 3331 | 852 | 4.5 | 15.9% | Generation Analysis kWh | |||
| 2-May-15 | 17.6 | sun thn cld mix | 2513 | 854 | 7.4 | 26.2% | ||||
| 3-May-15 | 16.4 | sun thn cld mix | 2543 | 857 | 6.8 | 24.4% | Total | 420.7 | ||
| 4-May-15 | 6.8 | oc rain thn cld l8r | 2464 | 859 | 2.8 | 10.1% | Average | 13.6 | ||
| 5-May-15 | 9.3 | thn cld | 1562 | 862 | 3.9 | 13.8% | Median | 14.0 | ||
| 6-May-15 | 18.3 | sun | 2413 | 865 | 7.6 | 27.2% | Stdev | 4.4 | ||
| 7-May-15 | 17.5 | sun vry thn cld | 2203 | 867 | 7.2 | 26.0% | ||||
| 8-May-15 | 15.7 | sun thn cld | 2206 | 869 | 6.5 | 23.4% | WX short forms used | |||
| 9-May-15 | 13.6 | thn cld sun mix | 2399 | 872 | 5.6 | 20.2% | ||||
| 10-May-15 | 11.5 | cld sun brks | 2616 | 874 | 4.7 | 17.1% | oc - overcast | |||
| 11-May-15 | 7.9 | oc thn cld mix | 2177 | 876 | 3.2 | 11.8% | diff - diffuse light | |||
| 12-May-15 | 7.2 | sun cld mix | 2975 | 878 | 2.9 | 10.7% | brks - breaks | |||
| 13-May-15 | 10.2 | sun cld oc mix cool | 3584 | 881 | 4.1 | 15.2% | br - bright | |||
| 14-May-15 | 19.1 | sun cool | 2388 | 883 | 7.7 | 28.4% | cld - cloud | |||
| 15-May-15 | 6.3 | cld thn cld mix cool | 1992 | 885 | 2.5 | 9.4% | hi - high altitude | |||
| 16-May-15 | 13.9 | cld AM sun PM | 2576 | 887 | 5.6 | 20.7% | hz - haze pollution or cirrus | |||
| 17-May-15 | 18.3 | sun | 2231 | 889 | 7.4 | 27.2% | pds - periods | |||
| 18-May-15 | 14.0 | cld sun brks | 2642 | 891 | 5.6 | 20.8% | pt - part | |||
| 19-May-15 | 11.0 | cld sun brks cool | 3376 | 893 | 4.4 | 16.4% | wx - weather | |||
| 20-May-15 | 19.7 | sun cool windy | 2436 | 895 | 7.9 | 29.3% | sml - small | |||
| 21-May-15 | 18.0 | sun cool thn cld | 2556 | 897 | 7.2 | 26.8% | mod - moderate | |||
| 22-May-15 | 16.5 | pt cld AM sun PM | 3172 | 899 | 6.6 | 24.6% | ||||
| 23-May-15 | 19.5 | sun | 2355 | 901 | 7.7 | 29.0% | Peak Watt Analysis W | |||
| 24-May-15 | 14.3 | thn cld AM cld PM | 2629 | 903 | 5.7 | 21.3% | ||||
| 25-May-15 | 10.3 | thn cld cld mix | 2495 | 904 | 4.1 | 15.3% | Maximum | 3584 | ||
| 26-May-15 | 17.3 | thn cld | 2174 | 906 | 6.8 | 25.7% | Minimum | 952 | ||
| 27-May-15 | 14.2 | sun cld mix | 2566 | 908 | 5.6 | 21.1% | Average | 2497 | ||
| 28-May-15 | 17.6 | sun thn cld mix | 2473 | 909 | 6.9 | 26.2% | Median | 2473 | ||
| 29-May-15 | 14.0 | sun thn cld mix | 2454 | 910 | 5.5 | 20.8% | Std deviation | 504 | ||
| 30-May-15 | 9.6 | sun AM pt cld PM | 2952 | 912 | 3.8 | 14.3% | ||||
| 31-May-15 | 4.4 | oc rain | 952 | 913 | 1.7 | 6.5% | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 420.7 | 27451 | Capacity Factor Analysis | Maximum | 7.9 | |||||
| YTD: | 1617.4 | Minimum | 1.7 | |||||||
| High | 29.3% | Average | 5.5 | |||||||
| Low | 6.5% | Median | 5.6 | |||||||
| Average | 20.2% | Std Deviation | 1.8 | |||||||
| Median | 20.8% | |||||||||
| Std Dev | 6.6% | |||||||||
