Solar Data November 2010
This page contains both generation data and a graph for the month.

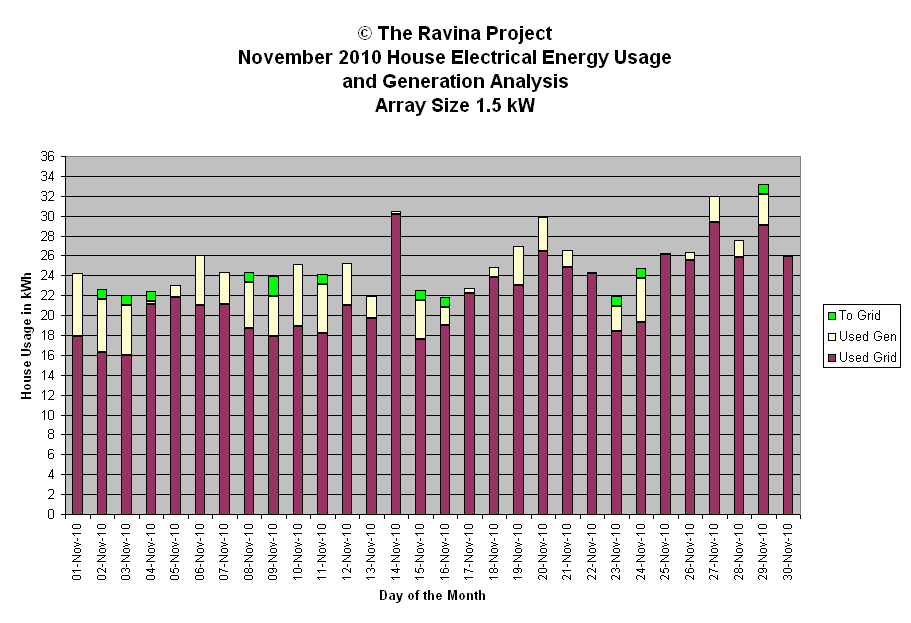

Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| November 2010 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Nov-10 | 6.3 | pristine sun cold | 1247 | 615 | 6.8 | Generation Analysis kWh | |||
| 2-Nov-10 | 6.3 | pristine sun cold | 1134 | 612 | 6.9 | ||||
| 3-Nov-10 | 6.0 | thn cld am sun pm | 1128 | 610 | 6.6 | Total | 96.6 | ||
| 4-Nov-10 | 1.3 | diffuse cold oc | 960 | 607 | 1.4 | Average | 3.2 | ||
| 5-Nov-10 | 1.2 | oc cold | 528 | 604 | 1.3 | Median | 3.3 | ||
| 6-Nov-10 | 5.0 | sun am pt sun pm | 1320 | 602 | 5.5 | Stdev | 2.2 | ||
| 7-Nov-10 | 3.2 | thn cld | 1446 | 600 | 3.6 | ||||
| 8-Nov-10 | 5.6 | thn cld | 1156 | 596 | 6.3 | WX short forms used | |||
| 9-Nov-10 | 6.0 | pristine sun | 1126 | 594 | 6.7 | ||||
| 10-Nov-10 | 6.2 | pristine sun | 1180 | 592 | 7.0 | oc - overcast | |||
| 11-Nov-10 | 5.9 | thn cld | 1150 | 589 | 6.7 | diff - diffuse light | |||
| 12-Nov-10 | 4.2 | oc early am, sun | 1268 | 587 | 4.8 | brks - breaks | |||
| 13-Nov-10 | 2.2 | oc fog am, sun thn cld pm | 1169 | 585 | 2.5 | br - bright | |||
| 14-Nov-10 | 0.3 | oc rain sun brks | 1337 | 582 | 0.3 | cld - cloud | |||
| 15-Nov-10 | 5.0 | sun cld pds | 1063 | 580 | 5.7 | hi - high altitude | |||
| 16-Nov-10 | 2.8 | thn cld am, diff oc pm | 977 | 578 | 3.2 | hz - haze pollution or cirrus | |||
| 17-Nov-10 | 0.5 | oc rain sun brks | 60 | 576 | 0.6 | pds - periods | |||
| 18-Nov-10 | 1.0 | cld sun brks | 1054 | 573 | 1.2 | pt - part | |||
| 19-Nov-10 | 3.9 | sun am, diff pm | 1293 | 572 | 4.5 | wx - weather | |||
| 20-Nov-10 | 3.4 | sun diff | 1281 | 570 | 4.0 | sml - small | |||
| 21-Nov-10 | 1.7 | oc sun brks | 1194 | 567 | 2.0 | mod - moderate | |||
| 22-Nov-10 | 0.1 | oc dull | 126 | 565 | 0.1 | ||||
| 23-Nov-10 | 3.6 | pt cld am, oc pm | 1307 | 564 | 4.3 | Peak Watt Analysis W | |||
| 24-Nov-10 | 5.5 | sun thn cld pm | 1171 | 562 | 6.5 | ||||
| 25-Nov-10 | 0.1 | dull oc | 65 | 560 | 0.1 | Maximum | 1446 | ||
| 26-Nov-10 | 0.8 | oc pt sun | 1141 | 558 | 1.0 | Minimum | 60 | ||
| 27-Nov-10 | 2.6 | oc early, pt cld pm | 1405 | 556 | 3.1 | Average | 1026 | ||
| 28-Nov-10 | 1.7 | early oc, sun pm | 1171 | 555 | 2.0 | Median | 1163 | ||
| 29-Nov-10 | 4.1 | thn cld | 1233 | 553 | 4.9 | Std deviation | 408 | ||
| 30-Nov-10 | 0.1 | oc rain | 104 | 552 | 0.1 | ||||
| Efficiency Analysis Wh/min/kW | |||||||||
| Monthly: | 17416 | ||||||||
| Maximum | 7.0 | ||||||||
| Minimum | 0.1 | ||||||||
| Average | 3.7 | ||||||||
| Median | 3.8 | ||||||||
| Std Deviation | 2.5 | ||||||||
