Solar Data October 2010

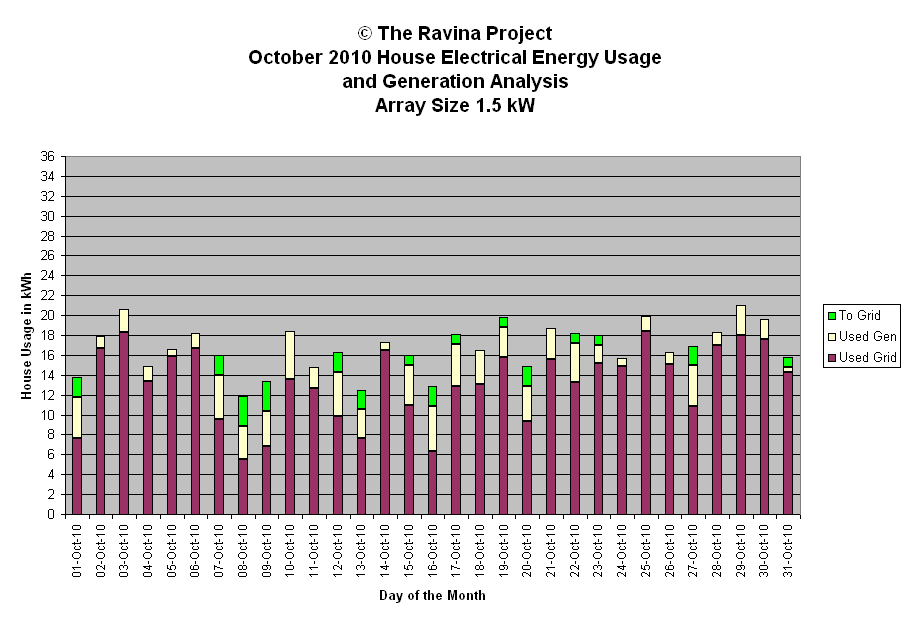

This page contains both generation data and a graph for the month.
Used Gen and Used Grid amounts in the chart show electrical energy used by the household from the solar array and the grid respectively. The To Grid amount represents the energy pushed back to the grid and not used by the household.
| October 2010 Power Generation Analysis | © The Ravina Project | ||||||||
| Day | kWh | Weather | Peak | Minutes | Efficiency | Array Size | 1.5 | kW | |
| Gen | Watts | Wh/min/kW | |||||||
| 1-Oct-10 | 6.2 | sun am pt cld pm | 1321 | 704 | 5.9 | Generation Analysis kWh | |||
| 2-Oct-10 | 1.2 | oc | 257 | 701 | 1.1 | ||||
| 3-Oct-10 | 2.3 | oc am sun late pm | 860 | 698 | 2.2 | Total | 109.7 | ||
| 4-Oct-10 | 1.5 | diff am oc pm | 568 | 695 | 1.4 | Average | 3.6 | ||
| 5-Oct-10 | 0.7 | oc rain | 722 | 691 | 0.7 | Median | 3.3 | ||
| 6-Oct-10 | 1.5 | oc am sun pm | 1092 | 689 | 1.5 | Stdev | 2.1 | ||
| 7-Oct-10 | 6.4 | pristine sun | 1165 | 686 | 6.2 | ||||
| 8-Oct-10 | 6.3 | pristine sun | 1098 | 683 | 6.1 | WX short forms used | |||
| 9-Oct-10 | 6.5 | pristine sun | 1143 | 680 | 6.4 | ||||
| 10-Oct-10 | 4.8 | sun cld diffuse | 1485 | 677 | 4.7 | oc - overcast | |||
| 11-Oct-10 | 2.2 | oc am diff pm | 1125 | 674 | 2.2 | diff - diffuse light | |||
| 12-Oct-10 | 6.4 | sun pt cld | 1463 | 671 | 6.4 | brks - breaks | |||
| 13-Oct-10 | 4.9 | sun am oc pm | 1216 | 669 | 4.9 | br - bright | |||
| 14-Oct-10 | 0.8 | oc diffuse | 887 | 665 | 0.8 | cld - cloud | |||
| 15-Oct-10 | 5.0 | sun thin cld | 1394 | 662 | 5.0 | hi - high altitude | |||
| 16-Oct-10 | 6.5 | sun | 1185 | 660 | 6.6 | hz - haze pollution or cirrus | |||
| 17-Oct-10 | 5.3 | sun thin cld, pt cld pm | 1427 | 657 | 5.4 | pds - periods | |||
| 18-Oct-10 | 3.4 | oc diffuse | 1090 | 654 | 3.5 | pt - part | |||
| 19-Oct-10 | 4.0 | pt cld | 1367 | 651 | 4.1 | wx - weather | |||
| 20-Oct-10 | 5.5 | thin cld am, pt cld pm | 1191 | 648 | 5.7 | sml - small | |||
| 21-Oct-10 | 3.1 | sun am cld pm | 1457 | 645 | 3.2 | mod - moderate | |||
| 22-Oct-10 | 4.9 | pt sun pt cld | 1523 | 643 | 5.1 | ||||
| 23-Oct-10 | 2.9 | pt cld am pt sun pm | 1222 | 639 | 3.0 | Peak Watt Analysis W | |||
| 24-Oct-10 | 0.8 | oc rain | 268 | 637 | 0.8 | ||||
| 25-Oct-10 | 1.5 | oc am diff pm | 631 | 634 | 1.6 | Maximum | 1624 | ||
| 26-Oct-10 | 1.2 | oc diffuse | 535 | 631 | 1.3 | Minimum | 257 | ||
| 27-Oct-10 | 6.1 | sun | 1103 | 628 | 6.5 | Average | 1091 | ||
| 28-Oct-10 | 1.3 | oc sun brks | 1501 | 626 | 1.4 | Median | 1154 | ||
| 29-Oct-10 | 3.0 | cld sun brks | 1624 | 622 | 3.2 | Std deviation | 369 | ||
| 30-Oct-10 | 2.0 | cld diffuse | 796 | 620 | 2.2 | ||||
| 31-Oct-10 | 1.5 | oc cld pt sun snow | 1531 | 618 | 1.6 | Efficiency Analysis Wh/min/kW | |||
| Monthly: | 20458 | Maximum | 6.6 | ||||||
| Minimum | 0.7 | ||||||||
| Average | 3.6 | ||||||||
| Median | 3.3 | ||||||||
| Std Deviation | 2.1 | ||||||||
